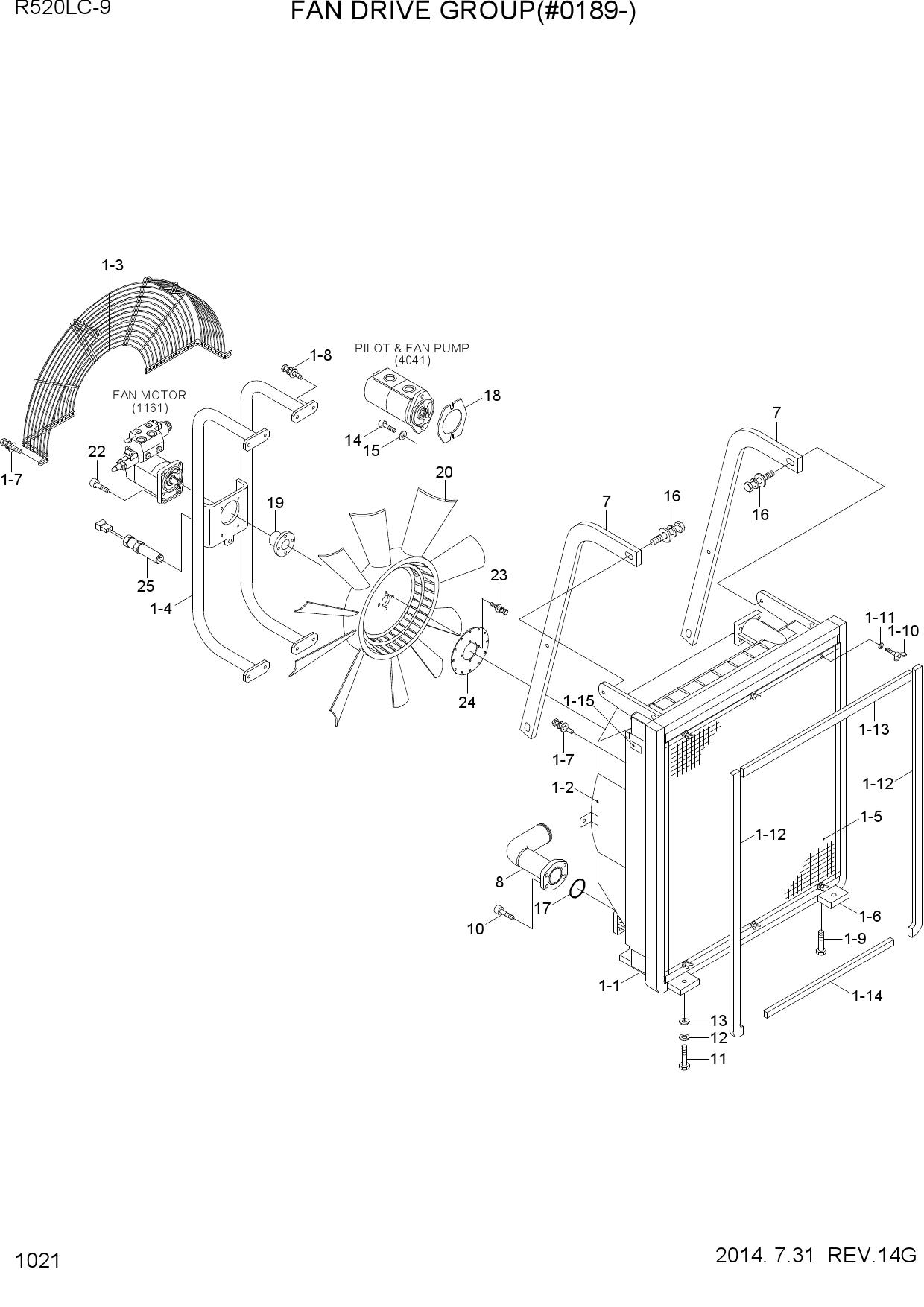

FAN DRIVE SYSTEM(#0189-)
1 11QB-61010
- 11QB-61010 - OIL COOLER TOTAL ASSY
- Поз.: 1
2 11QB-61020
- 11QB-61020 - OIL COOLER ASSY
- Поз.: 1-1
3 11QB-61031
- 11QB-61031 - SHROUD
- Поз.: 1-2
4 11QB-61041
- 11QB-61041 - GUARD-FAN
- Поз.: 1-3
5 11QB-61050
- 11QB-61050 - MOUNT-MOTOR
- Поз.: 1-4
6 11QB-61070
- 11QB-61070 - NET-WIRE
- Поз.: 1-5
7 11QB-61060
- 11QB-61060 - FRAME-SUPPORT
- Поз.: 1-6
8 AA000003
- AA000003 - BOLT-W/WASHER
- Поз.: 1-7
9 AC101421
- AC101421 - BOLT-W/WASHER
- Поз.: 1-8
10 AC100503
- AC100503 - BOLT-SOCKET HEX
- Поз.: 1-9
11 AC100392
- AC100392 - BOLT-WING
- Поз.: 1-10
12 AC100637
- AC100637 - WASHER-PLAIN
- Поз.: 1-11
13 AC101508
- AC101508 - SEALING-SIDE
- Поз.: 1-12
14 AC101509
- AC101509 - SEALING-TOP
- Поз.: 1-13
15 AC101510
- AC101510 - SEALING-BOTTOM
- Поз.: 1-14
16 AC101511
- AC101511 - NAME PLATE
- Поз.: 1-15
17 31QB-30130
- 31QB-30130 - PUMP-PILOT & FAN
- Поз.: 2
18 11QB-60051
- 11QB-60051 - STAY
- Поз.: 7
19 11QB-40291
- 11QB-40291 - PIPE ASSY
- Поз.: 8
20 S109-120356
- S109-120356 - BOLT-SOCKET
- Поз.: 10
21 S017-16040D
- S017-16040D - BOLT-HEX
- Поз.: 11
22 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 12
23 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 13
24 S109-120406
- S109-120406 - BOLT-SOCKET
- Поз.: 14
25 S403-12000B
- S403-12000B - WASHER-PLAIN
- Поз.: 15
26 S037-124026
- S037-124026 - BOLT-W/WASHER
- Поз.: 16
27 Y172-006004
- Y172-006004 - O-RING
- Поз.: 17
28 3008400
- 3008400 - GASKET-HYD PUMP
- Поз.: 18
29 11Q4-63090
- 11Q4-63090 - CONNECTOR
- Поз.: 19
30 11N8-46190
- 11N8-46190 - FAN
- Поз.: 20
31 11N8-46191
- 11N8-46191 - FAN
- Поз.: 20
32 31Q4-30202
- 31Q4-30202 - MOTOR-FAN
- Поз.: 21
33 S109-080306
- S109-080306 - BOLT-SOCKET
- Поз.: 22
34 S037-102056
- S037-102056 - BOLT-W/WASHER
- Поз.: 23
35 11Q4-43321
- 11Q4-43321 - PLATE
- Поз.: 24
36 21LM-08210
- 21LM-08210 - SENSOR-SPEED
- Поз.: 25
