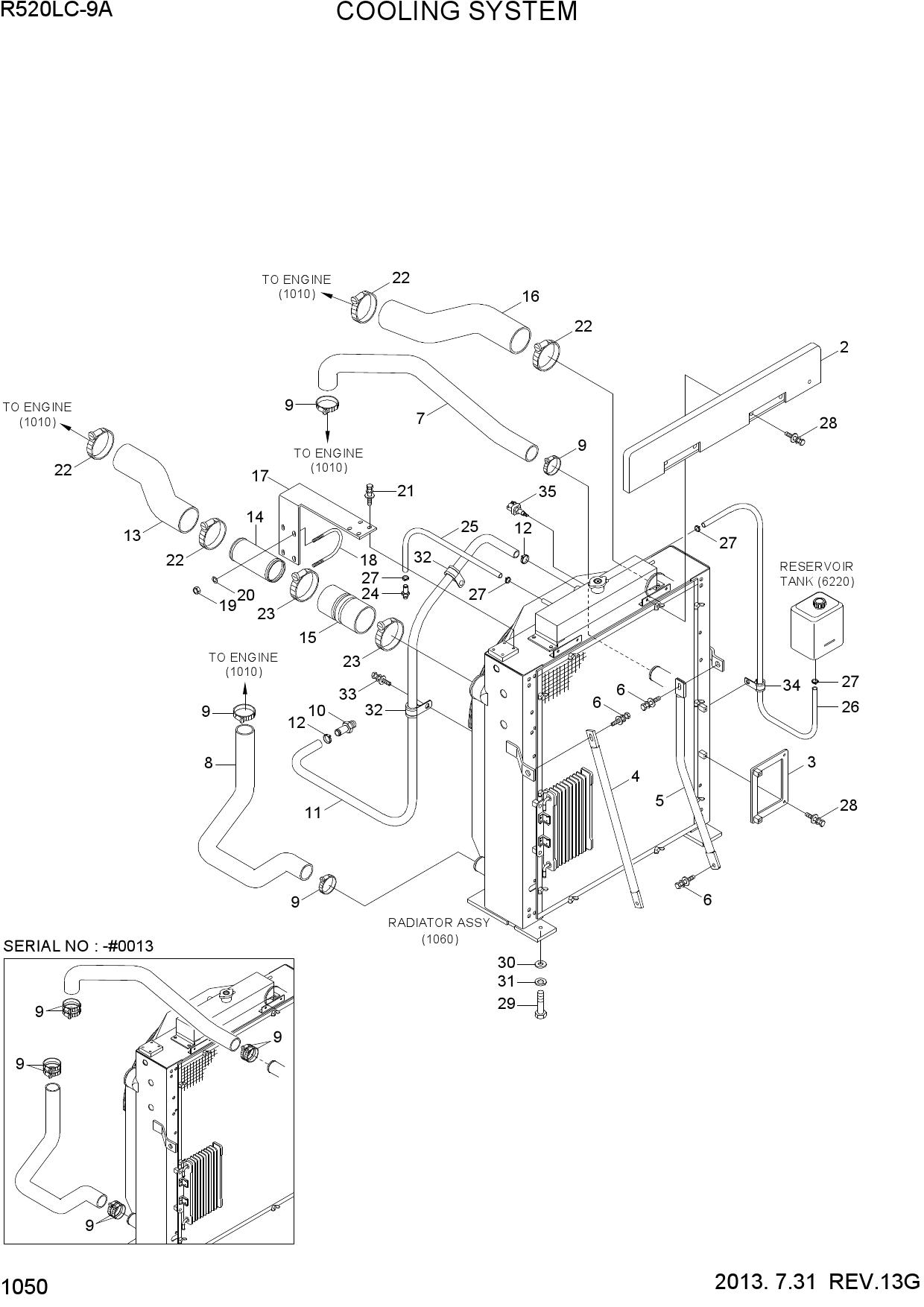

COOLING SYSTEM
1 11QB-44191
- 11QB-44191 - SCREEN ASSY
- Поз.: 2
2 11QB-44220
- 11QB-44220 - BRACKET
- Поз.: 3
3 11QB-44201
- 11QB-44201 - STAY
- Поз.: 4
4 11QB-44211
- 11QB-44211 - STAY
- Поз.: 5
5 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 6
6 11QB-44111
- 11QB-44111 - HOSE-RAD UPPER
- Поз.: 7
7 11QB-44121
- 11QB-44121 - HOSE-RAD LOWER
- Поз.: 8
8 S572-780006
- S572-780006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 9
9 11Q4-44300
- 11Q4-44300 - CLAMP
- Поз.: 9
10 11ND-41300
- 11ND-41300 - FITTING
- Поз.: 10
11 11QB-44180
- 11QB-44180 - HOSE-MAKE UP
- Поз.: 11
12 S520-035000
- S520-035000 - CLAMP-HOSE
- Поз.: 12
13 11QB-44230
- 11QB-44230 - HOSE-CAC
- Поз.: 13
14 11QB-44140
- 11QB-44140 - PIPE WA
- Поз.: 14
15 11QB-44161
- 11QB-44161 - HOSE-CAC
- Поз.: 16
16 11QB-44130
- 11QB-44130 - BRACKET
- Поз.: 17
17 11LH-40051
- 11LH-40051 - U-BOLT
- Поз.: 18
18 S275-12000B
- S275-12000B - NUT-SELF LOCKING
- Поз.: 19
19 S441-12000B
- S441-12000B - WASHER-HARDENED
- Поз.: 20
20 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 21
21 11N6-20410
- 11N6-20410 - CLAMP-BAND
- T-BOLT
- Поз.: 22
22 11LQ-30790
- 11LQ-30790 - CONNECTOR
- Поз.: 24
23 11QB-44170
- 11QB-44170 - HOSE-AIR VENT
- Поз.: 25
24 11Q6-40110
- 11Q6-40110 - HOSE-OVER FLOW
- Поз.: 26
25 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 27
26 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 28
27 S017-16050D
- S017-16050D - BOLT-HEX
- Поз.: 29
28 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 30
29 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 31
30 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 32
31 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 33
32 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 34
33 4928568
- 4928568 - SENSOR-COOLANT LEVEL
- Поз.: 35
