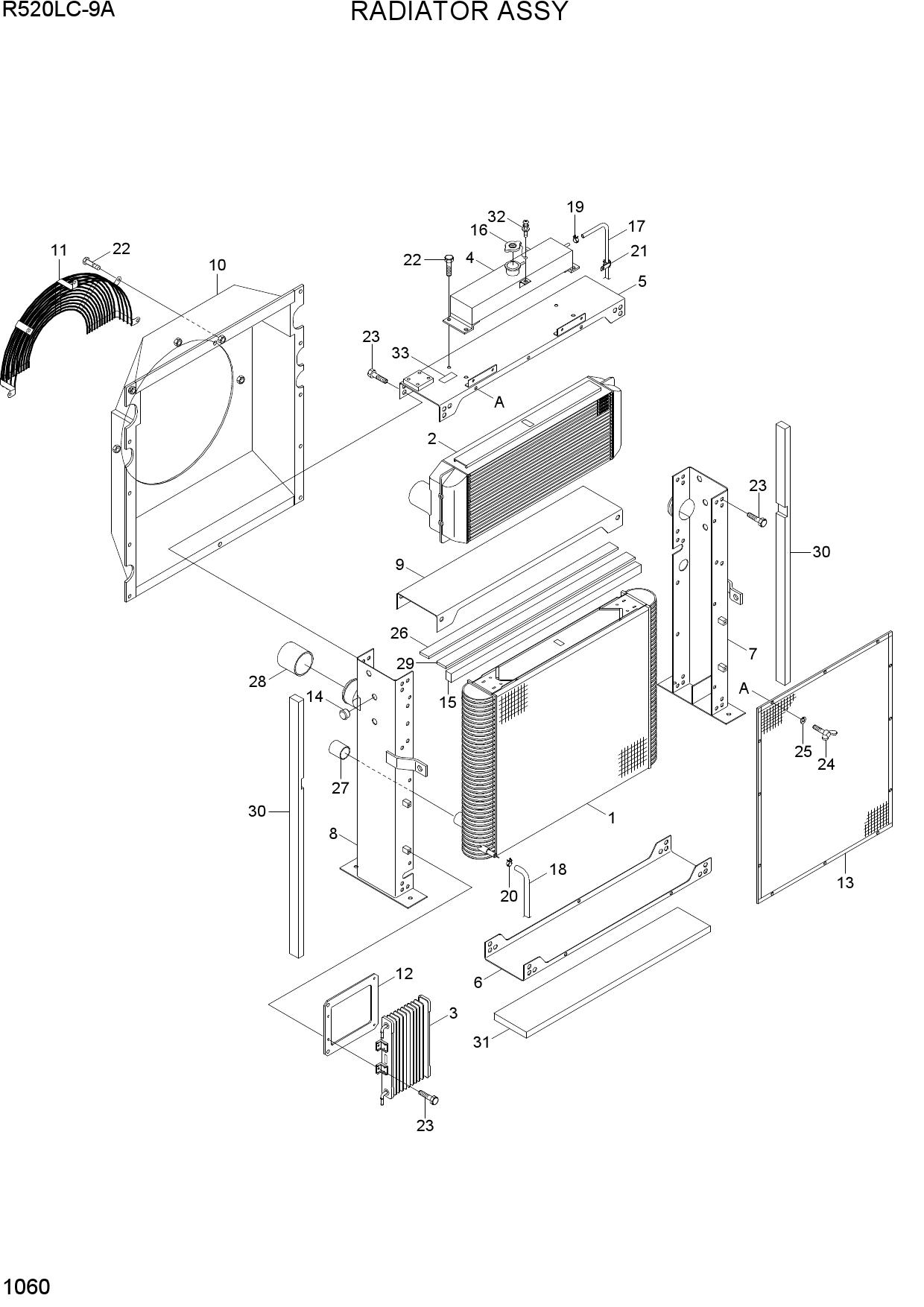

RADIATOR ASSY
1 11QB-44020
- 11QB-44020 - RADIATOR ASSY
- Поз.: 1
2 11QB-44030
- 11QB-44030 - AIR COOLER-CHARGE
- Поз.: 2
3 11QB-41041
- 11QB-41041 - COOLER-FUEL
- Поз.: 3
4 11QB-44040
- 11QB-44040 - TANK-SURGE
- Поз.: 4
5 11QB-44080
- 11QB-44080 - SUPPORT ASSY-TOP
- Поз.: 5
6 11QB-44090
- 11QB-44090 - SUPPORT ASSY-BOTTOM
- Поз.: 6
7 11QB-44100
- 11QB-44100 - SUPPORT ASSY-LEFT
- Поз.: 7
8 11QB-44250
- 11QB-44250 - SUPPORT ASSY-RIGHT
- Поз.: 8
9 11QB-44260
- 11QB-44260 - SUPPORT ASSY-MIDDLE
- Поз.: 1
10 11QB-44050
- 11QB-44050 - SHROUD ASSY
- Поз.: 10
11 11QB-44060
- 11QB-44060 - GUARD-FAN
- Поз.: 11
12 11QB-41290
- 11QB-41290 - BRACKET ASSY
- Поз.: 12
13 11QB-44070
- 11QB-44070 - NET-WIRE
- Поз.: 13
14 AC100366
- AC100366 - ISOLATOR-5ROW
- Поз.: 15
15 11N4-49480
- 11N4-49480 - CAP
- Поз.: 16
16 AC105234
- AC105234 - HOSE-OVER FLOW
- Поз.: 17
17 AC101376
- AC101376 - HOSE-DRAIN
- Поз.: 18
18 AC100734
- AC100734 - CLIP-HOSE
- Поз.: 19
19 AC101458
- AC101458 - CLIP-HOSE
- Поз.: 20
20 3CC4162Z-2
- 3CC4162Z-2 - CLAMP-O/FLOW HOSE
- Поз.: 21
21 AA000003
- AA000003 - BOLT-W/WASHER
- Поз.: 22
22 AC100938
- AC100938 - BOLT-W/WASHER
- Поз.: 23
23 AC100392
- AC100392 - BOLT-WING
- Поз.: 24
24 AC100637
- AC100637 - WASHER-PLAIN
- Поз.: 25
25 AC102540
- AC102540 - SEALING-RAD SIDE
- Поз.: 26
26 AC102541
- AC102541 - SEALING-RAD TANK
- Поз.: 27
27 AC102542
- AC102542 - SEALING-CAC TANK
- Поз.: 28
28 AC102543
- AC102543 - SEALING-CAC SIDE
- Поз.: 29
29 AC102544
- AC102544 - SEALING-MODULE SIDE
- Поз.: 30
30 AC102545
- AC102545 - SEALING-M/BOTTOM
- Поз.: 31
31 AA000009B
- AA000009B - BOLT
- Поз.: 32
32 AC102546
- AC102546 - NAME PLATE
- Поз.: 33
