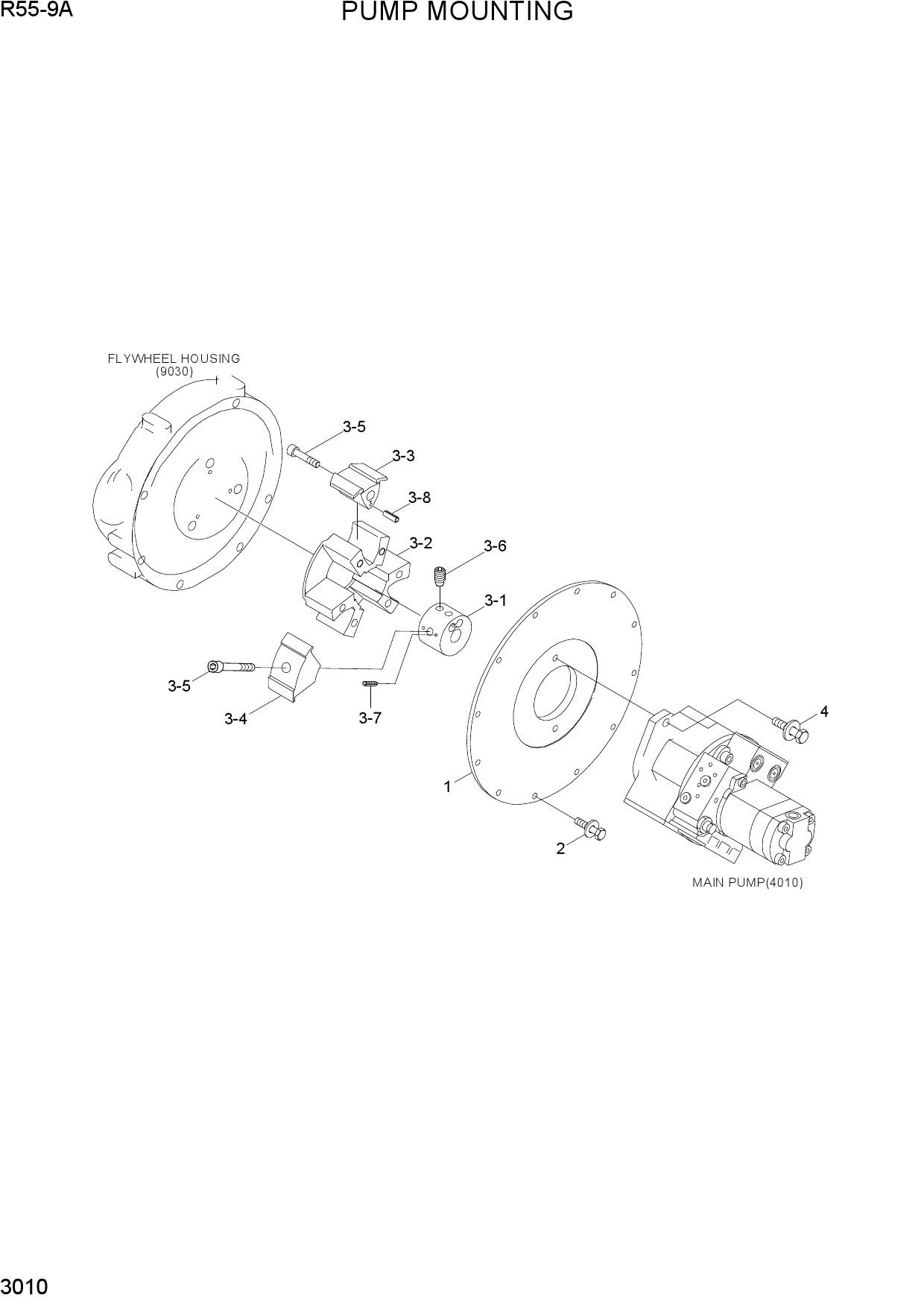

PUMP MOUNTING
1 11M9-10000
- 11M9-10000 - HOUSING-PUMP
- Поз.: 1
2 S037-102556
- S037-102556 - BOLT-W/WASHER
- Поз.: 2
3 11M9-00100
- 11M9-00100 - COUPLING ASSY
- Поз.: 3
4 11M8-10020
- 11M8-10020 - HUB-SPLINE
- Поз.: 3-1
5 11M9-00110
- 11M9-00110 - ELEMENT-COUPLING
- Поз.: 3-2
6 11M9-00120
- 11M9-00120 - INSERT-A
- Поз.: 3-3
7 11M9-00130
- 11M9-00130 - INSERT-R
- Поз.: 3-4
8 S109-140406
- S109-140406 - BOLT-SOCKET
- Поз.: 3-5
9 11M8-10060
- 11M8-10060 - CLAMP BOLT-25H
- Поз.: 3-6
10 S472-500106
- S472-500106 - PIN-SPRING
- Поз.: 3-7
11 S472-500226
- S472-500226 - PIN-SPRING
- Поз.: 3-8
12 S037-123556
- S037-123556 - BOLT-W/WASHER
- Поз.: 4
