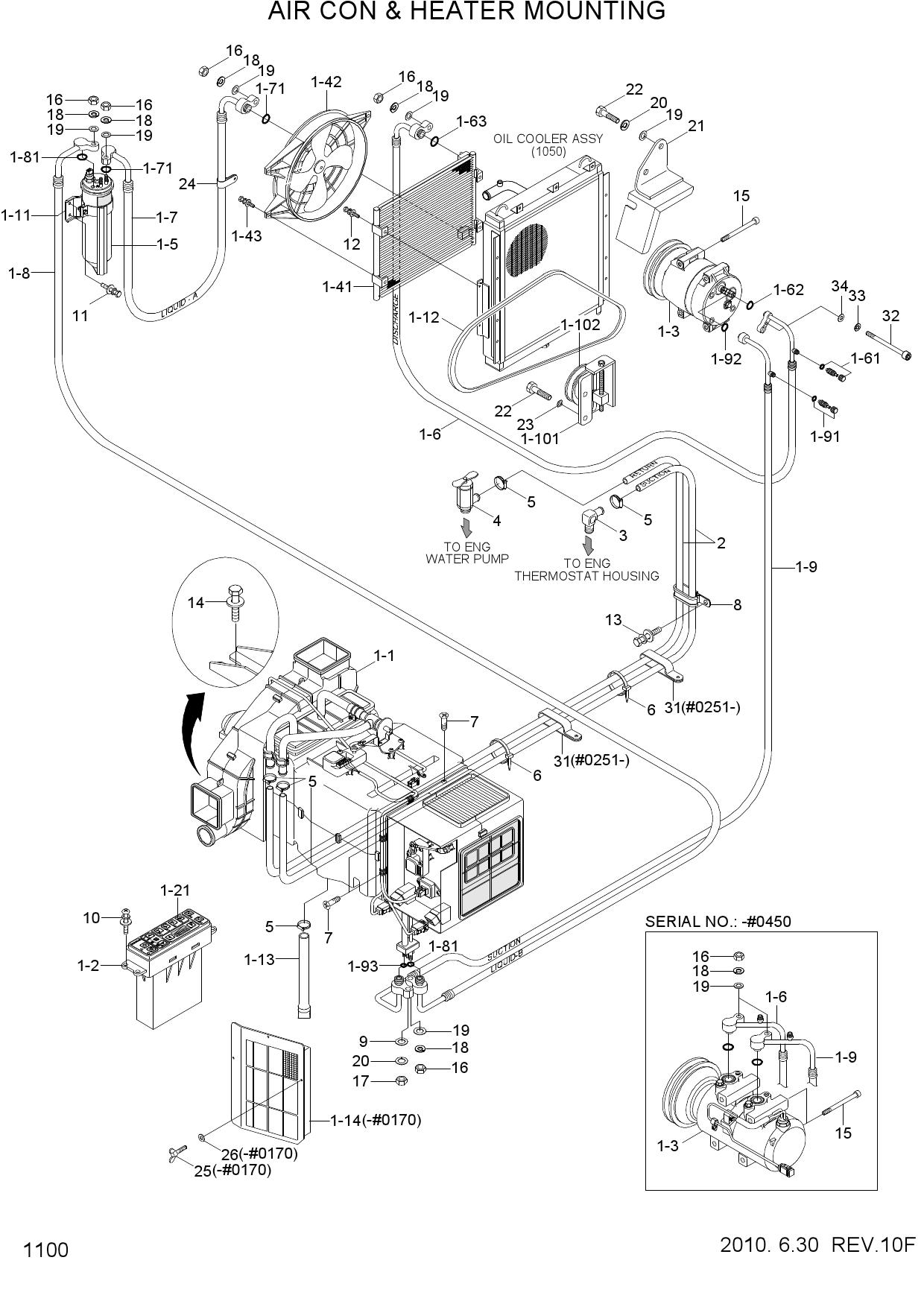

AIRCON & HEATER MOUNTING
1 11N1-90010
- 11N1-90010 - AIR CON & HEATER ASSY
- Поз.: 1
2 11N6-90020
- 11N6-90020 - AIRCON & HEATER UNIT
- Поз.: 1-1
3 11N6-90021
- 11N6-90021 - AIRCON & HEATER UNIT
- Поз.: 1-1
4 11N6-90031
- 11N6-90031 - CONTROL ASSY-SEMI
- Поз.: 1-2
5 11N6-90850
- 11N6-90850 - DECAL-A/C & HEATER
- Поз.: 1-21
6 11N8-92040
- 11N8-92040 - COMPRESSOR ASSY
- Поз.: 1-3
7 11Q6-90040
- 11Q6-90040 - COMPRESSOR ASSY
- Поз.: 1-3
8 11LC-90110
- 11LC-90110 - CONDENSER ASSY
- Поз.: 1-4
9 A2100589000
- A2100589000 - CONDENSER
- Поз.: 1-41
10 A2W00594
- A2W00594 - FAN & MOTOR ASSY
- Поз.: 1-42
11 A411350201B1
- A411350201B1 - FAN ASSY
- Поз.: 1-42-1
12 A2W00595
- A2W00595 - MOTOR ASSY
- Поз.: 1-42-2
13 A285051700A0
- A285051700A0 - SHROUD
- Поз.: 1-42-3
14 A8900105073
- A8900105073 - BOLT-W/WASHER
- Поз.: 1-43
15 11N6-90060
- 11N6-90060 - DRIER-RECEIVER
- Поз.: 1-5
16 11N1-90190
- 11N1-90190 - HOSE-DISCHARGE
- Поз.: 1-6
17 11N1-90191
- 11N1-90191 - HOSE-DISCHARGE
- Поз.: 1-6
18 A304000301-4
- A304000301-4 - CHARGE VALVE ASSY
- Поз.: 1-61
19 A305000206-2
- A305000206-2 - O-RING
- Поз.: 1-62
20 A305000205-2
- A305000205-2 - O-RING
- Поз.: 1-63
21 11N1-90210
- 11N1-90210 - HOSE(A)-LIQUID
- Поз.: 1-7
22 A305000209-2
- A305000209-2 - O-RING
- Поз.: 1-71
23 11N1-90140
- 11N1-90140 - HOSE-LIQUID(B)
- Поз.: 1-8
24 A305000209-2
- A305000209-2 - O-RING
- Поз.: 1-81
25 11N1-90150
- 11N1-90150 - HOSE-SUCTION
- Поз.: 1-9
26 11N1-90151
- 11N1-90151 - HOSE-SUCTION
- Поз.: 1-9
27 A304000401-4
- A304000401-4 - CHARGE VALVE ASSY
- Поз.: 1-91
28 A310069299-2
- A310069299-2 - O-RING
- Поз.: 1-92
29 A305000203-2
- A305000203-2 - O-RING
- Поз.: 1-93
30 11N1-90180
- 11N1-90180 - PULLEY-TENSION
- Поз.: 1-10
31 11N1-90180
- 11N1-90180 - PULLEY-TENSION
- Поз.: 1-101
32 A4700-511-01-2
- A4700-511-01-2 - PULLEY-IDLE
- Поз.: 1-102
33 11N6-90120
- 11N6-90120 - BRACKET-R/DRIER
- Поз.: 1-11
34 11N1-90160
- 11N1-90160 - V-BELT
- Поз.: 1-12
35 11N4-92110
- 11N4-92110 - V-BELT
- Поз.: 1-12
36 11EK-92090
- 11EK-92090 - HOSE-DRAIN
- Поз.: 1-13
37 11N6-90340
- 11N6-90340 - FILTER-REC
- Поз.: 1-14
38 11E6-92080
- 11E6-92080 - HOSE
- Поз.: 2
39 11N1-90201
- 11N1-90201 - ELBOW
- Поз.: 3
40 14L1-01370
- 14L1-01370 - VALVE-HEATER
- Поз.: 4
41 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 5
42 S551-035146
- S551-035146 - TIE-WIRE
- Поз.: 6
43 S152-040122
- S152-040122 - SCREW-TAPPING
- Поз.: 7
44 S543-400002
- S543-400002 - CLAMP-TUBE
- Поз.: 8
45 S403-082002
- S403-082002 - WASHER-PLAIN
- Поз.: 9
46 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 10
47 S035-061522
- S035-061522 - BOLT-W/WASHER
- Поз.: 11
48 S035-082022
- S035-082022 - BOLT-W/WASHER
- Поз.: 12
49 S037-102022
- S037-102022 - BOLT-W/WASHER
- Поз.: 13
50 S037-123022
- S037-123022 - BOLT-W/WASHER
- Поз.: 14
51 S105-080956
- S105-080956 - BOLT-SOCKET
- Поз.: 15
52 S109-080856
- S109-080856 - BOLT-SOCKET
- Поз.: 15
53 S203-061002
- S203-061002 - NUT-HEX
- Поз.: 16
54 S203-081002
- S203-081002 - NUT-HEX
- Поз.: 17
55 S411-060002
- S411-060002 - WASHER-SPRING
- Поз.: 18
56 S403-062002
- S403-062002 - WASHER-PLAIN
- Поз.: 19
57 S411-080002
- S411-080002 - WASHER-SPRING
- Поз.: 20
58 11M8-90230
- 11M8-90230 - COVER
- Поз.: 21
59 S017-080502
- S017-080502 - BOLT-HEX
- Поз.: 22
60 S441-080002
- S441-080002 - WASHER-HARDENED
- Поз.: 23
61 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 24
62 S091-060156
- S091-060156 - BOLT-WING
- Поз.: 25
63 S403-061006
- S403-061006 - WASHER-PLAIN
- Поз.: 26
64 31L6-02460
- 31L6-02460 - CLAMP-TUBE
- Поз.: 31
65 S018-100356
- S018-100356 - BOLT-HEX
- Поз.: 32
66 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 33
67 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 34
