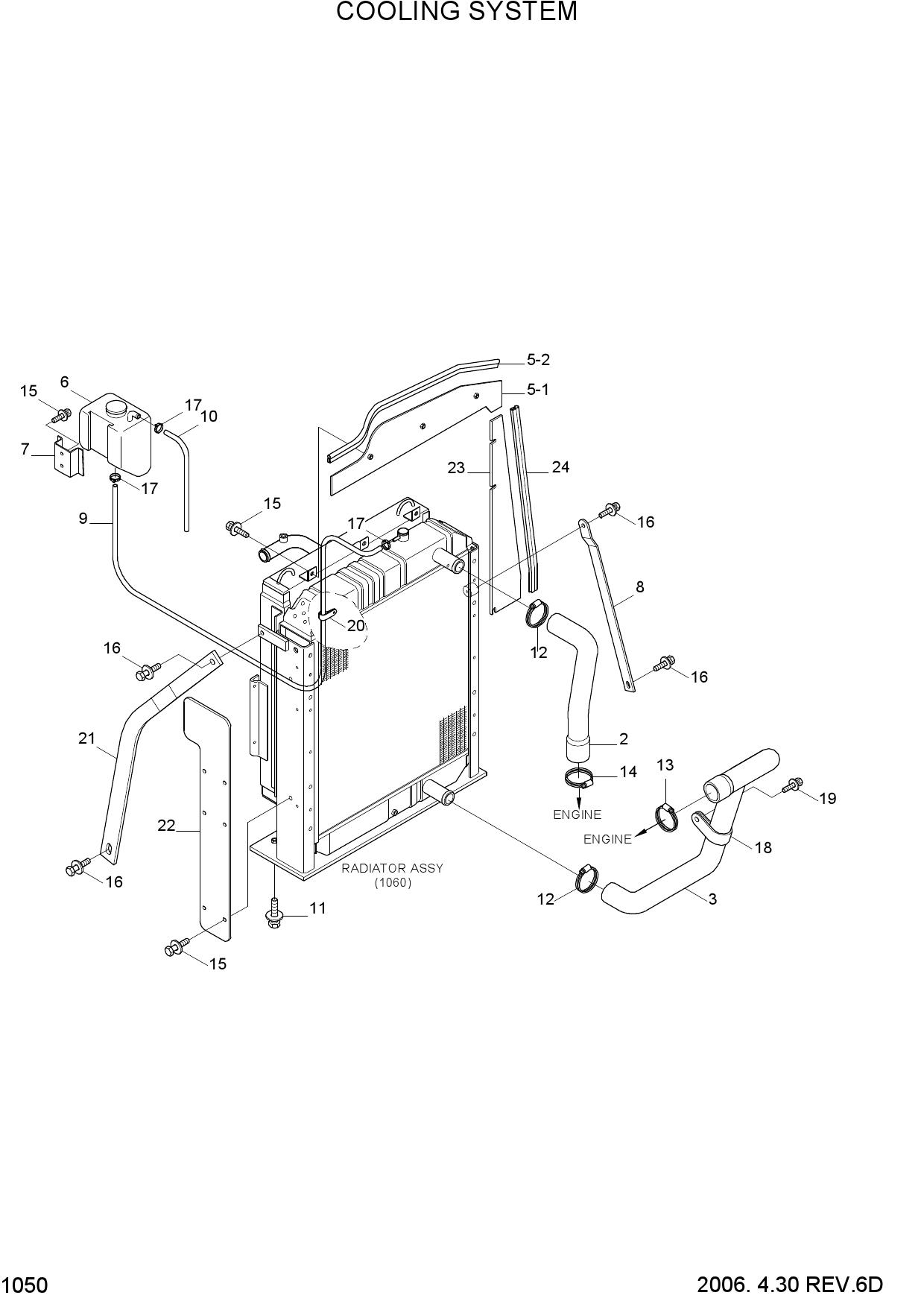

COOLING SYSTEM
1 11M8-40200
- 11M8-40200 - HOSE
- Поз.: 2
2 11M8-40210
- 11M8-40210 - HOSE
- Поз.: 3
3 11N1-40111
- 11N1-40111 - SCREEN ASSY
- Поз.: 5
4 S772-007300
- S772-007300 - WEATHER STRIP
- Поз.: 5-2
5 11M6-52330
- 11M6-52330 - TANK-RESERVOIR
- Поз.: 6
6 11N1-40140
- 11N1-40140 - BRACKET
- Поз.: 7
7 11N1-40201
- 11N1-40201 - BRACKET
- Поз.: 8
8 11N1-40220
- 11N1-40220 - HOSE
- Поз.: 9
9 11M6-52350
- 11M6-52350 - HOSE
- Поз.: 10
10 S037-123552
- S037-123552 - BOLT-W/WASHER
- Поз.: 11
11 S572-450006
- S572-450006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 12
12 S572-490006
- S572-490006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 13
13 S572-510006
- S572-510006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 14
14 S035-081522
- S035-081522 - BOLT-W/WASHER
- Поз.: 15
15 S037-122052
- S037-122052 - BOLT-W/WASHER
- Поз.: 16
16 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 17
17 31E7-0311
- 31E7-0311 - CLAMP-HOSE
- Поз.: 18
18 S037-121552
- S037-121552 - BOLT-W/WASHER
- Поз.: 19
19 S542-200002
- S542-200002 - CLAMP-TUBE
- Поз.: 20
20 11N1-40230
- 11N1-40230 - BRACKET
- Поз.: 21
21 11N1-40240
- 11N1-40240 - SCREEN
- Поз.: 22
22 11N1-40130
- 11N1-40130 - SCREEN
- Поз.: 23
23 11N1-40180
- 11N1-40180 - SCREEN PLATE
- Поз.: 23
24 S773-010000
- S773-010000 - WEATHER STRIP
- Поз.: 24
