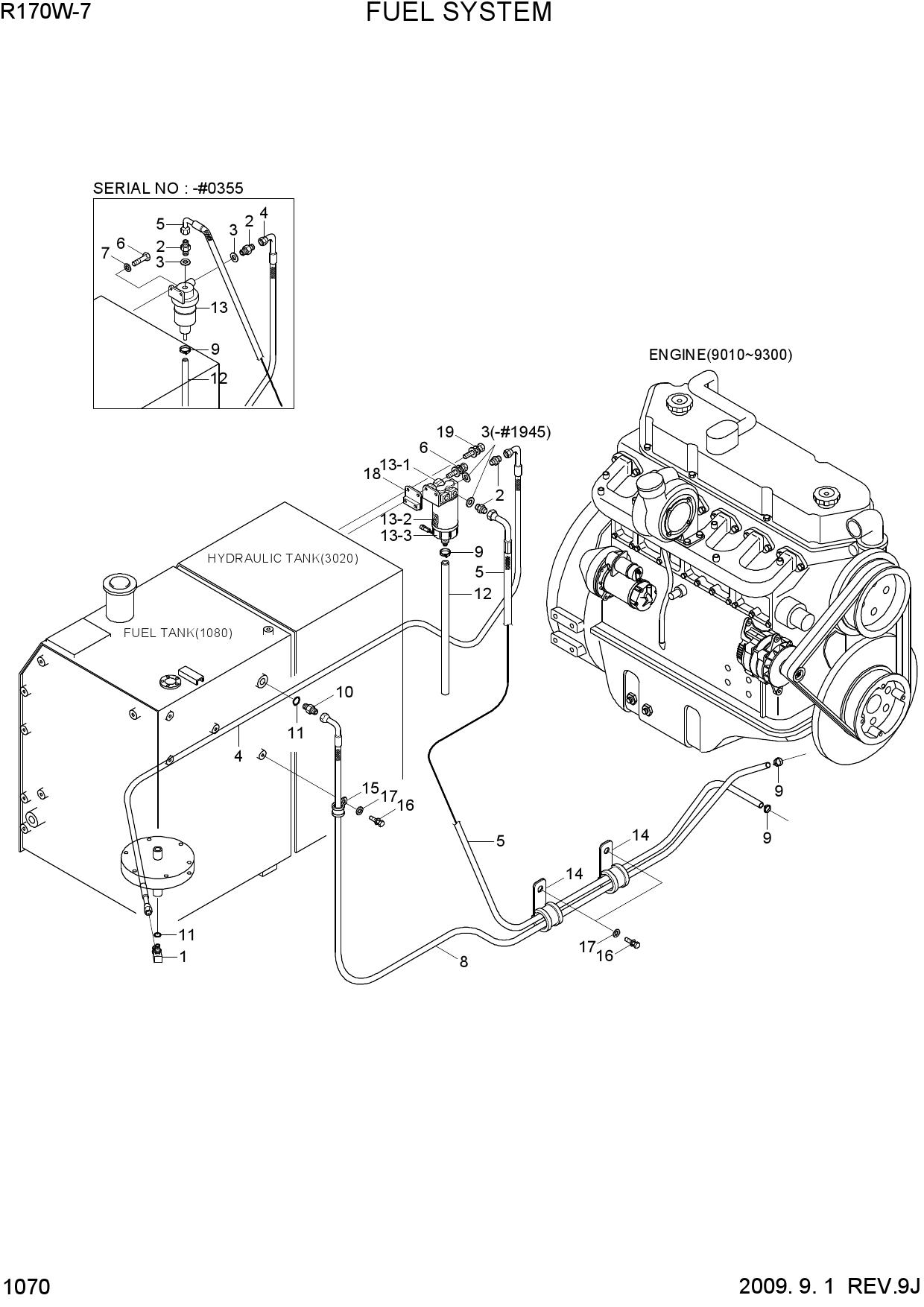

FUEL SYSTEM
1 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 1
2 11N6-50010
- 11N6-50010 - CONNECTOR
- Поз.: 2
3 11NA-50040
- 11NA-50040 - CONNECTOR
- Поз.: 2
4 11QB-50040
- 11QB-50040 - CONNECTOR
- Поз.: 2
5 P392-140000
- P392-140000 - WASHER-COPPER
- Поз.: 3
6 P392-160000
- P392-160000 - WASHER-COPPER
- Поз.: 3
7 11N4-50010
- 11N4-50010 - HOSE-FUEL
- Поз.: 4
8 11N5-50020
- 11N5-50020 - HOSE ASSY-FUEL
- Поз.: 5
9 S015-080202
- S015-080202 - BOLT-HEX
- Поз.: 6
10 S035-083022
- S035-083022 - BOLT-W/WASHER
- Поз.: 6
11 S403-082002
- S403-082002 - WASHER-PLAIN
- Поз.: 7
12 11N5-50030
- 11N5-50030 - HOSE-FUEL
- Поз.: 8
13 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 9
14 P020-110014
- P020-110014 - ELBOW-90
- Поз.: 10
15 S631-018001
- S631-018001 - O-RING
- Поз.: 11
16 11N8-50111
- 11N8-50111 - HOSE ASSY
- Поз.: 12
17 11N8-50112
- 11N8-50112 - HOSE ASSY
- Поз.: 12
18 11N1-50020
- 11N1-50020 - HOSE ASSY
- Поз.: 12
19 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 12
20 11EM-52320
- 11EM-52320 - WATER SEPARATOR
- Поз.: 13
21 11LB-20300
- 11LB-20300 - PREFILTER ASSY
- Поз.: 13
22 11NB-70400
- 11NB-70400 - PREFILTER ASSY
- Поз.: 13
23 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 13-1
24 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 13-2
25 11LD-20260
- 11LD-20260 - BOWL ASSY-W/KNOB
- Поз.: 13-3
26 11NB-70410
- 11NB-70410 - BOWL ASSY-W/HEATER
- Поз.: 13-3
27 11NB-70420
- 11NB-70420 - GASKET-DRAIN KNOB
- Поз.: 13-3-1
28 S543-320002
- S543-320002 - CLAMP-TUBE
- Поз.: 14
29 S543-200002
- S543-200002 - CLAMP-TUBE
- Поз.: 15
30 S017-100152
- S017-100152 - BOLT-HEX
- Поз.: 16
31 S403-101002
- S403-101002 - WASHER-PLAIN
- Поз.: 17
32 11N8-53040
- 11N8-53040 - BRACKET
- Поз.: 18
33 S035-082022
- S035-082022 - BOLT-W/WASHER
- Поз.: 19
34 11LB-20300
- 11LB-20300 - PREFILTER ASSY
- Поз.: 20
35 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 20-1
36 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 20-2
37 11LD-20260
- 11LD-20260 - BOWL ASSY-W/KNOB
- Поз.: 20-3
38 11N8-50070
- 11N8-50070 - PLUG
- Поз.: 21
