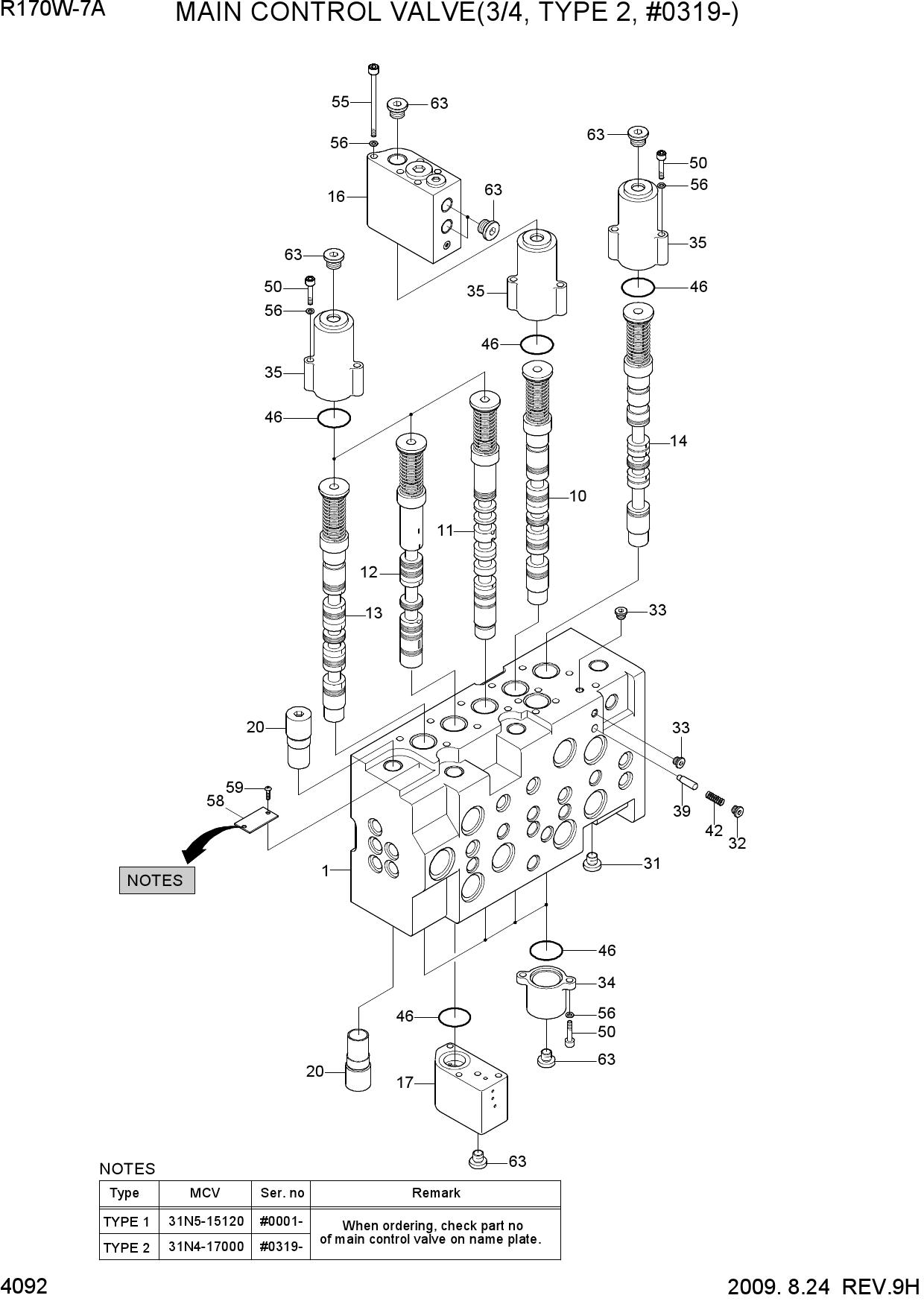

MAIN CONTROL VALVE(3/4, TYPE 2, #0319-)
1 31N4-17670
- 31N4-17670 - BOOM SPOOL ASSY
- Поз.: 10
2 31N4-17700
- 31N4-17700 - ARM2 SPOOL ASSY
- Поз.: 11
3 31N4-17720
- 31N4-17720 - ARM REGEN SPOOL ASSY
- Поз.: 12
4 31N4-17740
- 31N4-17740 - BUCKET SPOOL ASSY
- Поз.: 13
5 31N4-17650
- 31N4-17650 - DOZER SPOOL ASSY
- Поз.: 14
6 31N4-17750
- 31N4-17750 - HOLDING V/V ASSY
- Поз.: 16
7 31N4-17780
- 31N4-17780 - REGEN V/V ASSY
- Поз.: 17
8 31N4-17870
- 31N4-17870 - NEGACON VALVE COMP
- Поз.: 20
9 31N4-17900
- 31N4-17900 - PLUG KIT
- Поз.: 32
10 31N8-18680
- 31N8-18680 - PLUG
- Поз.: 33
11 31N4-17930
- 31N4-17930 - PILOT COVER A
- Поз.: 34
12 31N4-17940
- 31N4-17940 - PILOT COVER B1
- Поз.: 35
13 31N8-18530
- 31N8-18530 - POPPET-SIGNAL
- Поз.: 39
14 31N8-18540
- 31N8-18540 - SPRING-SIGNAL
- Поз.: 42
15 31N4-18610
- 31N4-18610 - O-RING
- Поз.: 46
16 S107-060404
- S107-060404 - BOLT-SOCKET
- Поз.: 50
17 S107-121204
- S107-121204 - BOLT-SOCKET
- Поз.: 55
18 S411-060006
- S411-060006 - WASHER-SPRING
- Поз.: 56
19 31N8-19460
- 31N8-19460 - CAP-DUST
- Поз.: 63
