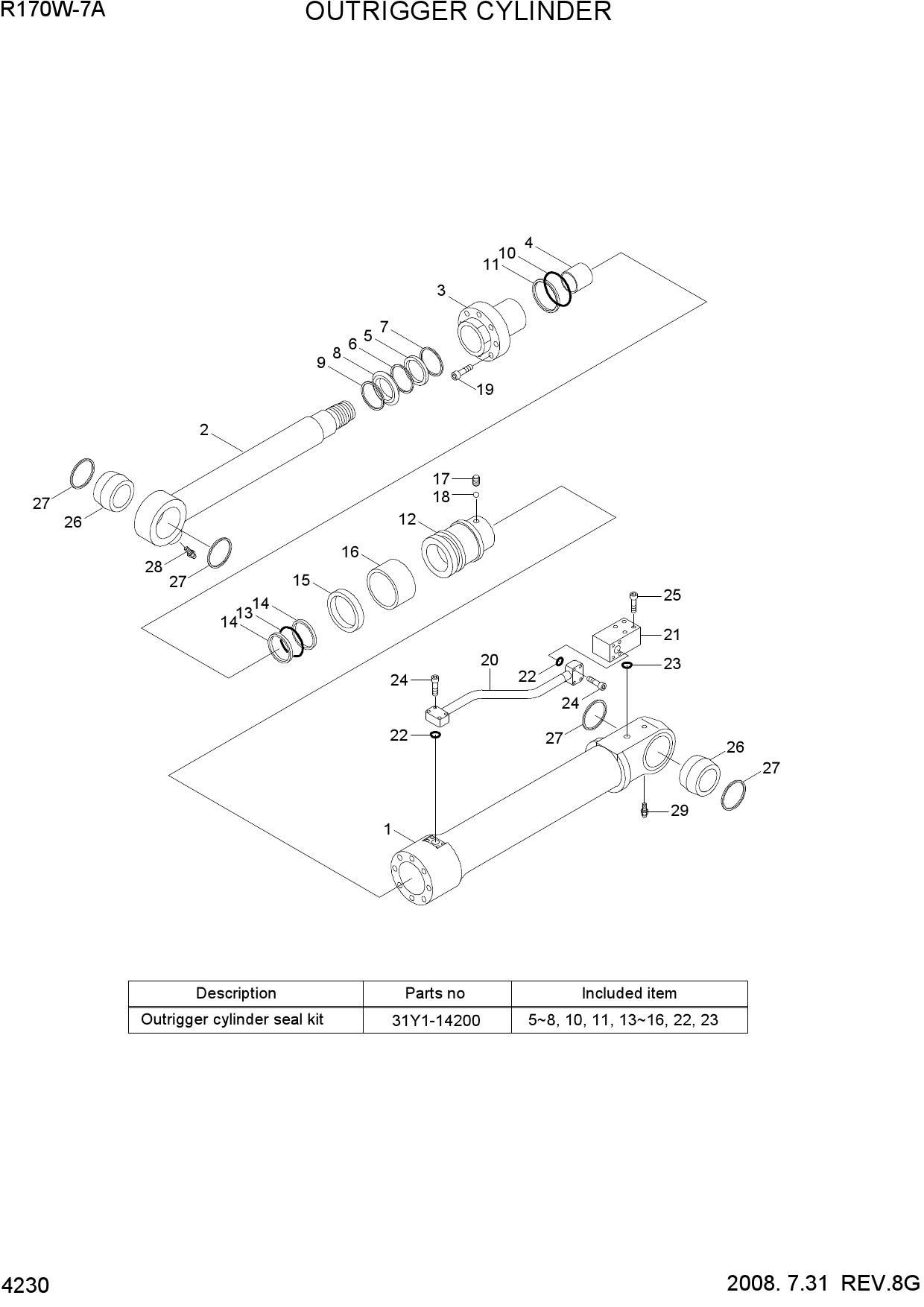

OUTRIGGER CYLINDER
1 31Y1-14150
- 31Y1-14150 - TUBE ASSY
- Поз.: 1
2 31Y1-04670
- 31Y1-04670 - ROD ASSY
- Поз.: 2
3 31Y1-14170
- 31Y1-14170 - GLAND
- Поз.: 3
4 S731-075040
- S731-075040 - BUSHING-DU
- Поз.: 4
5 31Y1-04710
- 31Y1-04710 - PISTON
- Поз.: 12
6 S113-080104
- S113-080104 - SCREW-SET
- Поз.: 17
7 Y890-015011
- Y890-015011 - BALL-STEEL
- Поз.: 18
8 S109-160554
- S109-160554 - BOLT-SOCKET
- Поз.: 19
9 31YC-12220
- 31YC-12220 - BUSHING-PIN
- Поз.: 26
10 S700-075205
- S700-075205 - SEAL-DUST
- Поз.: 27
11 S651-810002
- S651-810002 - NIPPLE-GREASE
- Поз.: 28
12 S112-120124
- S112-120124 - SCREW-SET HEX SOCKET
- Поз.: 29
13 31Y1-14180
- 31Y1-14180 - PIPE ASSY(R)-LH
- Поз.: 20
14 31Y1-14190
- 31Y1-14190 - PIPE ASSY(R)-RH
- Поз.: 20
15 35EA-70320
- 35EA-70320 - CHECK VALVE-DOUBLE
- Поз.: 21
16 31N4-75020
- 31N4-75020 - CHECK VALVE-DOUBLE
- RH
- Поз.: 21
17 35EA-70310
- 35EA-70310 - CHECK VALVE-DOUBLE
- Поз.: 21
18 31N4-75010
- 31N4-75010 - CHECK VALVE-DOUBLE
- LH
- Поз.: 21
19 S107-080404
- S107-080404 - BOLT-SOCKET
- Поз.: 24
20 S107-100604
- S107-100604 - BOLT-SOCKET
- Поз.: 25
