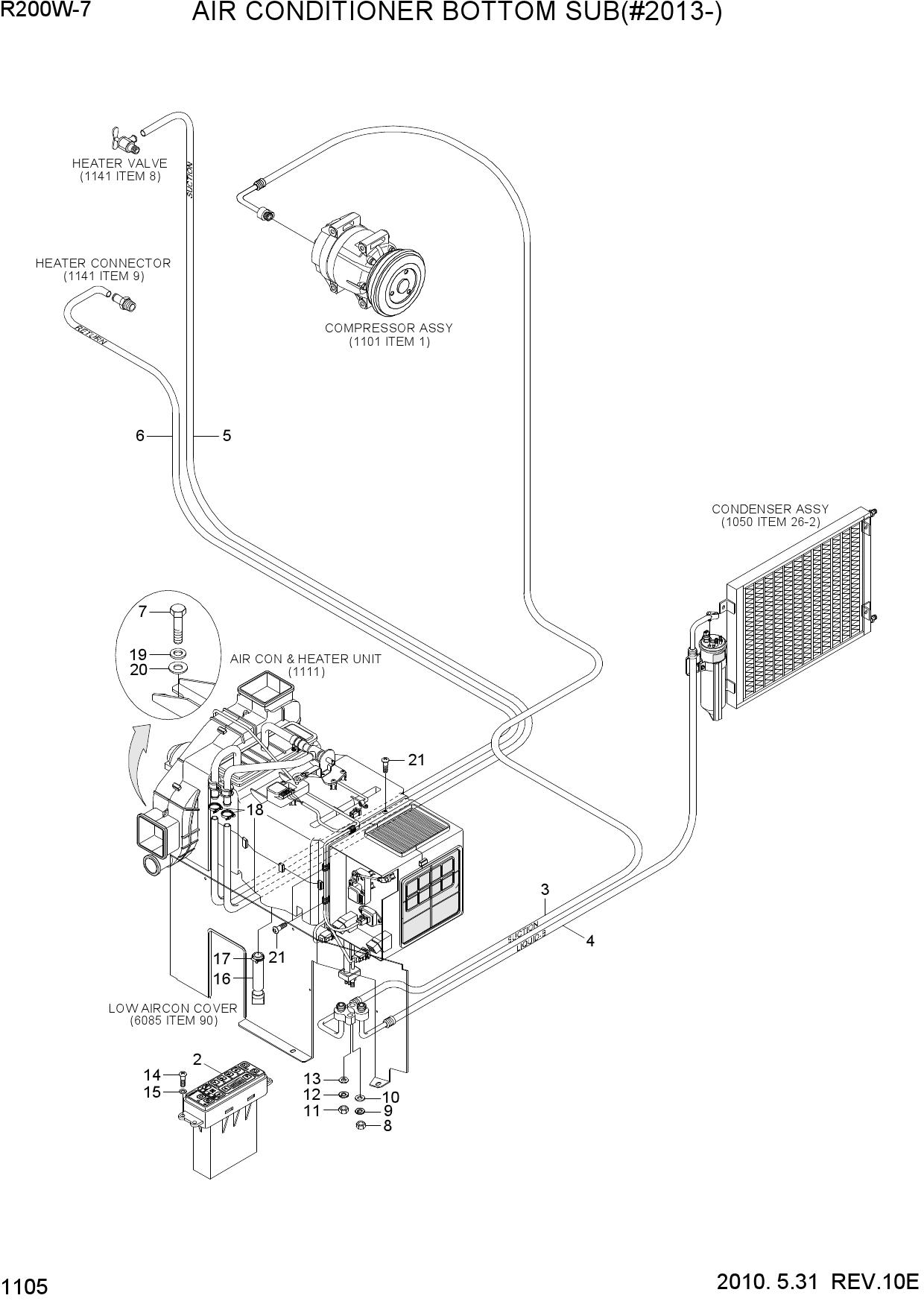

AIR CONDITIONER BOTTOM SUB(#2013-)
1 11N6-90031
- 11N6-90031 - CONTROL ASSY-SEMI
- Поз.: 2
2 11N6-90331
- 11N6-90331 - CONTROL ASSY
- Поз.: 2
3 11N6-90431
- 11N6-90431 - CONTROL ASSY-FATC
- Поз.: 2
4 11N6-91120
- 11N6-91120 - SUC HOSE ASSY
- Поз.: 3
5 11N8-90050
- 11N8-90050 - HOSE(B)-LIQUID
- Поз.: 4
6 11N4-92040
- 11N4-92040 - HOSE-RETURN
- Поз.: 5
7 11EK-92070
- 11EK-92070 - HOSE-HEATER
- Поз.: 6
8 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 7
9 S205-06100B
- S205-06100B - NUT-HEX
- Поз.: 8
10 S411-060006
- S411-060006 - WASHER-SPRING
- Поз.: 9
11 S403-06200B
- S403-06200B - WASHER-PLAIN
- Поз.: 10
12 S205-08100B
- S205-08100B - NUT-HEX
- Поз.: 11
13 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 12
14 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 13
15 S179-050206
- S179-050206 - SCREW-SOCKET RD HD
- Поз.: 14
16 S403-05200B
- S403-05200B - WASHER-PLAIN
- Поз.: 15
17 11EK-92090
- 11EK-92090 - HOSE-DRAIN
- Поз.: 16
18 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 17
19 S572-220006
- S572-220006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 18
20 S441-12000B
- S441-12000B - WASHER-HARDENED
- Поз.: 19
21 73NB-56400
- 73NB-56400 - SHIM
- Поз.: 20
22 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 21
