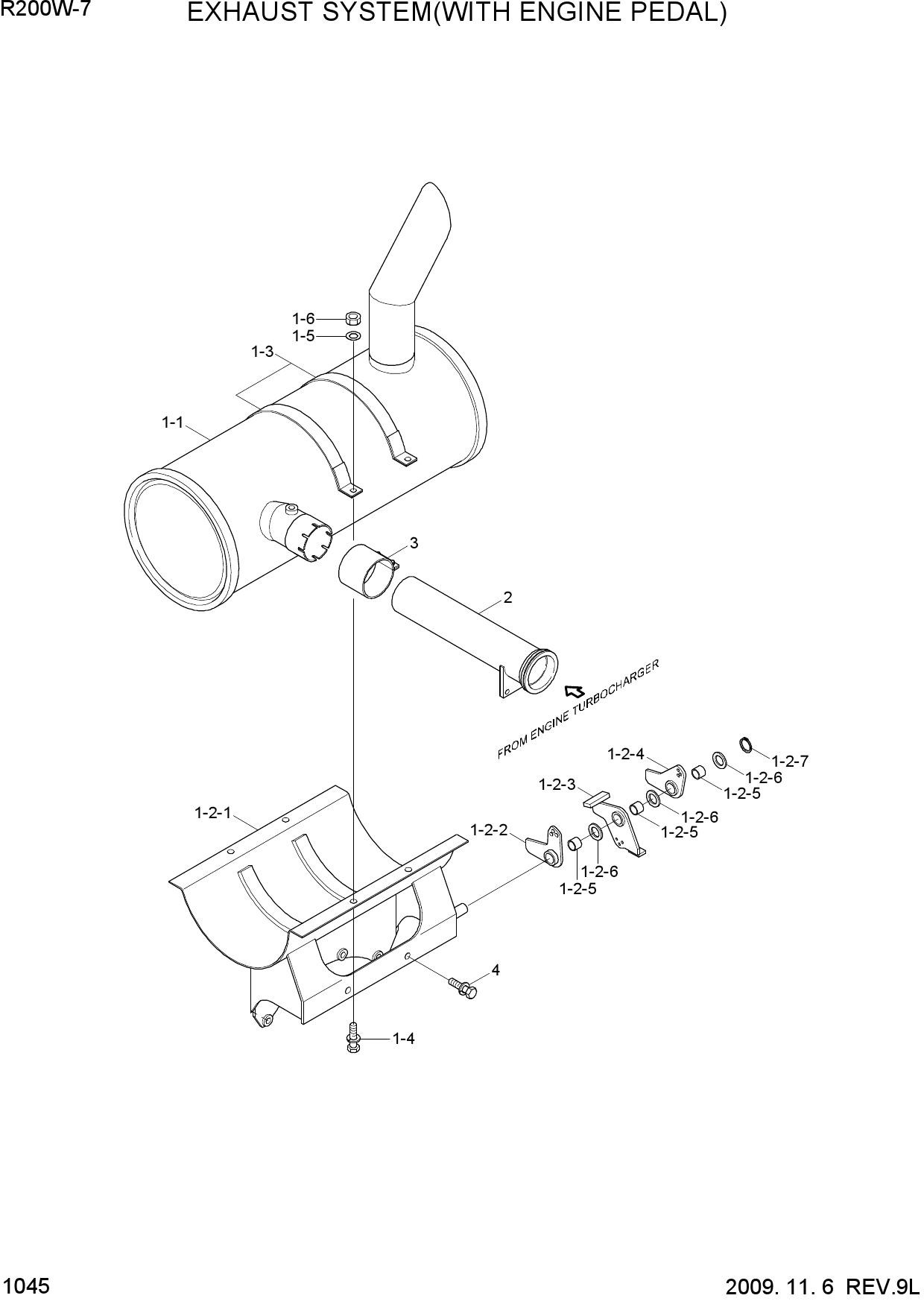

EXHAUST SYSTEM(WITH ENGINE PEDAL)
1 11N6-38000
- 11N6-38000 - MUFFLER SUB ASSY
- Поз.: 1
2 11N6-38001
- 11N6-38001 - MUFFLER SUB ASSY
- Поз.: 1
3 11N6-34050
- 11N6-34050 - MUFFLER
- Поз.: 1-1
4 11N6-34051
- 11N6-34051 - MUFFLER
- Поз.: 1-1
5 11N6-35060
- 11N6-35060 - BRACKET ASSY
- Поз.: 1-2
6 11N6-35061
- 11N6-35061 - BRACKET ASSY
- Поз.: 1-2
7 11N6-35050
- 11N6-35050 - BRACKET-MUFFLER
- Поз.: 1-2-1
8 11N6-35051
- 11N6-35051 - BRACKET-MUFFLER
- Поз.: 1-2-1
9 11N4-32131
- 11N4-32131 - LINK-LEVER
- Поз.: 1-2-2
10 11N4-32141
- 11N4-32141 - LINK-LEVER
- Поз.: 1-2-3
11 11N4-32151
- 11N4-32151 - LINK-LEVER
- Поз.: 1-2-4
12 S731-020015
- S731-020015 - DU BUSHING
- Поз.: 1-2-5
13 S403-202002
- S403-202002 - WASHER-PLAIN
- Поз.: 1-2-6
14 S601-020004
- S601-020004 - RING-RETAINING
- Поз.: 1-2-7
15 11EM-30130
- 11EM-30130 - CLAMP-BAND
- Поз.: 1-3
16 S037-103052
- S037-103052 - BOLT-W/WASHER
- Поз.: 1-4
17 S441-100002
- S441-100002 - WASHER-HARDENED
- Поз.: 1-5
18 S205-101002
- S205-101002 - NUT-HEX
- Поз.: 1-6
19 11N6-30030
- 11N6-30030 - PIPE
- Поз.: 2
20 11N6-30040
- 11N6-30040 - CLAMP-SEAL
- Поз.: 3
21 S037-122552
- S037-122552 - BOLT-W/WASHER
- Поз.: 4
