Колёсные экскаваторы
/
R200W-7
/
Гидравлическая система
/

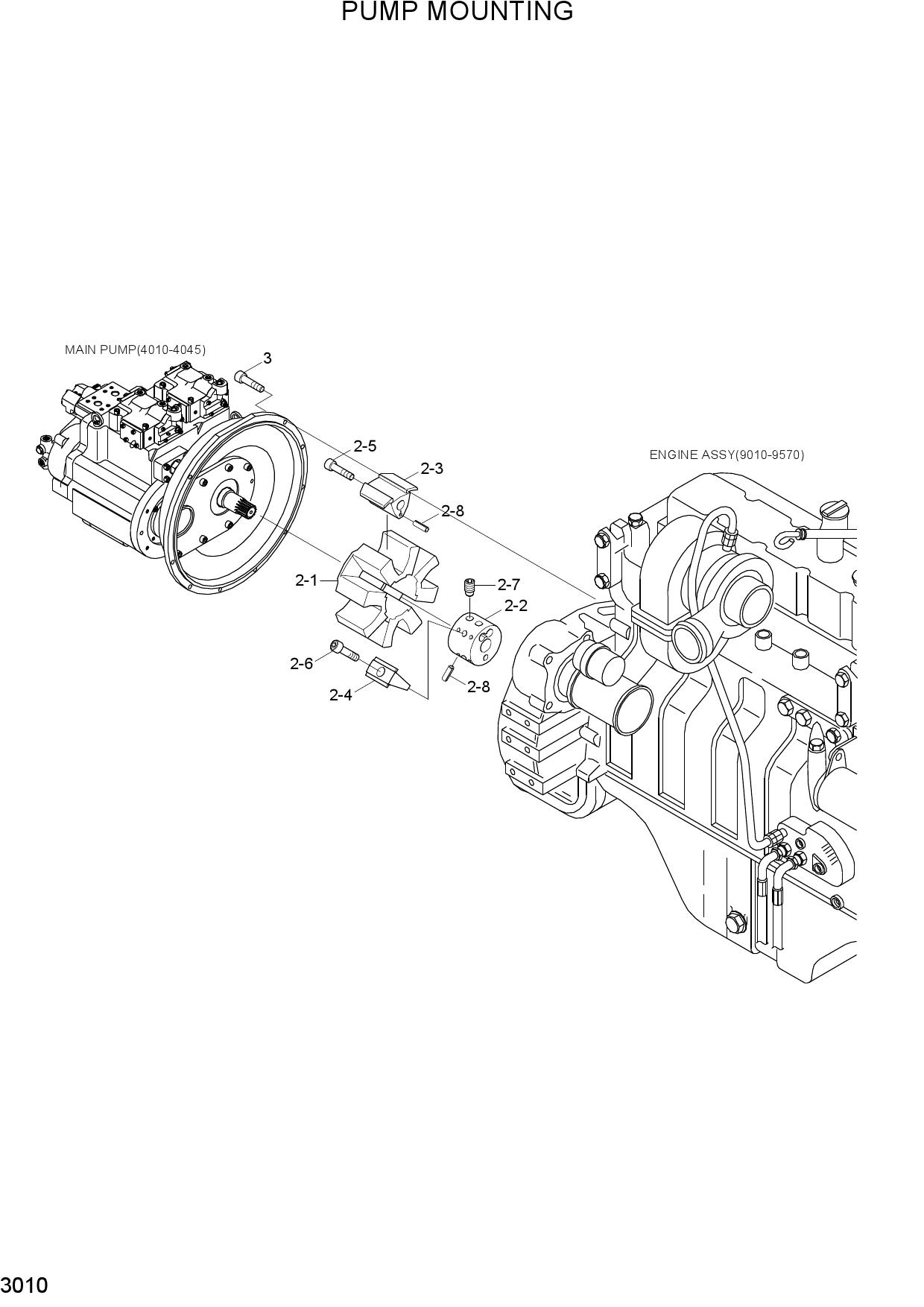

PUMP MOUNTING

PUMP MOUNTING

PUMP MOUNTING

1 11N6-15010

  • 11N6-15010 - COUPLING ASSY
  • Поз.: 2

2 11N7-10020

  • 11N7-10020 - ELEMENT
  • Поз.: 2-1

3 11N6-15020

  • 11N6-15020 - HUB-SPLINE
  • Поз.: 2-2

4 11N7-10040

  • 11N7-10040 - INSERT-A
  • Поз.: 2-3

5 11N7-10050

  • 11N7-10050 - INSERT-R
  • Поз.: 2-4

6 S109-180606

  • S109-180606 - BOLT-SOCKET
  • Поз.: 2-5

7 S109-180556

  • S109-180556 - BOLT-SOCKET
  • Поз.: 2-6

8 11N7-10060

  • 11N7-10060 - SCREW-CLAMP
  • Поз.: 2-7

9 S472-500102

  • S472-500102 - PIN-SPRING
  • Поз.: 2-8

10 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 3
