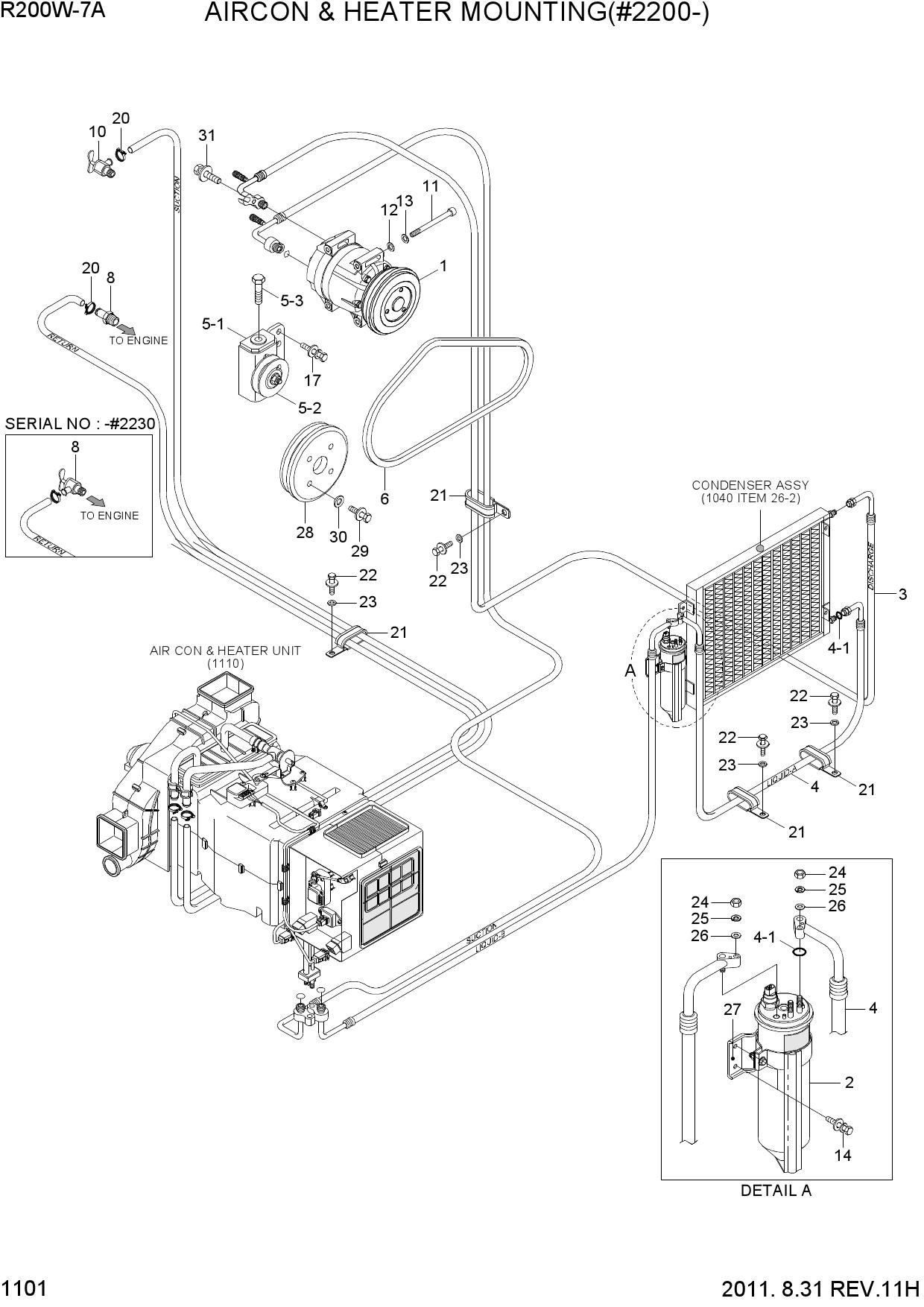

AIRCON & HEATER MOUNTING(#2200-)
1 11N6-91040
- 11N6-91040 - COMPRESSOR ASSY
- Поз.: 1
2 11N6-90060
- 11N6-90060 - DRIER-RECEIVER
- Поз.: 2
3 11N6-91110
- 11N6-91110 - DIS HOSE ASSY
- Поз.: 3
4 11N6-93020
- 11N6-93020 - HOSE(A)-LIQUID
- Поз.: 4
5 A305000209-2
- A305000209-2 - O-RING
- Поз.: 4-1
6 11N6-90110
- 11N6-90110 - PULLEY-IDLE
- Поз.: 5
7 A4760-508-00-2
- A4760-508-00-2 - BRACKET-PULLEY
- Поз.: 5-1
8 A4700-511-01-2
- A4700-511-01-2 - PULLEY-IDLE
- Поз.: 5-2
9 A8900-518-03-3
- A8900-518-03-3 - BOLT-TENSION
- Поз.: 5-3
10 11N6-91130
- 11N6-91130 - V-BELT
- Поз.: 6
11 11N6-90250
- 11N6-90250 - V-BELT
- Поз.: 6
12 14L1-01350
- 14L1-01350 - VALVE-HEATER
- Поз.: 8
13 11Q6-90080
- 11Q6-90080 - CONNECTOR-HEATER
- Поз.: 8
14 11L7-90150
- 11L7-90150 - VALVE-HEATER
- Поз.: 10
15 S109-080856
- S109-080856 - BOLT-SOCKET
- Поз.: 11
16 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 12
17 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 13
18 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 14
19 S035-083526
- S035-083526 - BOLT-W/WASHER
- Поз.: 16
20 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 17
21 S572-220006
- S572-220006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 20
22 S543-400002
- S543-400002 - CLAMP-TUBE
- Поз.: 21
23 S017-100156
- S017-100156 - BOLT-HEX
- Поз.: 22
24 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 23
25 S205-06100B
- S205-06100B - NUT-HEX
- Поз.: 24
26 S411-060006
- S411-060006 - WASHER-SPRING
- Поз.: 25
27 S403-06200B
- S403-06200B - WASHER-PLAIN
- Поз.: 26
28 11N6-90120
- 11N6-90120 - BRACKET-R/DRIER
- Поз.: 27
29 11N8-97101
- 11N8-97101 - PULLEY-AIR CON
- Поз.: 28
30 S088-070166
- S088-070166 - BOLT-HEX
- UNIFIED
- Поз.: 29
31 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 30
32 S038-103556
- S038-103556 - BOLT-W/WASHER
- Поз.: 31
