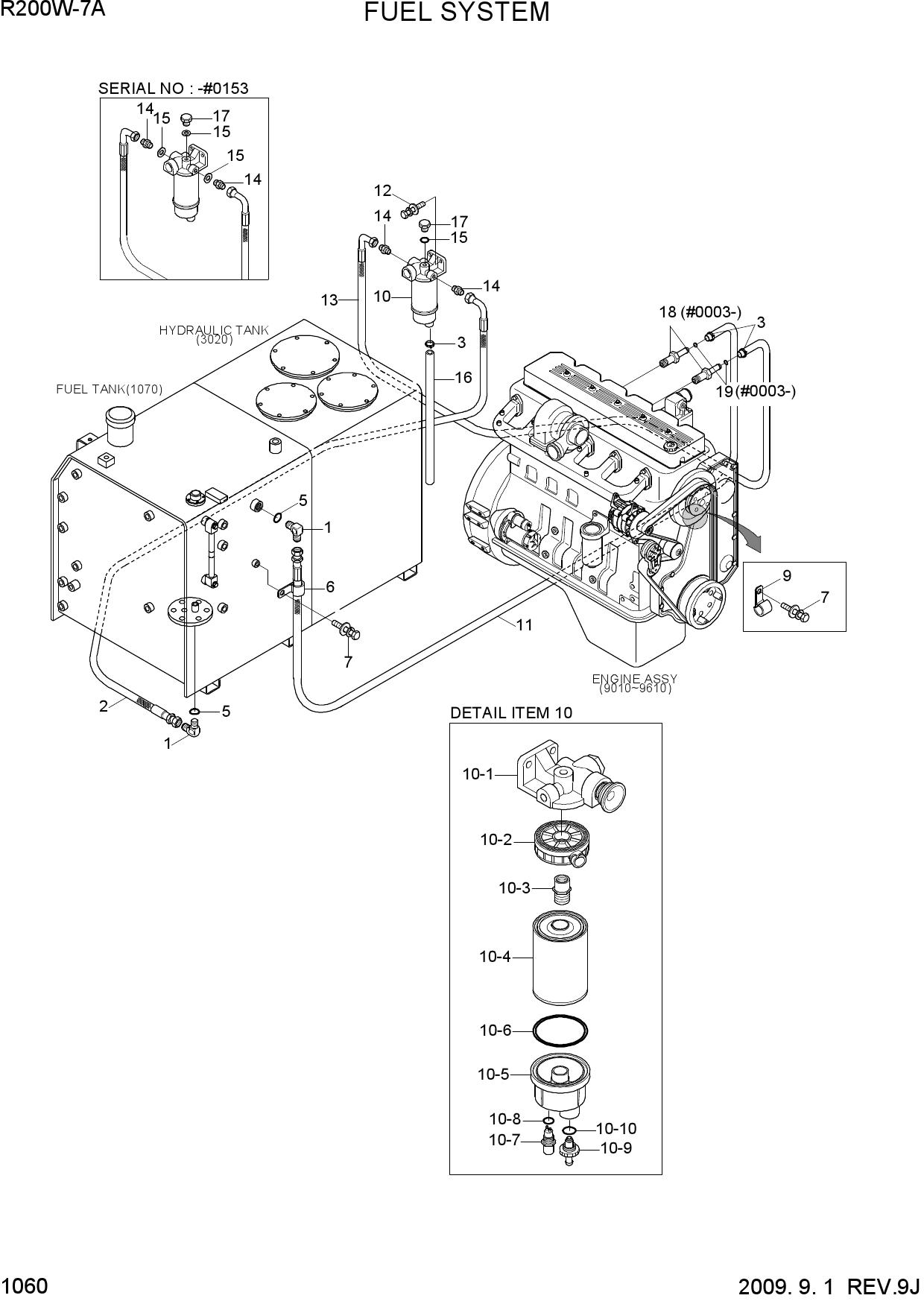

FUEL SYSTEM
1 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 1
2 11N6-53030
- 11N6-53030 - HOSE ASSY
- Поз.: 2
3 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 3
4 S631-018001
- S631-018001 - O-RING
- Поз.: 5
5 S543-200002
- S543-200002 - CLAMP-TUBE
- Поз.: 6
6 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 7
7 S543-360002
- S543-360002 - CLAMP-TUBE
- Поз.: 9
8 11NA-71001
- 11NA-71001 - FUEL FILTER & W/S ASSY
- Поз.: 10
9 11NA-71010
- 11NA-71010 - HEAD-FILTER
- Поз.: 10-1
10 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 10-2
11 11NA-71030
- 11NA-71030 - CONNECTOR
- Поз.: 10-3
12 11NA-71041
- 11NA-71041 - ELEMENT ASSY
- Поз.: 10-4
13 11NA-71050
- 11NA-71050 - BOWL-CLEAR
- Поз.: 10-5
14 11NA-71060
- 11NA-71060 - O-RING
- Поз.: 10-6
15 11NA-71070
- 11NA-71070 - SENSOR
- Поз.: 10-7
16 11NA-71080
- 11NA-71080 - O-RING
- Поз.: 10-8
17 11NA-71090
- 11NA-71090 - VALVE-SCREW
- Поз.: 10-9
18 11NA-71100
- 11NA-71100 - O-RING
- Поз.: 10-10
19 11N8-57000
- 11N8-57000 - HOSE ASSY-FUEL
- Поз.: 11
20 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 12
21 11N8-52110
- 11N8-52110 - HOSE ASSY
- Поз.: 13
22 11N6-50010
- 11N6-50010 - CONNECTOR
- Поз.: 14
23 11Q6-50040
- 11Q6-50040 - CONNECTOR
- Поз.: 14
24 P392-140000
- P392-140000 - WASHER-COPPER
- Поз.: 15
25 Y161-014001
- Y161-014001 - O-RING
- Поз.: 15
26 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 16
27 P220-220104
- P220-220104 - PLUG-HEX
- Поз.: 17
28 P210-101400
- P210-101400 - PLUG-HEX
- Поз.: 17
29 11ND-40170
- 11ND-40170 - CONNECTOR
- Поз.: 18
30 P392-120000
- P392-120000 - WASHER-COPPER
- Поз.: 19
