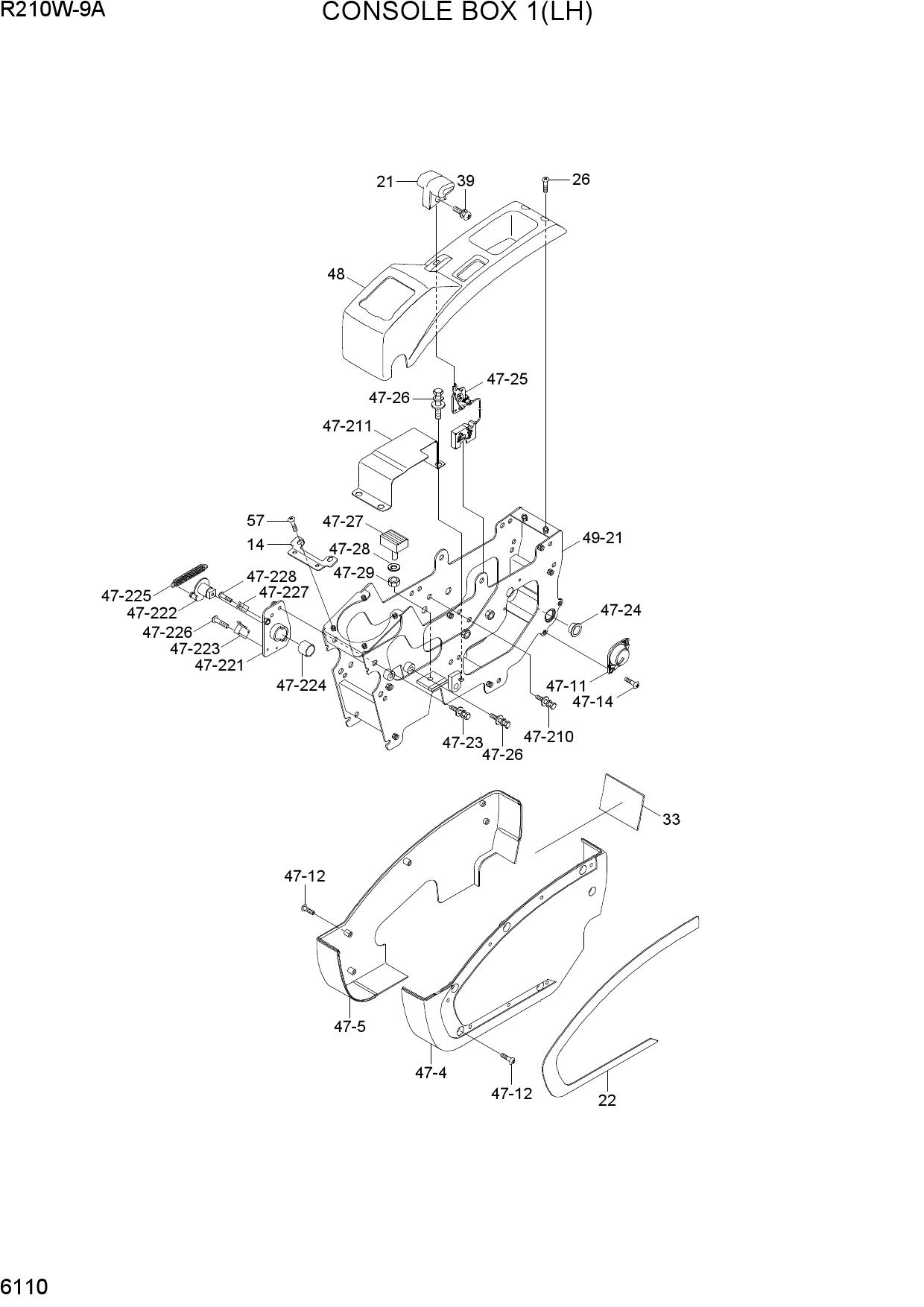

CONSOLE BOX 1(LH)
1 71Q6-21610
- 71Q6-21610 - BRACKET-CONSOLE UP
- Поз.: 14
2 71Q4-22120GG
- 71Q4-22120GG - KNOB-LATCH
- Поз.: 21
3 71Q6-22031
- 71Q6-22031 - CONSOLE COVER-TRIM
- Поз.: 22
4 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 26
5 71Q8-22671
- 71Q8-22671 - PROTECTOR
- Поз.: 33
6 S131-040826
- S131-040826 - SCREW-W/WASHER
- Поз.: 39
7 71Q8-22500
- 71Q8-22500 - MIDDLE PLATE SUB ASSY
- Поз.: 47
8 71Q8-22260
- 71Q8-22260 - FRAME ASSY-LH
- Поз.: 47-2
9 71Q4-23110
- 71Q4-23110 - C/FRAME WA
- Поз.: 47-21
10 71Q6-20920
- 71Q6-20920 - BRACKET ASSY-SAFETY
- Поз.: 47-22
11 71Q6-20930
- 71Q6-20930 - BRACKET-LOWER
- Поз.: 47-221
12 71Q6-20960
- 71Q6-20960 - BRACKET-UPPER
- Поз.: 47-222
13 21N8-20300
- 21N8-20300 - SWITCH-MICRO
- Поз.: 47-223
14 S731-020015
- S731-020015 - DU BUSHING
- Поз.: 47-224
15 71N6-21610
- 71N6-21610 - SPRING
- Поз.: 47-225
16 S161-030152
- S161-030152 - SCREW-CROSS R/ROUND
- Поз.: 47-226
17 71Q6-22840
- 71Q6-22840 - PLATE-STOPPER
- Поз.: 47-227
18 S131-051526
- S131-051526 - SCREW-W/WASHER
- Поз.: 47-228
19 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 47-23
20 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 47-24
21 71Q8-22780
- 71Q8-22780 - LATCH ASSY
- Поз.: 47-25
22 S132-061526
- S132-061526 - SCREW-W/WASHER
- Поз.: 47-26
23 71Q4-22140
- 71Q4-22140 - DAMPER-CONSOLE
- Поз.: 47-27
24 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 47-28
25 S205-08100B
- S205-08100B - NUT-HEX
- Поз.: 47-29
26 S035-084526
- S035-084526 - BOLT-W/WASHER
- Поз.: 47-210
27 71Q4-21370
- 71Q4-21370 - PLATE
- Поз.: 47-211
28 71Q4-21020
- 71Q4-21020 - CONSOLE COVER-LH
- Поз.: 47-4
29 71Q4-23590
- 71Q4-23590 - CONSOLE COVER-RH
- Поз.: 47-5
30 71Q8-23600
- 71Q8-23600 - CAP-CONSOLE
- Поз.: 47-11
31 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 47-12
32 S002-05015B
- S002-05015B - SCREW-TRUS HEAD
- Поз.: 47-14
33 71Q4-22060GG
- 71Q4-22060GG - CONSOLE COVER-UP
- LH
- Поз.: 48
34 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 57
