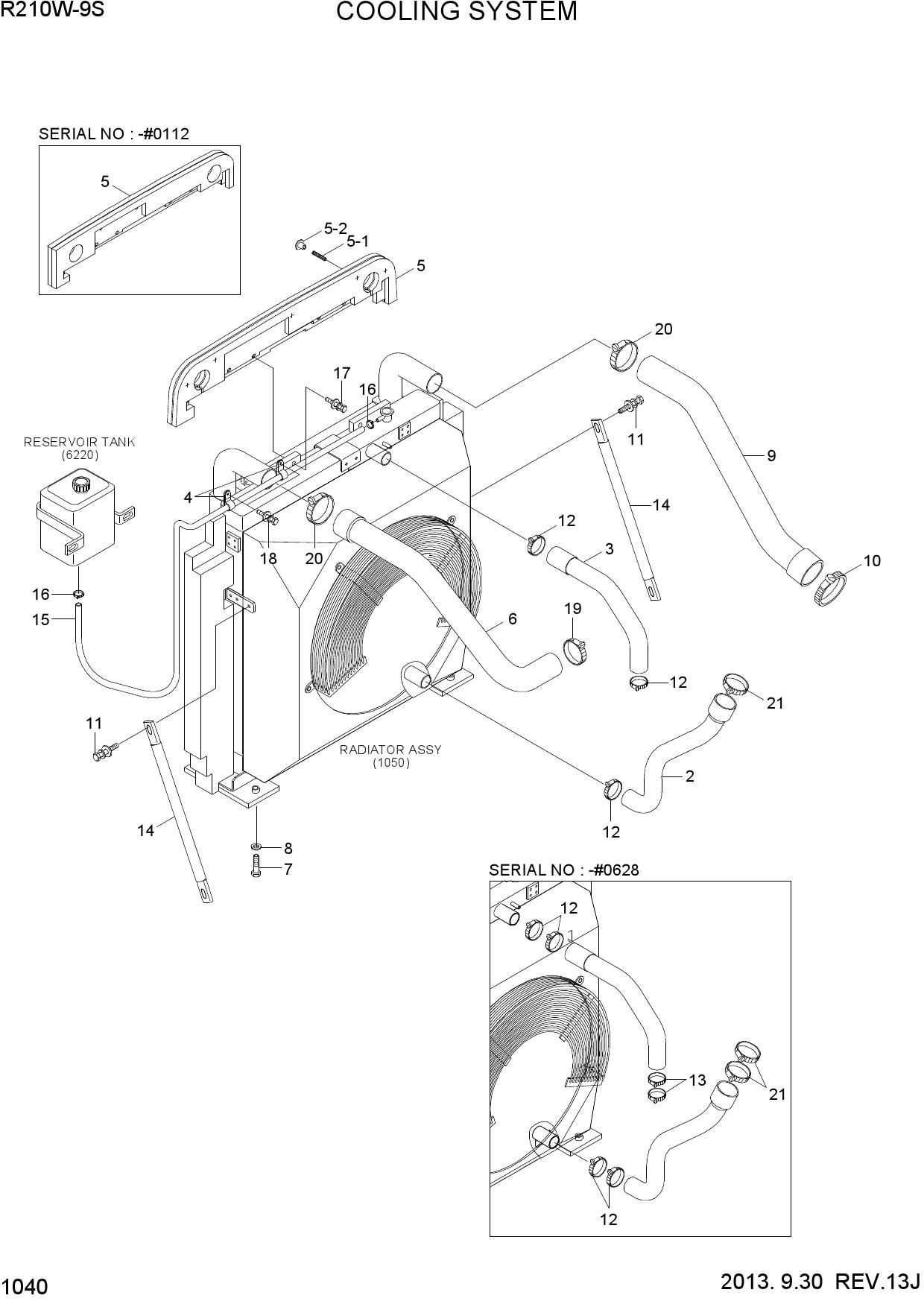

COOLING SYSTEM
1 11Q6-46240
- 11Q6-46240 - HOSE-LOWER
- Поз.: 2
2 1BQ6-46010
- 1BQ6-46010 - HOSE-UPPER
- Поз.: 3
3 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 4
4 11Q6-44042
- 11Q6-44042 - SCREEN
- Поз.: 5
5 11Q6-44043
- 11Q6-44043 - SCREEN
- Поз.: 5
6 11Q6-44044
- 11Q6-44044 - SCREEN
- Поз.: 5
7 71EM-51590
- 71EM-51590 - STUD BOLT
- Поз.: 5-1
8 71EM-51580
- 71EM-51580 - CAP-STUD BOLT
- Поз.: 5-2
9 11Q6-46031
- 11Q6-46031 - HOSE-CAC
- Поз.: 6
10 S017-16045D
- S017-16045D - BOLT-HEX
- Поз.: 7
11 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 8
12 1BQ6-46380
- 1BQ6-46380 - HOSE-CAC
- Поз.: 9
13 11Q8-41460
- 11Q8-41460 - CLAMP-BAND
- T-BOLT
- Поз.: 10
14 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 11
15 S572-620006
- S572-620006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 12
16 11Q4-44370
- 11Q4-44370 - CLAMP
- Поз.: 12
17 S572-590006
- S572-590006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 13
18 11N6-46150
- 11N6-46150 - STAY
- Поз.: 14
19 E111-2504
- E111-2504 - HOSE
- Поз.: 15
20 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 16
21 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 17
22 S035-081556
- S035-081556 - BOLT-W/WASHER
- Поз.: 18
23 11U2-40180
- 11U2-40180 - CLAMP-T-RETENTION
- Поз.: 19
24 11U2-40190
- 11U2-40190 - CLAMP-T-RETENTION
- Поз.: 20
25 S572-720006
- S572-720006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 21
26 11Q4-44300
- 11Q4-44300 - CLAMP
- Поз.: 21
