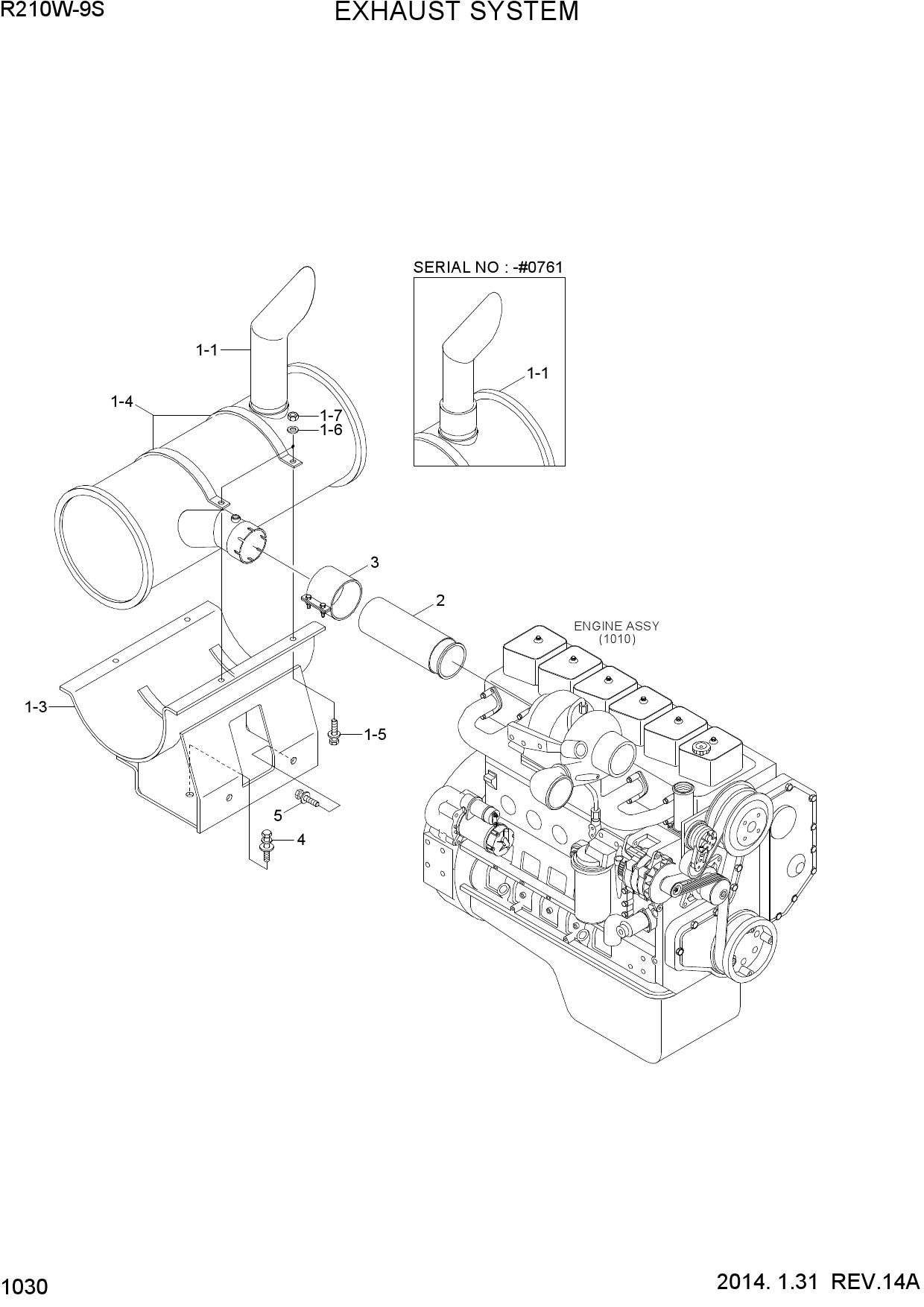

EXHAUST SYSTEM
1 11N6-34011
- 11N6-34011 - MUFFLER SUB ASSY
- Поз.: 1
2 11N6-34012
- 11N6-34012 - MUFFLER SUB ASSY
- Поз.: 1
3 11N6-34031
- 11N6-34031 - MUFFLER
- Поз.: 1-1
4 11N6-34032
- 11N6-34032 - MUFFLER
- Поз.: 1-1
5 11N6-34040
- 11N6-34040 - BRACKET-MOUNTING
- Поз.: 1-3
6 11EM-30130
- 11EM-30130 - CLAMP-BAND
- Поз.: 1-4
7 S037-103056
- S037-103056 - BOLT-W/WASHER
- Поз.: 1-5
8 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 1-6
9 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 1-7
10 11N6-30030
- 11N6-30030 - PIPE
- Поз.: 2
11 11N6-30040
- 11N6-30040 - CLAMP-SEAL
- Поз.: 3
12 11LM-50090
- 11LM-50090 - CLAMP ASSY-SEAL
- Поз.: 3
13 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 4
14 S037-122556
- S037-122556 - BOLT-W/WASHER
- Поз.: 5
