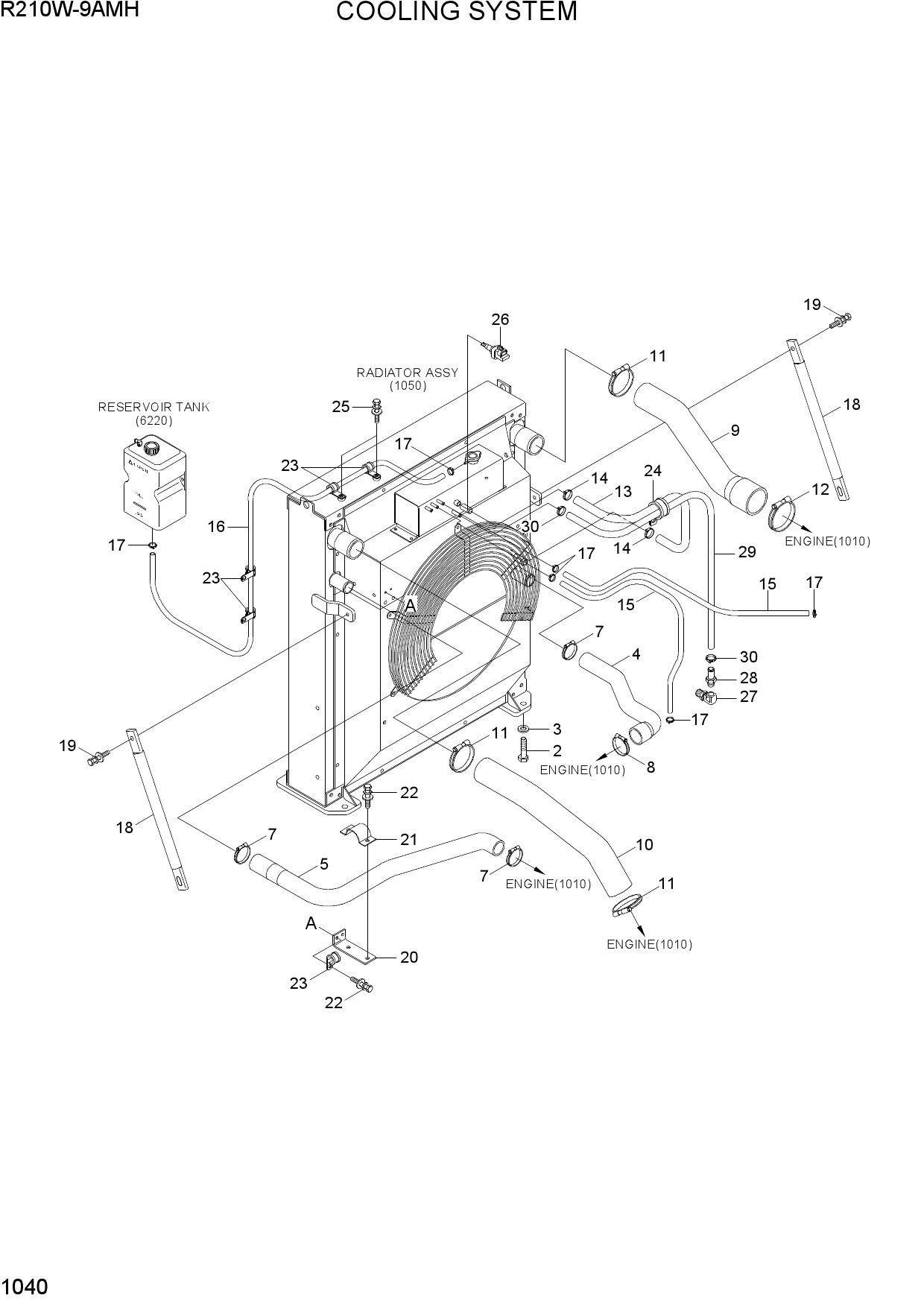

COOLING SYSTEM
1 S017-16045D
- S017-16045D - BOLT-HEX
- Поз.: 2
2 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 3
3 11Q6-43010
- 11Q6-43010 - HOSE-LOWER
- Поз.: 4
4 11Q6-44090
- 11Q6-44090 - HOSE-UPPER
- Поз.: 5
5 11Q4-44370
- 11Q4-44370 - CLAMP
- Поз.: 7
6 11Q4-44300
- 11Q4-44300 - CLAMP
- Поз.: 8
7 11Q6-43031
- 11Q6-43031 - HOSE-CAC
- Поз.: 9
8 11Q6-43041
- 11Q6-43041 - HOSE-CAC
- Поз.: 10
9 11U2-40190
- 11U2-40190 - CLAMP-T-RETENTION
- Поз.: 11
10 11Q8-41460
- 11Q8-41460 - CLAMP-BAND
- T-BOLT
- Поз.: 12
11 11QA-43510
- 11QA-43510 - HOSE-BEND
- Поз.: 13
12 S520-032000
- S520-032000 - CLAMP-HOSE
- Поз.: 14
13 11L1-3010
- 11L1-3010 - HOSE-AIR VENT
- Поз.: 15
14 11Q6-40140
- 11Q6-40140 - HOSE-OVER FLOW
- Поз.: 16
15 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 17
16 11N6-46140
- 11N6-46140 - STAY
- Поз.: 18
17 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 19
18 11Q7-43270
- 11Q7-43270 - SUPPORT
- Поз.: 20
19 11Q7-43280
- 11Q7-43280 - CLAMP ASSY
- Поз.: 21
20 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 22
21 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 23
22 31L7-10250
- 31L7-10250 - CLAMP-TUBE
- INS SINGLE
- Поз.: 24
23 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 25
24 YUBP-02758
- YUBP-02758 - SENSOR-COOLANT LEVEL
- Поз.: 26
25 11Q6-45140
- 11Q6-45140 - ADAPTER-90
- Поз.: 27
26 11Q6-90080
- 11Q6-90080 - CONNECTOR-HEATER
- Поз.: 28
27 P490-140026
- P490-140026 - HOSE-COOLANT
- Поз.: 29
28 S520-027000
- S520-027000 - CLAMP-HOSE
- Поз.: 30
