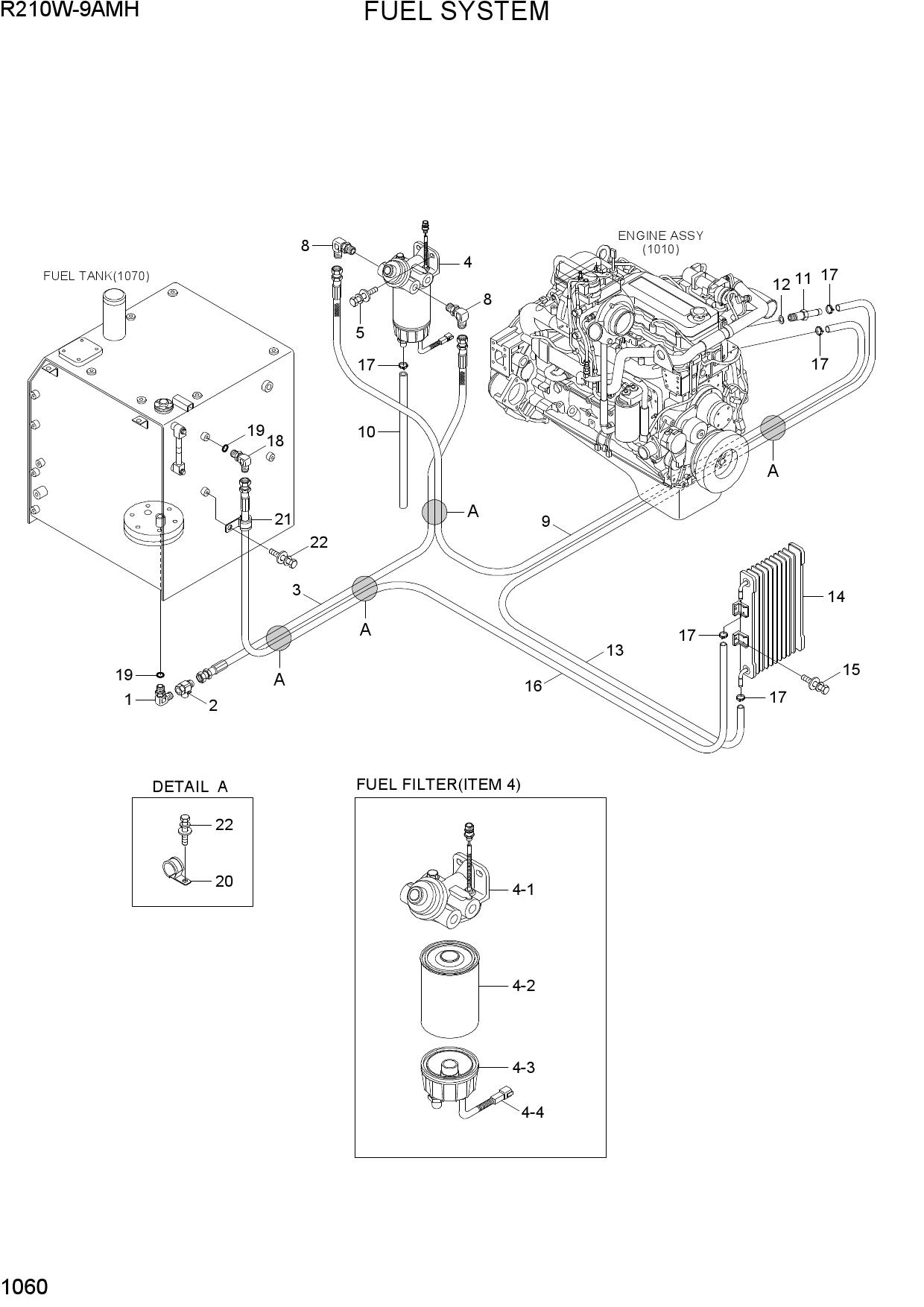

FUEL SYSTEM
1 11Q4-50030
- 11Q4-50030 - ELBOW-90
- Поз.: 1
2 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 2
3 11Q6-54110
- 11Q6-54110 - HOSE-FUEL
- Поз.: 3
4 11QA-71000
- 11QA-71000 - FUEL FILTER ASSY
- Поз.: 4
5 11QA-71010
- 11QA-71010 - HEAD ASSY
- Поз.: 4-1
6 11QA-71040
- 11QA-71040 - ELEMENT ASSY
- Поз.: 4-2
7 11QA-71050
- 11QA-71050 - BOWL ASSY
- Поз.: 4-3
8 11QA-71020
- 11QA-71020 - WIF SENSOR ASSY
- Поз.: 4-4
9 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 5
10 11N8-50060
- 11N8-50060 - ELBOW-90
- Поз.: 8
11 11Q6-50080
- 11Q6-50080 - HOSE-FUEL
- Поз.: 9
12 11Q6-54130
- 11Q6-54130 - HOSE-FUEL
- Поз.: 10
13 11ND-40170
- 11ND-40170 - CONNECTOR
- Поз.: 11
14 P392-120000
- P392-120000 - WASHER-COPPER
- Поз.: 12
15 11Q6-54170
- 11Q6-54170 - HOSE-FUEL
- Поз.: 13
16 11QB-41041
- 11QB-41041 - COOLER-FUEL
- Поз.: 14
17 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 15
18 11Q6-54180
- 11Q6-54180 - HOSE-FUEL
- Поз.: 16
19 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 17
20 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 18
21 S631-018004
- S631-018004 - O-RING
- Поз.: 19
22 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 20
23 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 21
24 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 22
