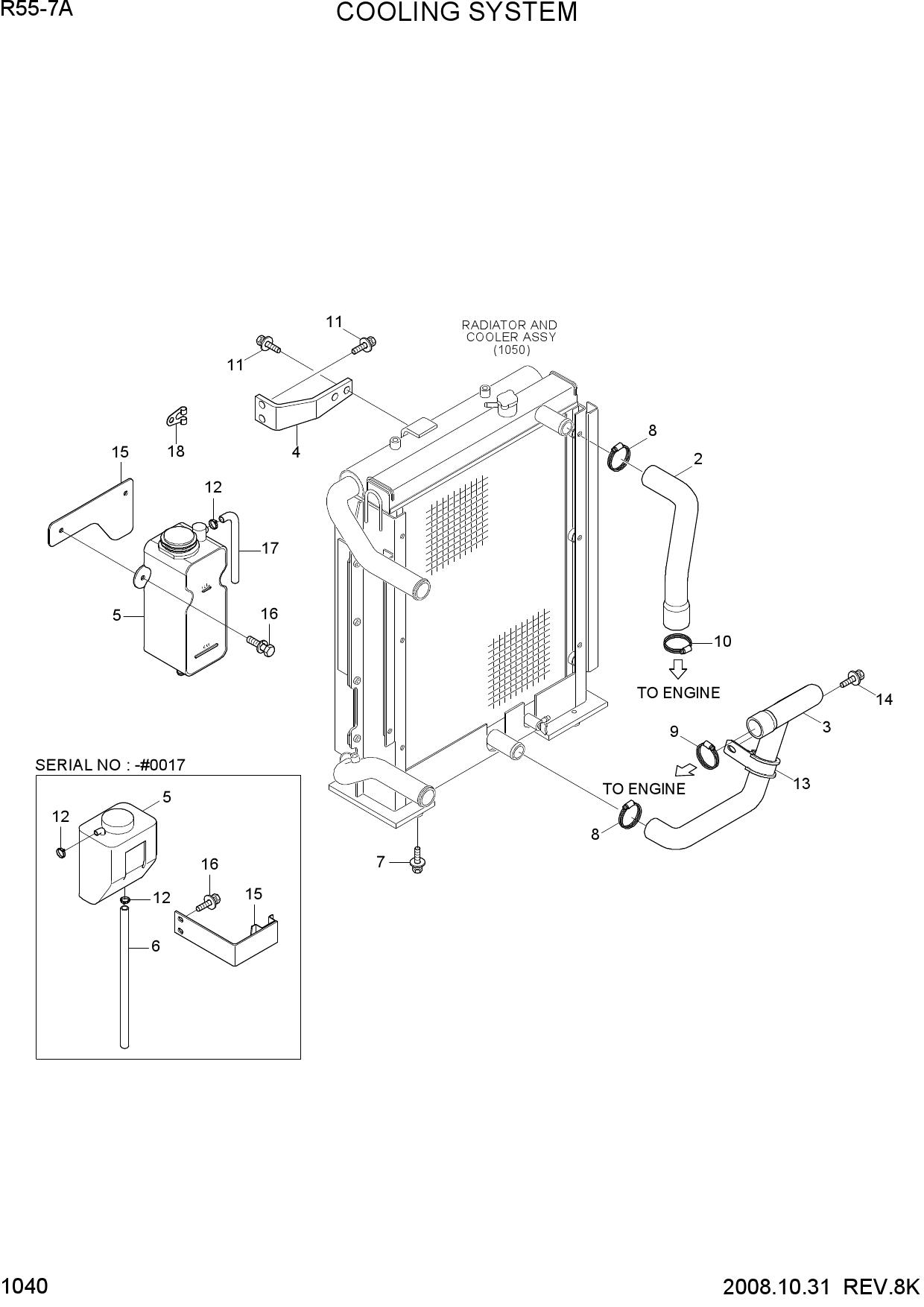

COOLING SYSTEM
1 11M8-42200
- 11M8-42200 - HOSE
- Поз.: 2
2 11M8-42210
- 11M8-42210 - HOSE
- Поз.: 3
3 11M8-40221
- 11M8-40221 - BRACKET
- Поз.: 4
4 11M6-52330
- 11M6-52330 - TANK-RESERVOIR
- Поз.: 5
5 11M8-42330
- 11M8-42330 - TANK-RESERVOIR
- Поз.: 5
6 11M8-40330
- 11M8-40330 - HOSE ASSY
- Поз.: 6
7 S037-104056
- S037-104056 - BOLT-W/WASHER
- Поз.: 7
8 S572-450006
- S572-450006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 8
9 S572-490006
- S572-490006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 9
10 S572-510006
- S572-510006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 10
11 S037-102056
- S037-102056 - BOLT-W/WASHER
- Поз.: 11
12 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 12
13 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 12
14 31E7-0311
- 31E7-0311 - CLAMP-HOSE
- Поз.: 13
15 S035-081556
- S035-081556 - BOLT-W/WASHER
- Поз.: 14
16 11M8-40360
- 11M8-40360 - BRACKET
- Поз.: 15
17 11M8-42311
- 11M8-42311 - BRACKET
- Поз.: 15
18 S035-082056
- S035-082056 - BOLT-W/WASHER
- Поз.: 16
19 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 16
20 11F8-00071
- 11F8-00071 - HOSE-FUEL
- Поз.: 17
21 S593-000652
- S593-000652 - CLIP-HARNESS
- Поз.: 18
