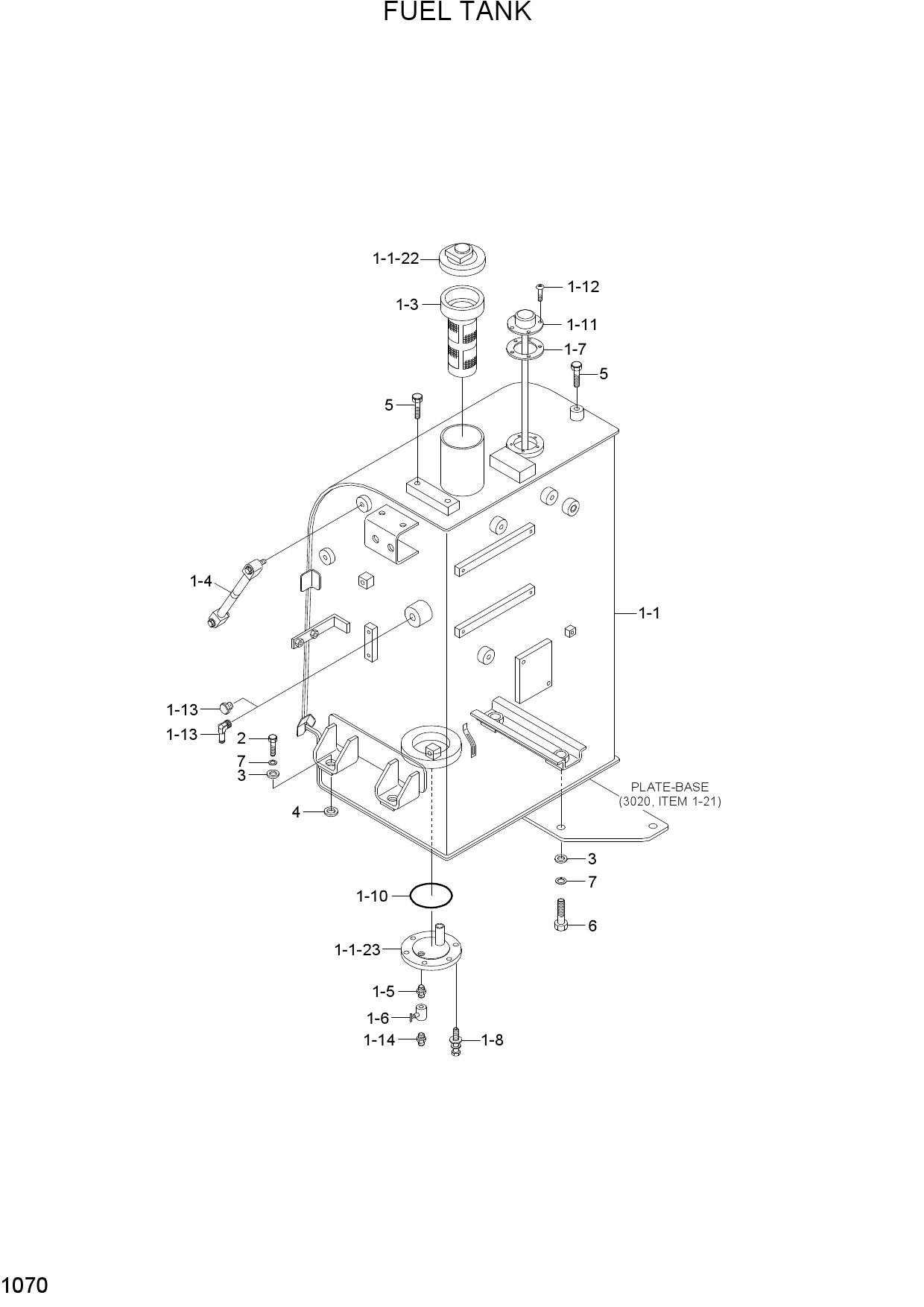

FUEL TANK
1 31M8-02016
- 31M8-02016 - FUEL TANK WA
- Поз.: 1-1
2 31N4-02120
- 31N4-02120 - FUEL CAP ASSY
- Поз.: 1-1-22
3 31M8-02162
- 31M8-02162 - COVER
- Поз.: 1-1-23
4 31E1-10300
- 31E1-10300 - STRAINER
- Поз.: 1-3
5 31N6-02600
- 31N6-02600 - GAUGE-LEVEL
- Поз.: 1-4
6 31E5-3049
- 31E5-3049 - FITTING
- Поз.: 1-5
7 E131-1006
- E131-1006 - VALVE-NEEDLE
- Поз.: 1-6
8 E128-1053
- E128-1053 - GASKET
- Поз.: 1-7
9 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 1-8
10 S632-080001
- S632-080001 - O-RING
- Поз.: 1-10
11 21M8-01201
- 21M8-01201 - SENDER-FUEL
- Поз.: 1-11
12 S151-040156
- S151-040156 - SCREW-TAPPING
- Поз.: 1-12
13 P220-430103
- P220-430103 - PLUG-HEX
- Поз.: 1-13
14 11M6-51190
- 11M6-51190 - ELBOW
- Поз.: 1-13
15 P090-100404
- P090-100404 - CONNECTOR-HOSE
- Поз.: 1-14
16 S017-16045D
- S017-16045D - BOLT-HEX
- Поз.: 2
17 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 3
18 41M5-51920
- 41M5-51920 - SHIM(1.0T)
- Поз.: 4
19 S017-120156
- S017-120156 - BOLT-HEX
- Поз.: 5
20 S017-16055D
- S017-16055D - BOLT-HEX
- Поз.: 6
21 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 7
