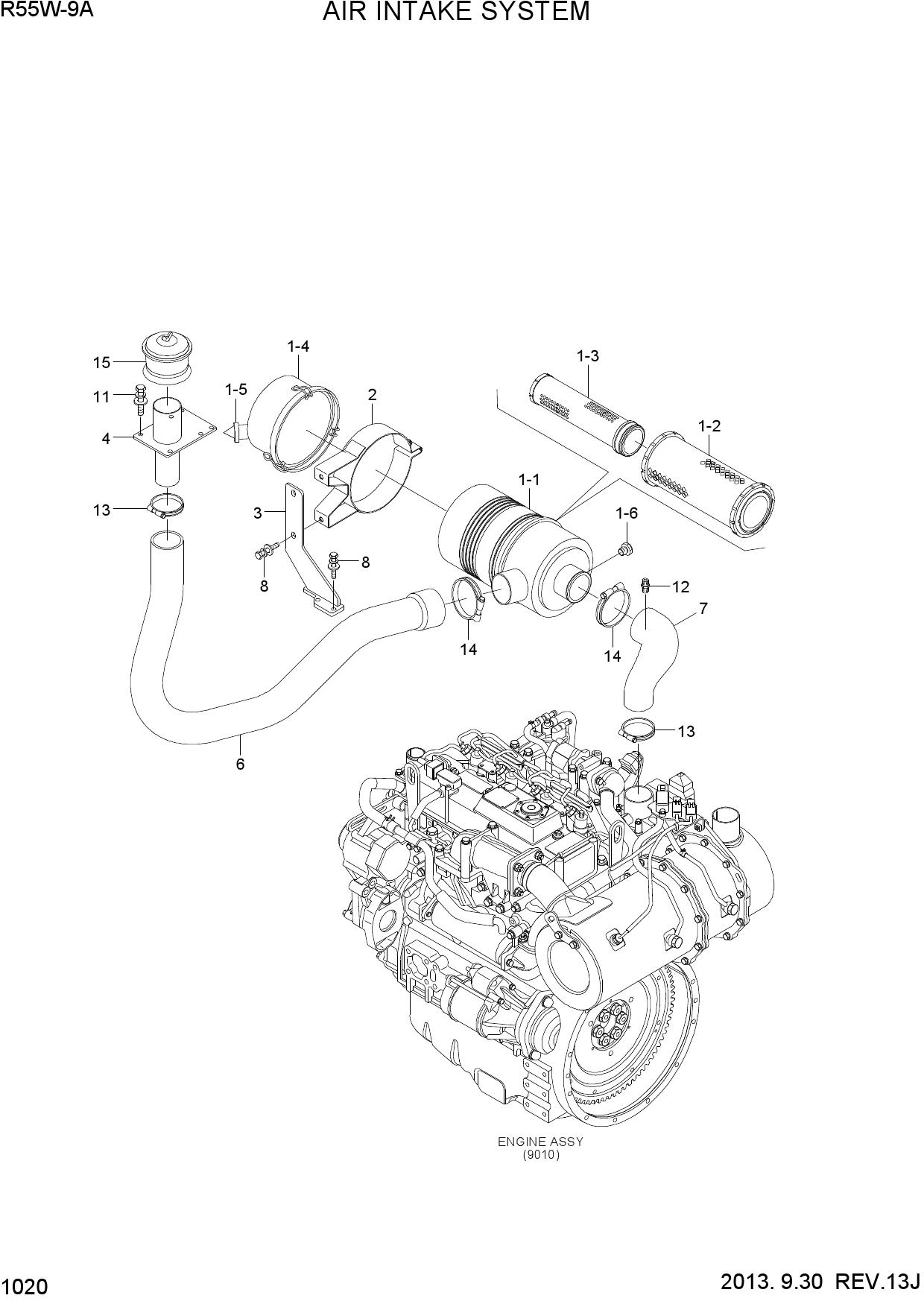

AIR INTAKE SYSTEM
1 11HA-20100
- 11HA-20100 - AIR CLEANER ASSY
- Поз.: 1
2 11S7-40120
- 11S7-40120 - ELEMENT-PRIMARY(OUT)
- Поз.: 1-2
3 11S7-40130
- 11S7-40130 - ELEMENT-SAFETY(IN)
- Поз.: 1-3
4 11S7-40140
- 11S7-40140 - COVER ASSY
- Поз.: 1-4
5 11S7-40150
- 11S7-40150 - VALVE-VACUATOR
- Поз.: 1-5
6 11HA-20250
- 11HA-20250 - PLUG
- Поз.: 1-6
7 11ML-20630
- 11ML-20630 - CLAMP WA
- Поз.: 2
8 11ML-20631
- 11ML-20631 - CLAMP WA
- Поз.: 2
9 S035-083526
- S035-083526 - BOLT-W/WASHER
- Поз.: 2-2
10 S203-08100B
- S203-08100B - NUT-HEX
- Поз.: 2-3
11 S403-080006
- S403-080006 - WASHER-PLAIN
- Поз.: 2-4
12 11ML-20720
- 11ML-20720 - BRACKET
- Поз.: 3
13 11M9-20151
- 11M9-20151 - PIPE WA
- Поз.: 4
14 11M9-20140
- 11M9-20140 - HOSE
- Поз.: 6
15 11ML-20650
- 11ML-20650 - HOSE
- Поз.: 7
16 11ML-20651
- 11ML-20651 - HOSE
- Поз.: 7
17 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 8
18 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 11
19 11FQ-20060
- 11FQ-20060 - ADAPTER
- Поз.: 12
20 S520-070000
- S520-070000 - CLAMP-HOSE
- SCREW DRIVE
- Поз.: 13
21 S520-085000
- S520-085000 - CLAMP-HOSE
- Поз.: 14
22 11M9-20830
- 11M9-20830 - RAIN CAP
- Поз.: 15
23 11Q4-21010
- 11Q4-21010 - INDICATOR
- Поз.: 16
