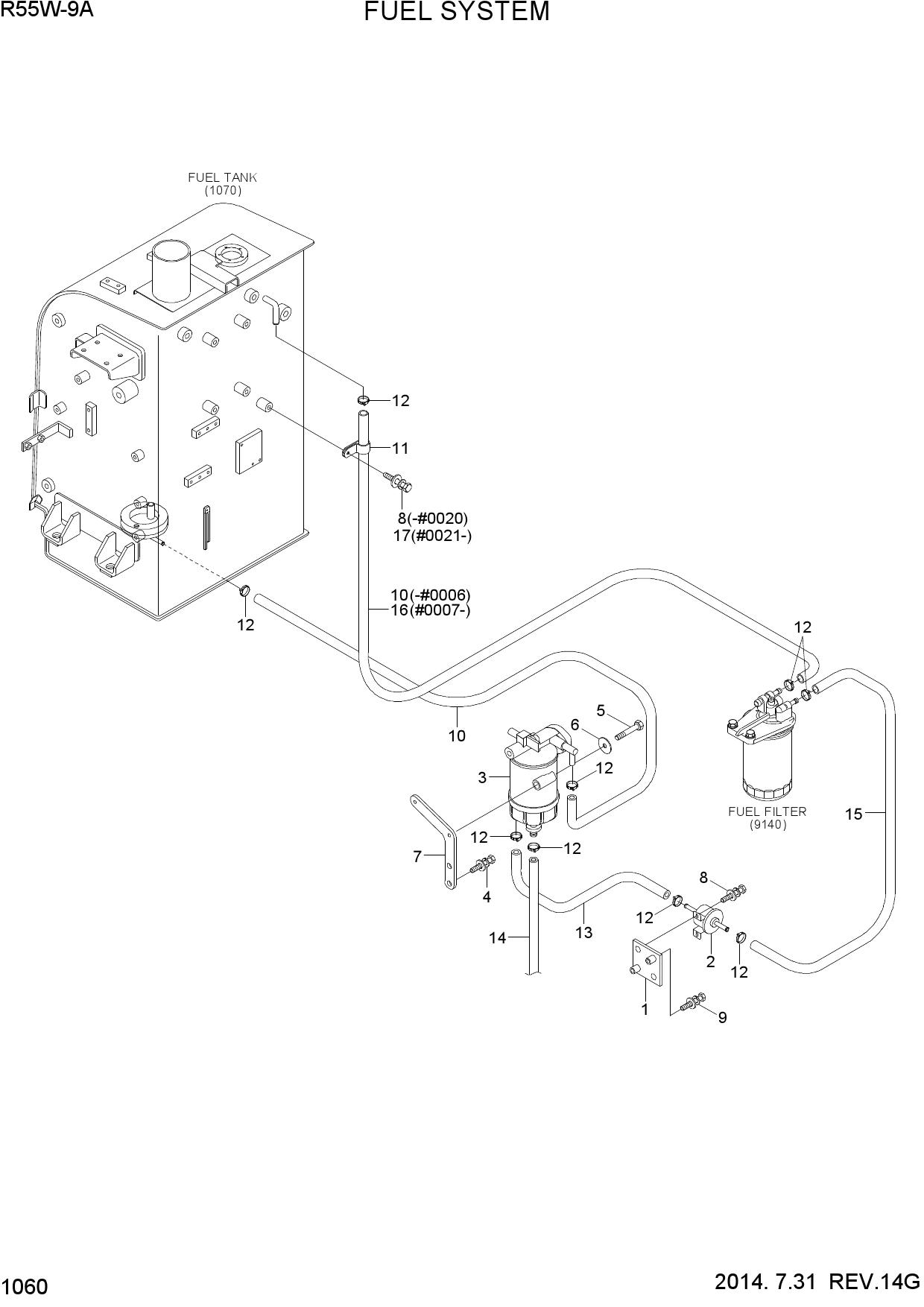

FUEL SYSTEM
1 11N1-50051
- 11N1-50051 - BRACKET
- Поз.: 1
2 XJAU-00233
- XJAU-00233 - PUMP-FUEL
- Поз.: 2
3 XJAU-01349
- XJAU-01349 - WATER SEPARATOR
- Поз.: 3
4 S037-104056
- S037-104056 - BOLT-W/WASHER
- Поз.: 4
5 S015-080906
- S015-080906 - BOLT-HEX
- Поз.: 5
6 S403-08100B
- S403-08100B - WASHER-PLAIN
- Поз.: 6
7 11M9-50800
- 11M9-50800 - BRACKET
- Поз.: 7
8 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 8
9 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 8
10 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 9
11 11M6-51041
- 11M6-51041 - HOSE-OVER FLOW
- Поз.: 10
12 11Q1-50610
- 11Q1-50610 - HOSE-FUEL
- Поз.: 10
13 S541-140002
- S541-140002 - CLAMP-TUBE
- Поз.: 11
14 S541-140002
- S541-140002 - CLAMP-TUBE
- Поз.: 11
15 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 12
16 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 12
17 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 13
18 11M9-50100
- 11M9-50100 - HOSE ASSY
- Поз.: 13
19 11M9-50100
- 11M9-50100 - HOSE ASSY
- Поз.: 13
20 11N1-50020
- 11N1-50020 - HOSE ASSY
- Поз.: 14
21 11N1-50020
- 11N1-50020 - HOSE ASSY
- Поз.: 14
22 11M8-50010
- 11M8-50010 - HOSE-DRAIN
- Поз.: 15
23 11M9-50130
- 11M9-50130 - HOSE-FUEL
- Поз.: 15
24 11ML-50620
- 11ML-50620 - HOSE-FUEL
- Поз.: 16
25 11ML-50620
- 11ML-50620 - HOSE-FUEL
- Поз.: 16
