(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

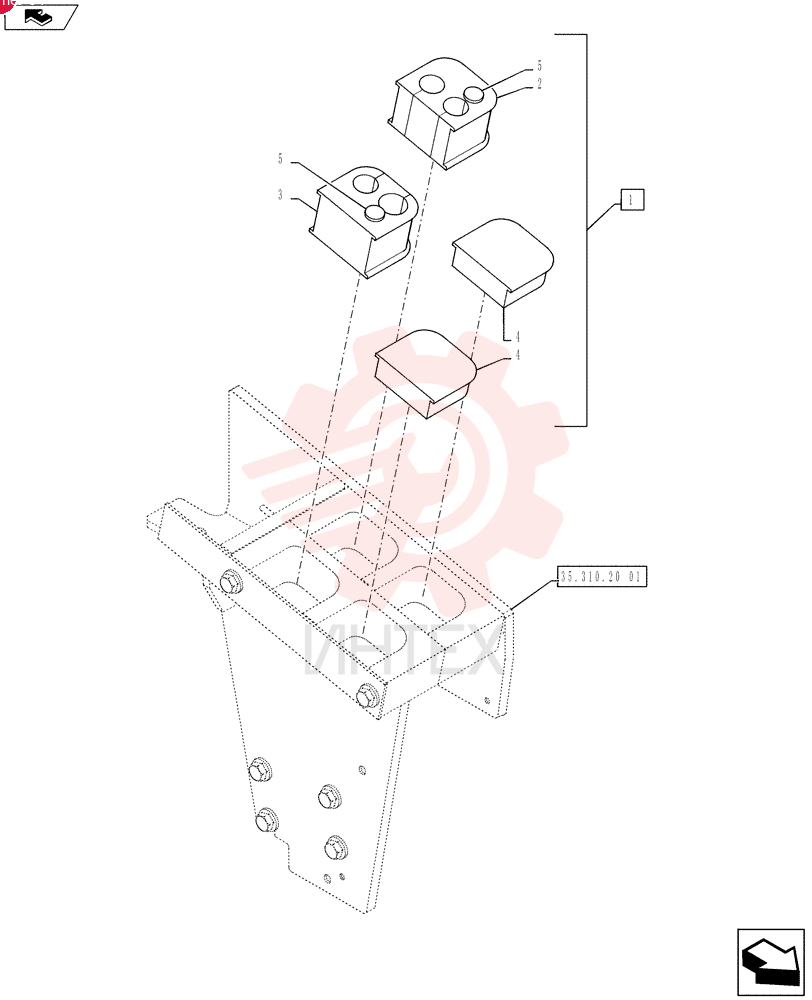

Upper, Incl 2 - 5 YY03H00347F1 (3)

Upper, Incl 2 - 5 YY03H00347F1 (3)

Upper, Incl 2 - 5 YY03H00347F1 (3)

1 YY03H00347F1

  • YY03H00347F1 - Upper
  • Incl 2 - 5

2 YY03H01455P1

  • YY03H01455P1 - BUSHING

3 YY03H01454P1

  • YY03H01454P1 - BUSHING

4 YY03H01466P1

  • YY03H01466P1 - BUSHING

5 YF03H01127P1

  • YF03H01127P1 - CAP
