(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06)
/

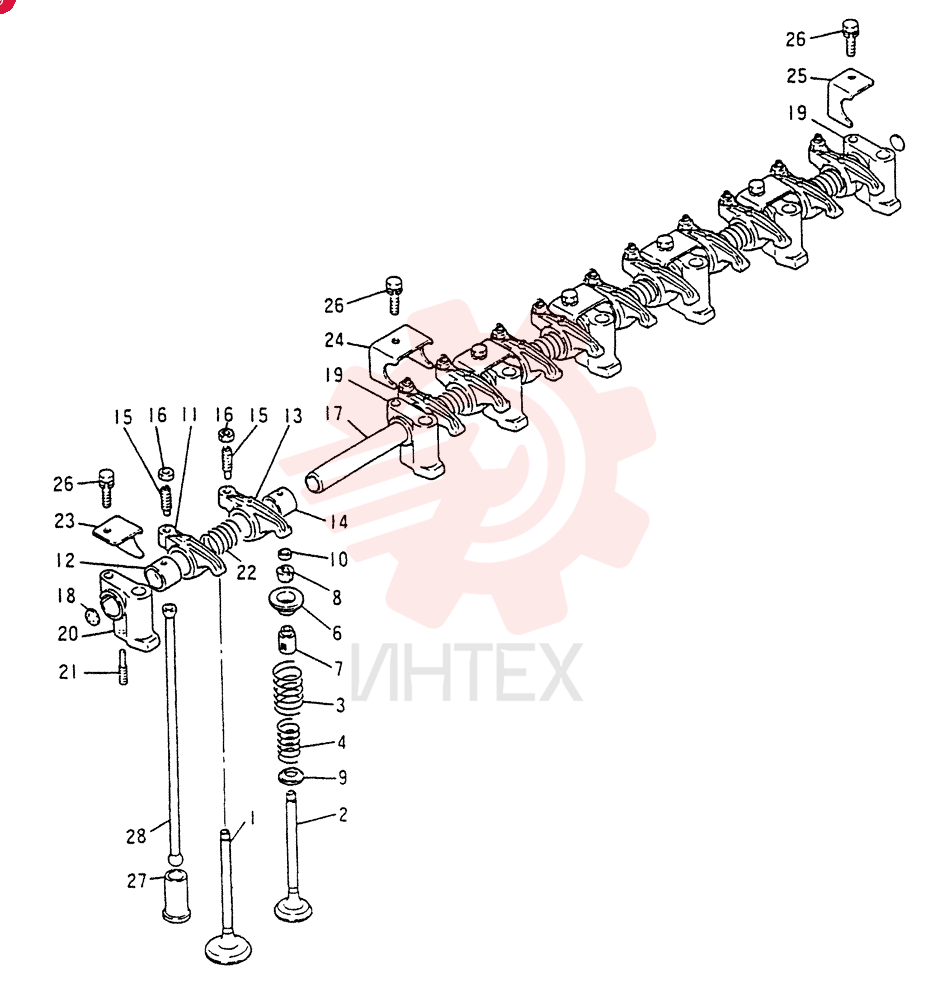

Схема (6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) VAME001142

Схема (6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) VAME001142

Схема (6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) VAME001142

1 VAME001142

  • VAME001142 -
  • VALVE
  • INLET

2 VAME001143

  • VAME001143 -
  • VALVE
  • EXHAUST

3 VAME001119

  • VAME001119 - SPRING
  • VALVE OUTER

4 VAME001118

  • VAME001118 - SPRING
  • VALVE INNER

5 VAME001184

  • VAME001184 - RETAINER
  • RETAINER
  • UPPER

6 VAME001166

  • VAME001166 - SEAL
  • VALVE STEM

7 VAME001121

  • VAME001121 - COTTER PIN
  • COTTER
  • VALVE (AVAILABLE IN SET WITH PAIR)

8 VA3130400701

  • VA3130400701 - RETAINER
  • RETAINER
  • LOWER

9 VA3130411700

  • VA3130411700 - CAP
  • CAP

10 VAME001005

  • VAME001005 - ROCKER ARM
  • ROCKER ASSY
  • INLET

11 NSS

  • NSS - NOT SOLD SEPARAT
  • ROCKER
  • INLET

12 VA3160413100

  • VA3160413100 - BUSHING
  • BUSHING

13 VAME001006

  • VAME001006 -
  • ROCKER ASSY EXH

14 NSS

  • NSS - NOT SOLD SEPARAT
  • ROCKER
  • EXH

15 VA3160413100

  • VA3160413100 - BUSHING
  • BUSHING

16 VAMH001002

  • VAMH001002 - SCREW
  • SCREW
  • ADJUSTING 8X32

17 VAMF430841

  • VAMF430841 - NUT
  • NUT 8

18 VAME001249

  • VAME001249 - SHAFT

19 NSS

  • NSS - NOT SOLD SEPARAT
  • SHAFT
  • ROCKER

20 VA3130404500

  • VA3130404500 - PLUG
  • EXPANSION

21 VAME001107

  • VAME001107 -
  • BRACKET ROCKER SHAFT

22 VAME001108

  • VAME001108 -
  • BRACKET ROCKER SHAFT

23 VA3130419500

  • VA3130419500 -
  • SCREW SET SCREW
  • SET

24 VA3130408500

  • VA3130408500 -
  • SPRING ROCKER SHAFT SPRING
  • ROCKER SHAFT

25 VA3130419101

  • VA3130419101 -
  • RETAINER F RETAINER
  • FR

26 VA3130419201

  • VA3130419201 -
  • RETAINER M RETAINER
  • MI

27 VA3130419301

  • VA3130419301 -
  • RETAINER R RETAINER
  • RE

28 VAMF241257

  • VAMF241257 - BOLT
  • BOLT
  • W/WSR 8X30

29 VAME023171

  • VAME023171 - TAPPET

30 VAME001183

  • VAME001183 - PUSH ROD
