(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06)
/

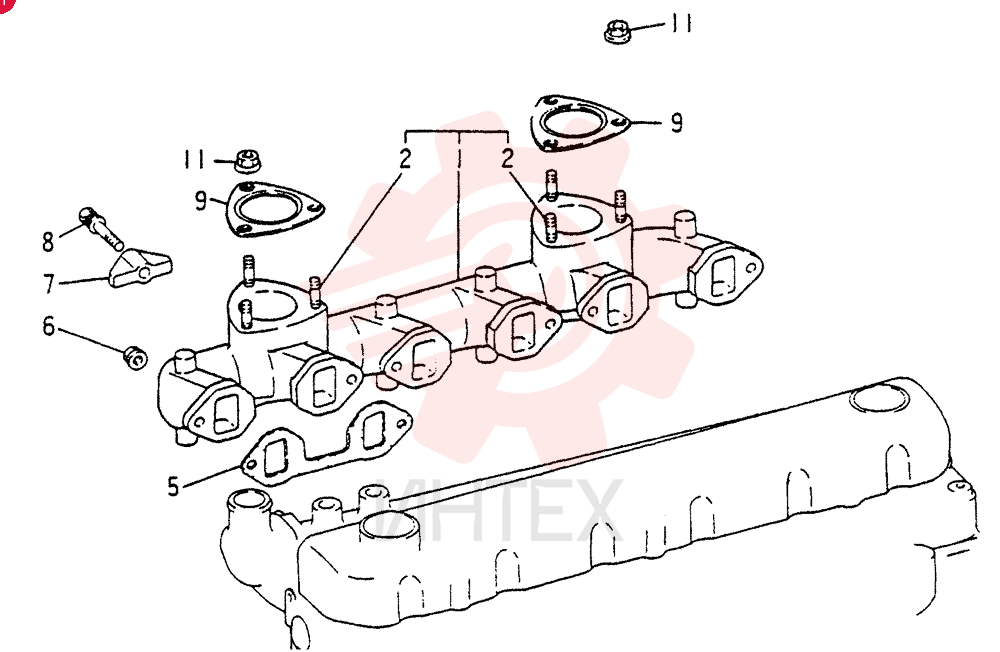

Схема (6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) VAME008736

Схема (6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) VAME008736

Схема (6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) VAME008736

1 VAME008736

  • VAME008736 -
  • EX MANIFOLD ASSY

2 NSS

  • NSS - NOT SOLD SEPARAT
  • MANIFOLD
  • EXHAUST

3 VAMF407006

  • VAMF407006 - SCREW
  • STUD 10X25

4 VA3133200500

  • VA3133200500 - GASKET
  • GASKET
  • EXH MANIFOLD

5 VAMH004054

  • VAMH004054 - NUT
  • FLANGE 10

6 VAME029089

  • VAME029089 - BRIDGE

7 VAMH000245

  • VAMH000245 - BOLT
  • BOLT
  • W/WSR 10X58

8 VAME032584

  • VAME032584 - GASKET

9 VAMH004054

  • VAMH004054 - NUT
  • FLANGE 10
