(700) - LOADER BACKHOE (4/99-12/00)
/

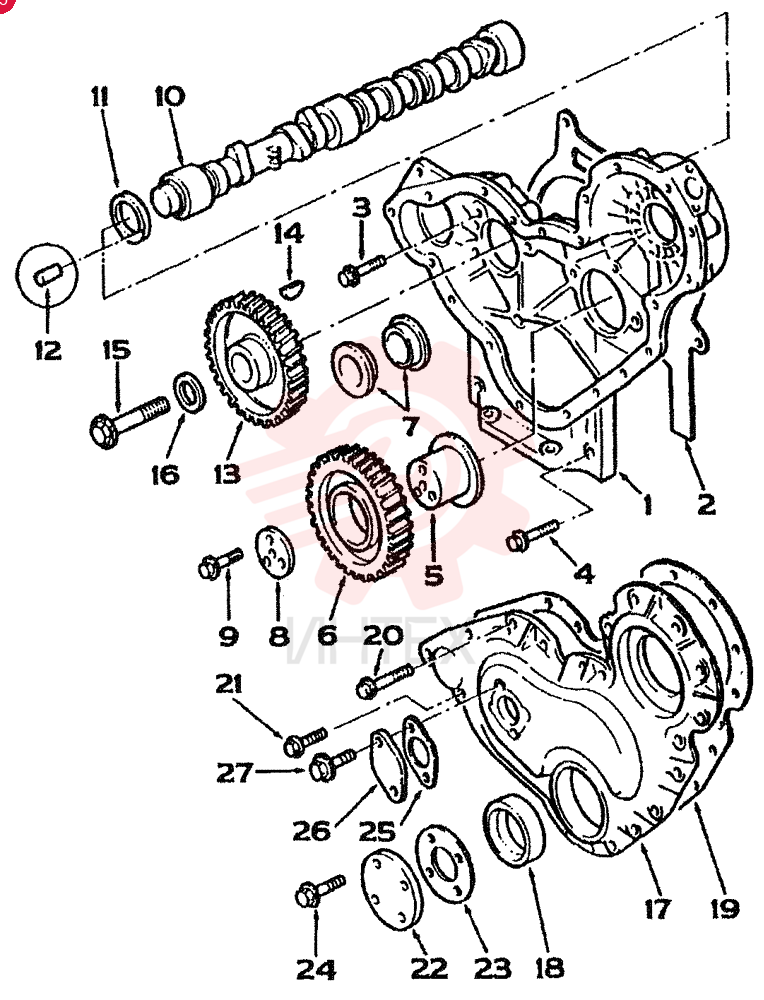

HOUSING

HOUSING

HOUSING

1 37161643

  • 37161643 - HOUSING
  • TIMING CASE

2 36814137

  • 36814137 - GASKET
  • JOINT

3 2314H003

  • 2314H003 - SCREW

4 2314H033

  • 2314H033 - SCREW
  • M8 X 20MM

5 33426161

  • 33426161 - HUB

6 4111A013

  • 4111A013 - GEAR
  • IDLER CONSIST OF REF. 7

7 0050345

  • 0050345 - BUSHING
  • BUSH

8 3241H009

  • 3241H009 - LARGE PLATE
  • PLATE

9 2314J010

  • 2314J010 - SCREW
  • M10 X 60MM

10 31415363

  • 31415363 - CAMSHAFT

11 33153121

  • 33153121 - WASHER
  • NATURALLY ASPIRATED

12 33153135

  • 33153135 - WASHER
  • TURBOCHARGER

13 2116053

  • 2116053 - PIN

14 3117L012

  • 3117L012 - GEAR
  • CAMSHAFT NATURALLY ASPIRATED

15 3117L023

  • 3117L023 - GEAR
  • CAMSHAFT TURBOCHARGER

16 500012

  • 500012 - GASKET
  • WOODRUFF KEY

17 2314J606

  • 2314J606 - SCREW
  • SCREW M12X45MM

18 3321A003

  • 3321A003 - WASHER

19 37166406

  • 37166406 - COVER
  • TIMING COVER

20 2418F436

  • 2418F436 - SEAL
  • SEAT

21 36813137

  • 36813137 - GASKET
  • JOINT

22 2314K161

  • 2314K161 - SCREW
  • M8 X 60MM

23 2314H033

  • 2314H033 - SCREW

24 3271W003

  • 3271W003 - COVER
  • INSPECTION COVER

25 33825419

  • 33825419 - GASKET
  • JOINT

26 2314H031

  • 2314H031 - SCREW

27 36833119

  • 36833119 - GASKET
  • JOINT

28 3S171121

  • 3S171121 - PLATE

29 2314F032

  • 2314F032 - SCREW
