(900) - LOADER BACKHOE (10/97-12/99)
/

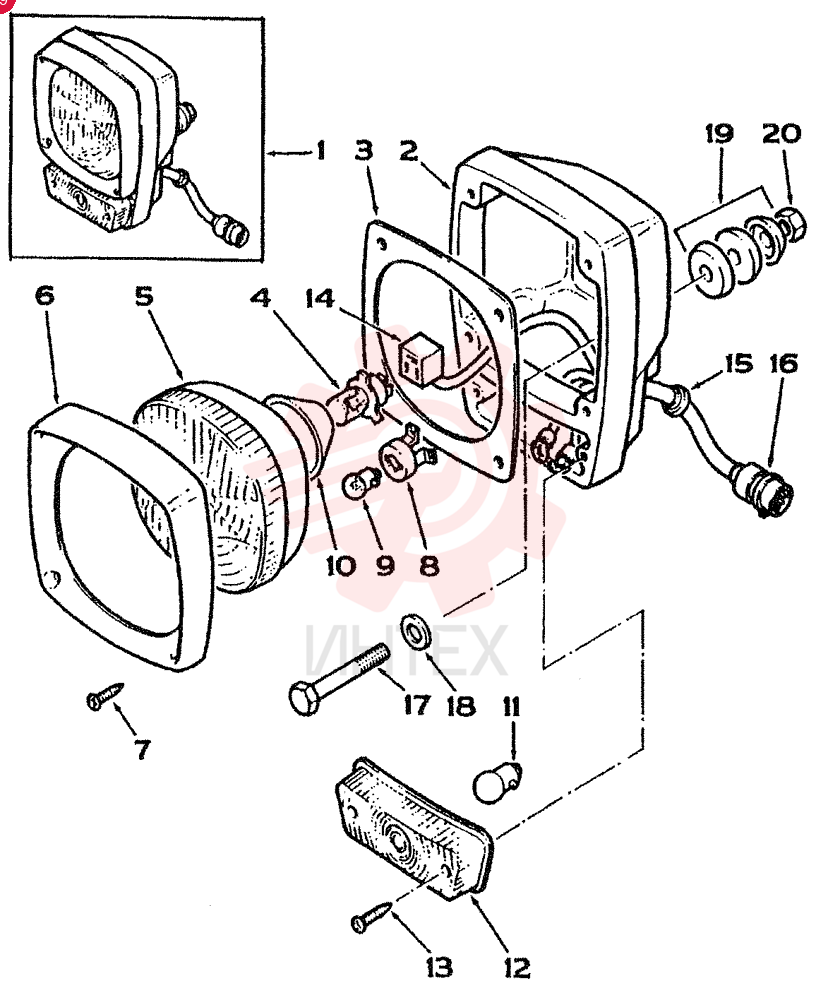

HEADLIGHT

HEADLIGHT

HEADLIGHT

1 3517038M91

  • 3517038M91 - HEADLIGHT
  • HEADLAMP (LEFT HAND DIP) (CONSISTS OF REF. 1
  • 4
  • 5
  • 9
  • 10
  • 14
  • 16
  • 17
  • 20)

2 3517039M91

  • 3517039M91 - HEADLIGHT
  • HEADLAMP (RIGHT HAND DIP) (CONSISTS OF REF. 1
  • 4
  • 5
  • 9
  • 10
  • 14
  • 16
  • 17
  • 20)

3 3523904M91

  • 3523904M91 - CASE ASSY.
  • HOUSING (CONSISTS OF REF.3
  • 6
  • 7
  • 11-13
  • 15
  • 18
  • 19)

4 NSS

  • NSS - NOT SOLD SEPARAT
  • GASKET

5 3523444M1

  • 3523444M1 - BULB
  • 60/55W

6 3523850M91

  • 3523850M91 - LIGHT
  • LENS (LEFT HAND DIP)

7 3523851M91

  • 3523851M91 - LIGHT
  • LENS (RIGHT HAND DIP) (CONSISTS OF REF.8)

8 NSS

  • NSS - NOT SOLD SEPARAT
  • BEZEL

9 NSS

  • NSS - NOT SOLD SEPARAT
  • SCREW (M4 X 30MM)

10 NSS

  • NSS - NOT SOLD SEPARAT
  • HOLDER

11 3523690M1

  • 3523690M1 - BULB
  • 4W

12 NSS

  • NSS - NOT SOLD SEPARAT
  • DUST SHIELD

13 3523687M1

  • 3523687M1 - BULB
  • 21W

14 3523852M1

  • 3523852M1 - LENS

15 NSS

  • NSS - NOT SOLD SEPARAT
  • SCREW (M4 X 30MM)

16 3523450M1

  • 3523450M1 - HEADLIGHT
  • CONNECTOR

17 NSS

  • NSS - NOT SOLD SEPARAT
  • GROMMET

18 3516804M93

  • 3516804M93 - HARNESS
  • CABLE

19 3019855X1

  • 3019855X1 - BOLT
  • (M12 X70MM)

20 NSS

  • NSS - NOT SOLD SEPARAT
  • WASHER

21 NSS

  • NSS - NOT SOLD SEPARAT
  • KIT
  • WASHER

22 3009695X1

  • 3009695X1 - NUT
  • (M12)
