(900) - LOADER BACKHOE (10/97-12/99)
/

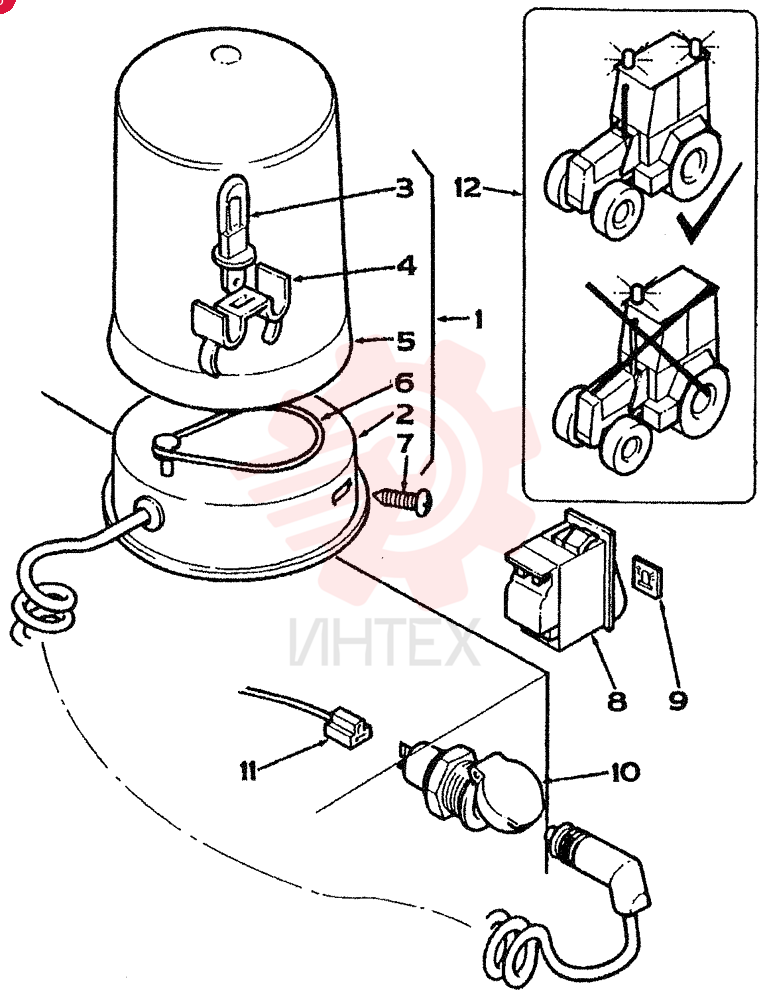

LIGHT, WARNING

LIGHT, WARNING

LIGHT, WARNING

1 3517622M91

  • 3517622M91 - LIGHT
  • WARNING
  • ROTATING LIGHT (CONSISTS OF REF. 2-7) (ACC078)

2 3517622M91

  • 3517622M91 - LIGHT
  • WARNING
  • ROTATING LIGHT (ACC079)

3 NSS

  • NSS - NOT SOLD SEPARAT
  • BASE

4 3523704M1

  • 3523704M1 - BULB
  • HI (12V.55W)

5 6190229M1

  • 6190229M1 - CLIP

6 6190227M1

  • 6190227M1 - LENS

7 6190228M1

  • 6190228M1 - BELT
  • DRIVE BELT

8 365915X1

  • 365915X1 - SCREW

9 3521580M92

  • 3521580M92 - SWITCH

10 1472072M1

  • 1472072M1 - SYMBOLS
  • LENS

11 3517621M91

  • 3517621M91 - SOCKET

12 3521525M94

  • 3521525M94 - HARNESS
  • ("REF ONLY")

13 3517756M1

  • 3517756M1 - DECAL
  • (ACC079)
