(900) - LOADER BACKHOE (10/97-12/99)
/

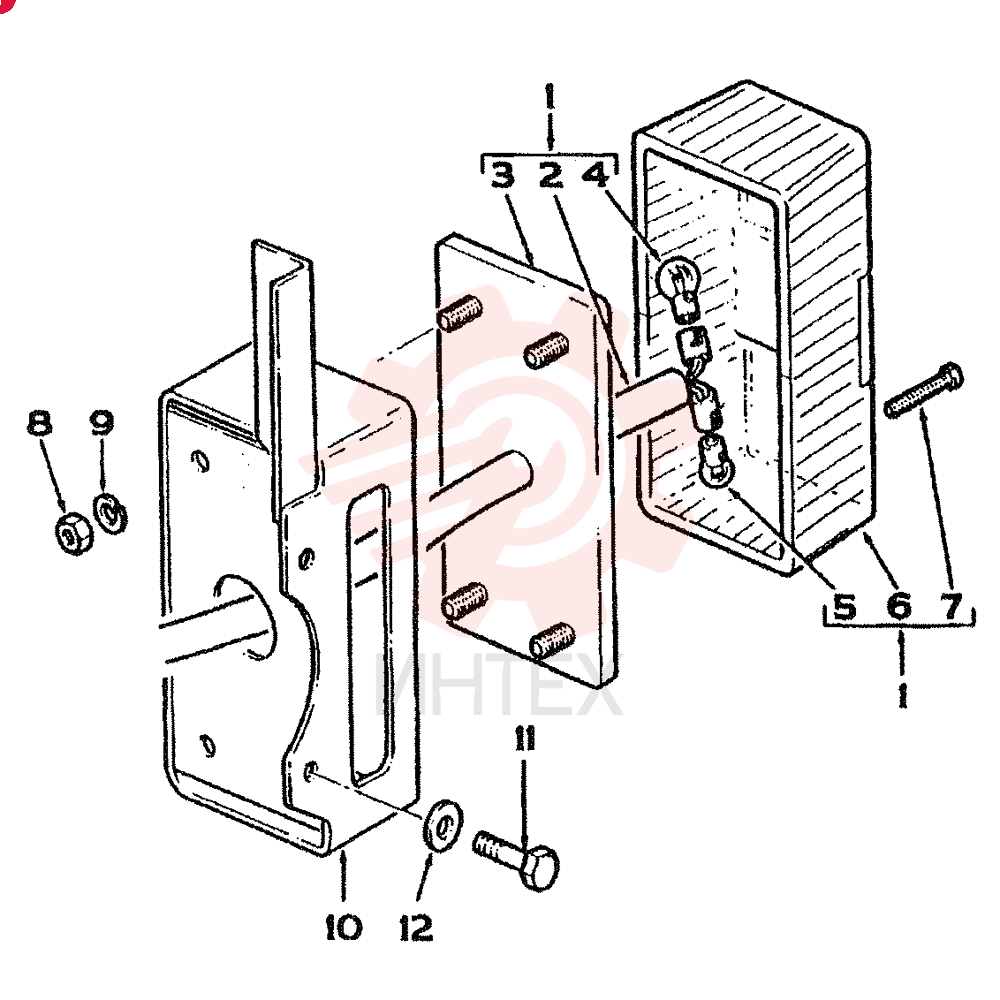

LAMP, TAIL

LAMP, TAIL

LAMP, TAIL

1 3522248M91

  • 3522248M91 - LAMP
  • TAIL
  • REAR LAMP (CONSISTS OF REF. 2-7)

2 NSS

  • NSS - NOT SOLD SEPARAT
  • HARNESS

3 NSS

  • NSS - NOT SOLD SEPARAT
  • BODY

4 3523687M1

  • 3523687M1 - BULB
  • (21W)

5 3523688M1

  • 3523688M1 - BULB
  • (21/5W)

6 1895729M1

  • 1895729M1 - LENS

7 1895730M1

  • 1895730M1 - SCREW

8 357515X1

  • 357515X1 - NUT
  • (NO. 10 UNF)

9 353445X1

  • 353445X1 - WASHER
  • LOCK
  • LOCK WASHER

10 3516914M91

  • 3516914M91 - SUPPORT
  • BRACKET
  • L.H

11 3516915M91

  • 3516915M91 - SUPPORT
  • BRACKET
  • R.H

12 390972X1

  • 390972X1 - WASHER

13 339124X1

  • 339124X1 - SCREW
  • BOLT (M8X 16MM)
