Kobelco
/
(900) - LOADER BACKHOE (10/97-12/99)
/

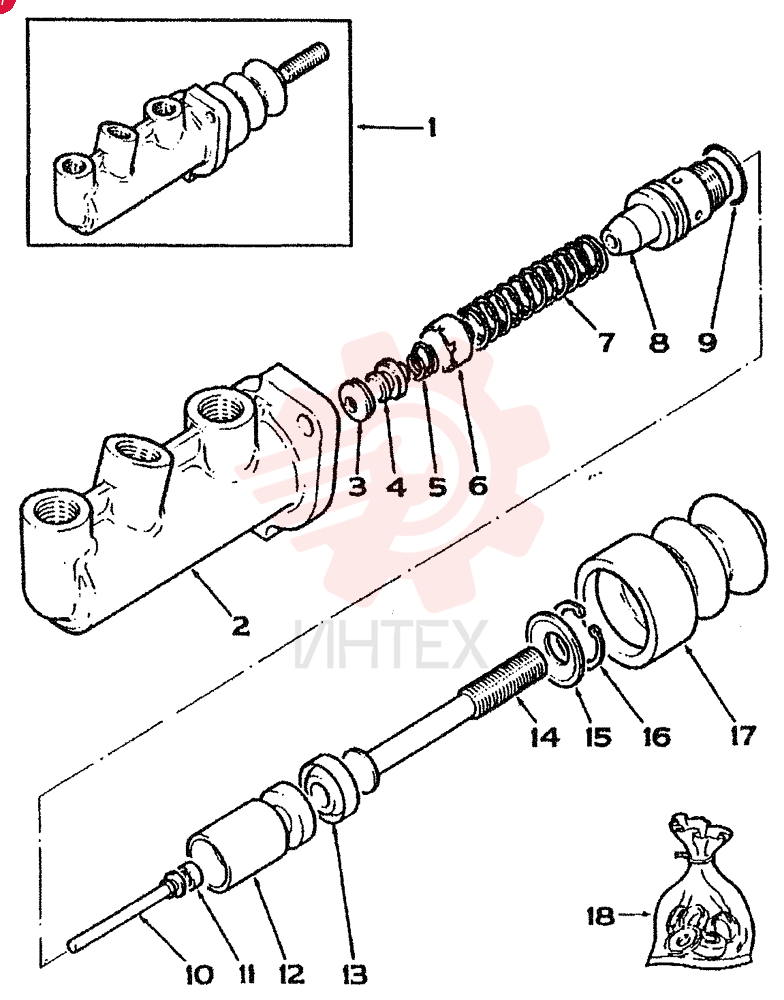

MASTER CYLINDER

MASTER CYLINDER

MASTER CYLINDER

1 3522092M91

  • 3522092M91 - MASTER CYLINDER
  • BRAKE CYLINDER (CONSIST OF REF 2)

2 NSS

  • NSS - NOT SOLD SEPARAT
  • BODY

3 NSS

  • NSS - NOT SOLD SEPARAT
  • VALVE

4 NSS

  • NSS - NOT SOLD SEPARAT
  • VALVE SEAT

5 NSS

  • NSS - NOT SOLD SEPARAT
  • SPRING

6 NSS

  • NSS - NOT SOLD SEPARAT
  • HOUSING

7 NSS

  • NSS - NOT SOLD SEPARAT
  • SPRING

8 NSS

  • NSS - NOT SOLD SEPARAT
  • PISTON

9 NSS

  • NSS - NOT SOLD SEPARAT
  • O-RING

10 NSS

  • NSS - NOT SOLD SEPARAT
  • ROD

11 NSS

  • NSS - NOT SOLD SEPARAT
  • SEAL

12 NSS

  • NSS - NOT SOLD SEPARAT
  • PISTON

13 NSS

  • NSS - NOT SOLD SEPARAT
  • SEAL

14 3523429M1

  • 3523429M1 - ROD

15 3523430M1

  • 3523430M1 - WASHER
  • RETAINER

16 3523431M1

  • 3523431M1 - CIRCLIP
  • SNAP RING

17 3523432M1

  • 3523432M1 - MASTER CYLINDER
  • BOOT

18 3523433M91

  • 3523433M91 - KIT
  • REPAIR
  • CONSISTS OF REF 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13)
