(SK115SRDZ-1E) - SHORT RADIUS EXCAVATOR DOZER ASN YY04-06001 (1/99-12/05)
/

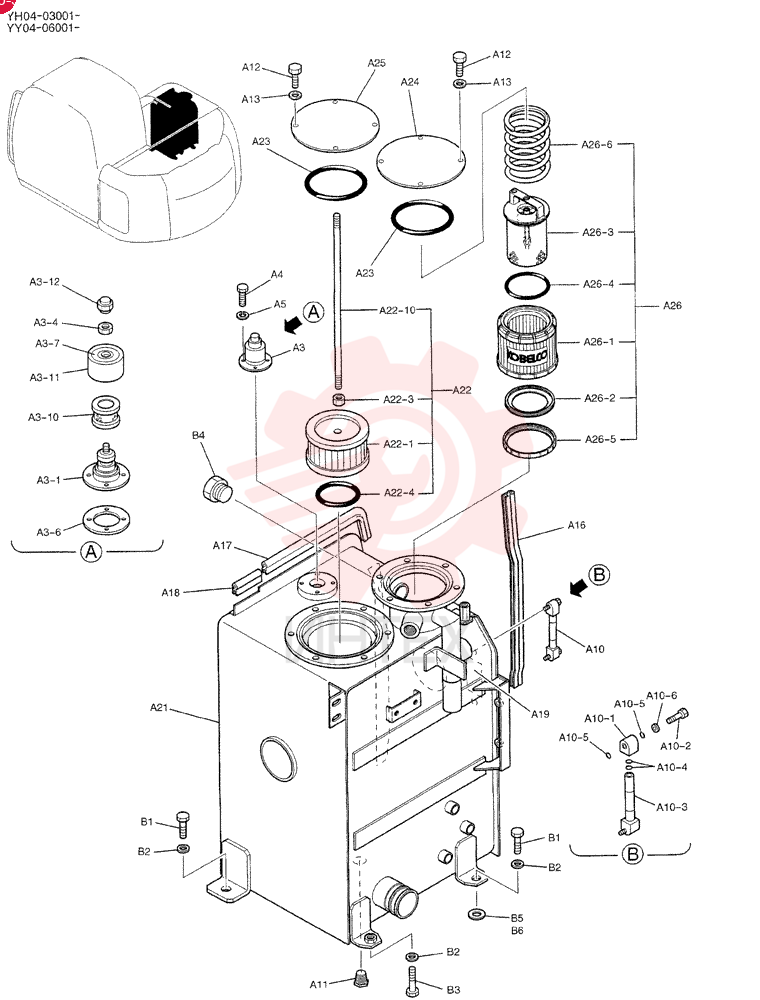

TANK YY33H00013F5 (1)

TANK YY33H00013F5 (1)

TANK YY33H00013F5 (1)

1 YY33H00013F5

  • YY33H00013F5 - TANK

2 YN57V00002F4

  • YN57V00002F4 - BREATHER ASSY.

3 2446U260S1

  • 2446U260S1 - BODY

4 2446U260S5

  • 2446U260S5 - NUT

5 2446U260S8

  • 2446U260S8 - PACKING

6 YN57V00002S007

  • YN57V00002S007 - IDENTITY PLATE

7 YN57V00002S010

  • YN57V00002S010 - ELEMENT

8 YN57V00002S011

  • YN57V00002S011 - COVER

9 YN57V00002S012

  • YN57V00002S012 - CAP

10 ZS28C06016

  • ZS28C06016 - SCREW
  • Hex Socket Head
  • M6 x 16mm

11 ZW26K06000

  • ZW26K06000 - LOCK WASHER

12 YN58S00009F1

  • YN58S00009F1 - GAUGE

13 NSS

  • NSS - NOT SOLD SEPARAT

14 NSS

  • NSS - NOT SOLD SEPARAT

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 NSS

  • NSS - NOT SOLD SEPARAT

18 NSS

  • NSS - NOT SOLD SEPARAT

19 ZE72X08000

  • ZE72X08000 - PLUG

20 ZS18C10020

  • ZS18C10020 - SCREW
  • Hex
  • M10 x 20mm

21 ZW16H10000

  • ZW16H10000 - WASHER

22 YT21C01163D9

  • YT21C01163D9 - WEATHERSEAL STRIP

23 YT21C01163D3

  • YT21C01163D3 - WEATHERSTRIP

24 YA21C01036D4

  • YA21C01036D4 - WEATHERSEAL STRIP

25 YT33H01028P1

  • YT33H01028P1 - LABEL

26 YF33H01020P1

  • YF33H01020P1 - LABEL

27 YY33H00022P1

  • YY33H00022P1 - TANK

28 YW50V00004FA

  • YW50V00004FA - STRAINER ASSY.

29 YN50V00002S001

  • YN50V00002S001 - STRAINER ASSY.

30 ZN11C10008

  • ZN11C10008 - NUT

31 NSS

  • NSS - NOT SOLD SEPARAT

32 YW50V00004S010

  • YW50V00004S010 - BOLT

33 ZD11G16500

  • ZD11G16500 - O-RING
  • 164.30mm ID x 175.70mm OD x 5.70mm

34 YY33H01071P1

  • YY33H01071P1 - COVER

35 YY33H01072P1

  • YY33H01072P1 - COVER

36 YY33H01072P1

  • YY33H01072P1 - COVER

37 YY33H01104P1

  • YY33H01104P1 - COVER

38 YY33H01104P1

  • YY33H01104P1 - COVER

39 YV52V01001F1

  • YV52V01001F1 - ELEMENT

40 YN52V01011P1

  • YN52V01011P1 - FILTER

41 YN52V01008S002

  • YN52V01008S002 - PLATE

42 YV21V00001P1

  • YV21V00001P1 - CHECK VALVE

43 ZD11G09000

  • ZD11G09000 - O-RING
  • 89.40mm ID x 95.60mm OD x 3.10mm

44 YN52V01008S005

  • YN52V01008S005 - PACKING

45 LC33H01009P1

  • LC33H01009P1 - SPRING

46 YV52V01001R100

  • YV52V01001R100 - ELEMENT

47 YY33H00007F1

  • YY33H00007F1 - TANK

48 YY33H00007F2

  • YY33H00007F2 - TANK

49 ZS18C16035

  • ZS18C16035 - SCREW
  • Hex
  • M16 x 35mm

50 ZW16H16000

  • ZW16H16000 - WASHER

51 HS18C16140G1

  • HS18C16140G1 - SCREW

52 ZE72X16000

  • ZE72X16000 - PLUG

53 LE33H01017D1

  • LE33H01017D1 - SHIM
  • 1.0mm Thk

54 LE33H01017D2

  • LE33H01017D2 - SHIM
