(SK115SRDZ-1E) - SHORT RADIUS EXCAVATOR DOZER ASN YY04-06001 (1/99-12/05)
/

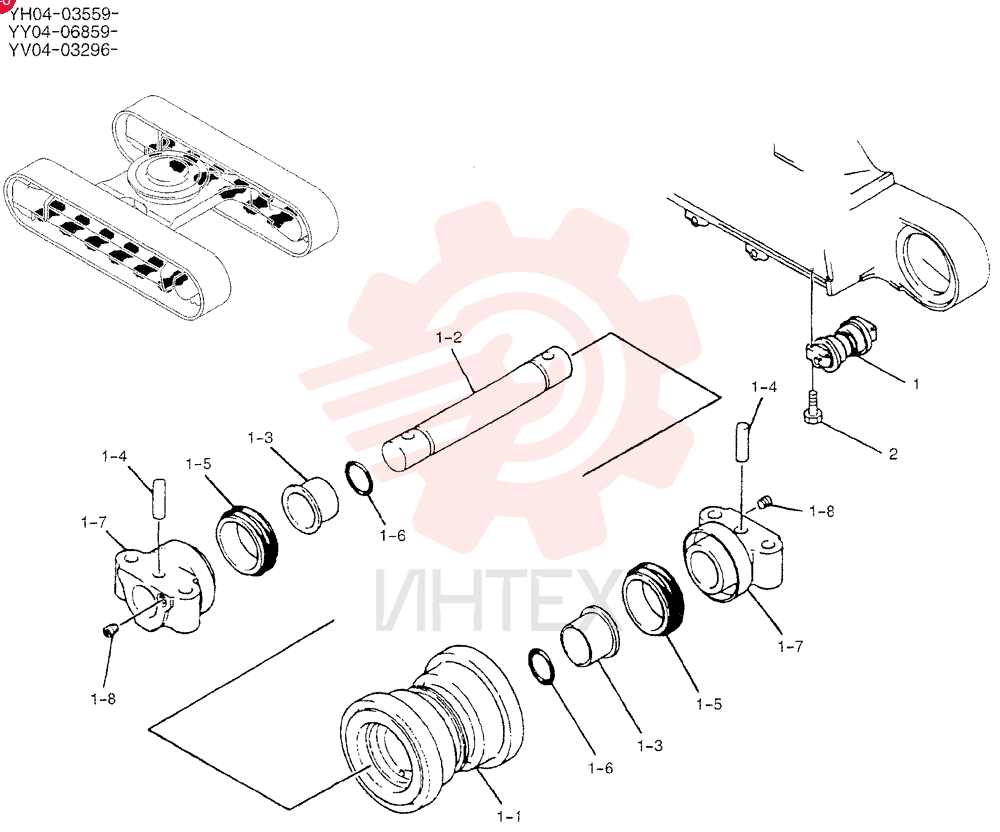

TRACK ROLLER YY64D00018F1 (2)

TRACK ROLLER YY64D00018F1 (2)

TRACK ROLLER YY64D00018F1 (2)

1 YY64D00018F1

  • YY64D00018F1 - TRACK ROLLER

2 YY64D00019F1

  • YY64D00019F1 - ROLLER ASSY
  • TRACK (LC)

3 YY64D00022F1

  • YY64D00022F1 - ROLLER
  • TRACK

4 YY64D00022F1

  • YY64D00022F1 - ROLLER
  • TRACK

5 2413N413

  • 2413N413 - ROLLER

6 YY64D01019P1

  • YY64D01019P1 - SHAFT

7 2405P490

  • 2405P490 - BUSHING
  • 50.2mm ID x 57mm OD x 50mm L

8 YY64D01018P1

  • YY64D01018P1 - PIN

9 2445R440F1

  • 2445R440F1 - SEAL
  • 73mm ID x 96.8mm OD x 33mm Thk

10 ZD11G04500

  • ZD11G04500 - O-RING
  • 44.40mm ID x 50.60mm OD x 3.10mm

11 YY64D01016P1

  • YY64D01016P1 - COLLAR

12 ZE82T04000

  • ZE82T04000 - PLUG

13 LP64D01004P1

  • LP64D01004P1 - SCREW

14 LP64D01004P1

  • LP64D01004P1 - SCREW
