(SK200SR) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/03-12/04)
/

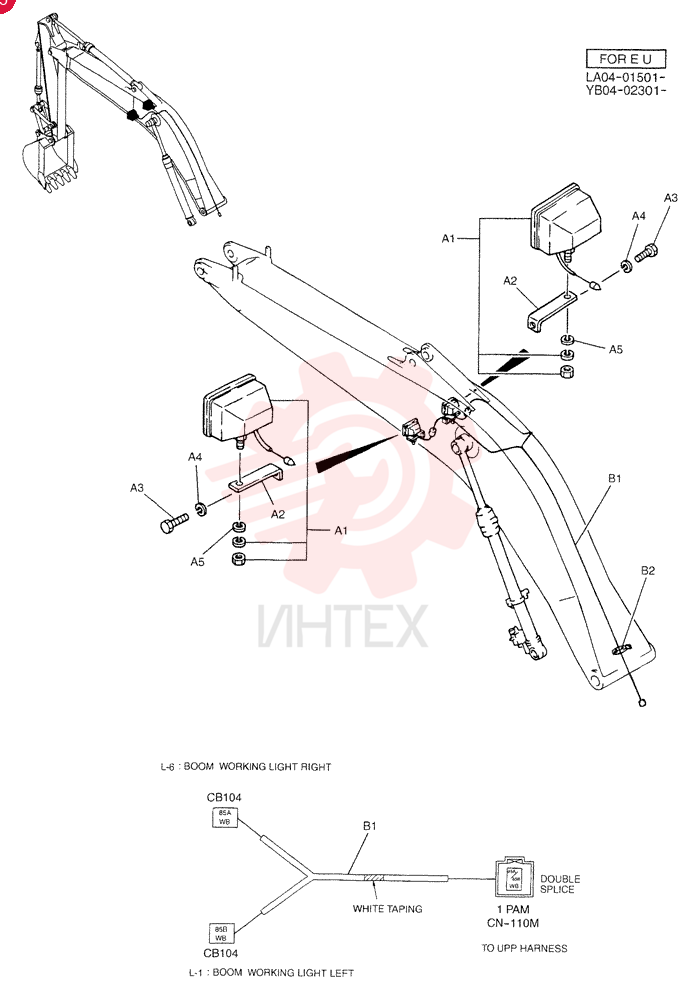

LIGHT LC80E00004F1 (4)

LIGHT LC80E00004F1 (4)

LIGHT LC80E00004F1 (4)

1 LC80E00004F1

  • LC80E00004F1 - LIGHT

2 YW80S00001F1

  • YW80S00001F1 - LIGHT ASSY.

3 2416T13056

  • 2416T13056 - BRACKET

4 ZS18C10020

  • ZS18C10020 - SCREW
  • Hex
  • M10 x 20mm

5 2418R323D11

  • 2418R323D11 - WASHER

6 2418R323D13

  • 2418R323D13 - LOCK WASHER

7 YB15E00002F2

  • YB15E00002F2 - HARNESS ASSY
  • BOOM

8 YN15E01012P1

  • YN15E01012P1 - HARNESS

9 PY01P01043D4

  • PY01P01043D4 - CABLE TIE
  • 4.80mm W x 251mm L
