(SK200SR) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/03-12/04)
/

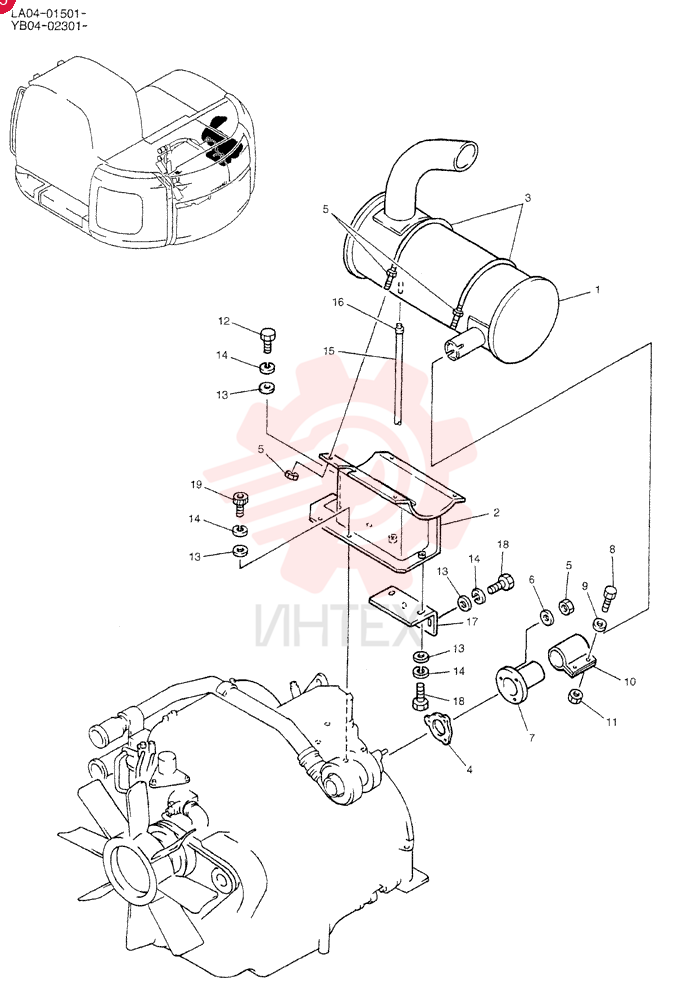

MUFFLER ASSY YB12P00001F1 (4)

MUFFLER ASSY YB12P00001F1 (4)

MUFFLER ASSY YB12P00001F1 (4)

1 YB12P00001F1

  • YB12P00001F1 - MUFFLER ASSY

2 YB12P00002P1

  • YB12P00002P1 - MUFFLER

3 YB12P01005P1

  • YB12P01005P1 - U-BRACKET

4 HR91C08000GK

  • HR91C08000GK - CLAMP

5 ZN18C08007

  • ZN18C08007 - NUT

6 ZW16K08000

  • ZW16K08000 - WASHER
  • 8mm ID x 15.5mm OD x 1.6mm Thk

7 YB12P01001P1

  • YB12P01001P1 - RIGID TUBE

8 ZS18C10035

  • ZS18C10035 - SCREW
  • Hex
  • M10 x 35mm

9 ZW16X10000

  • ZW16X10000 - WASHER

10 YX12P01004P1

  • YX12P01004P1 - CLAMP

11 ZN18C10008

  • ZN18C10008 - NUT

12 ZS18C10025

  • ZS18C10025 - SCREW
  • Hex
  • M10 x 25mm

13 ZW16H10000

  • ZW16H10000 - WASHER

14 ZW26X10000

  • ZW26X10000 - LOCK WASHER

15 HX11Y07086DX

  • HX11Y07086DX - HOSE

16 ZC16X01400

  • ZC16X01400 - CLIP

17 YB12P01004P1

  • YB12P01004P1 - U-BRACKET

18 ZS18C10030

  • ZS18C10030 - SCREW
  • Hex
  • M10 x 30mm

19 ZS28C10025

  • ZS28C10025 - SCREW
  • Hex Socket Head
  • M10 x 25mm

20 VI8943690210

  • VI8943690210 - GASKET
