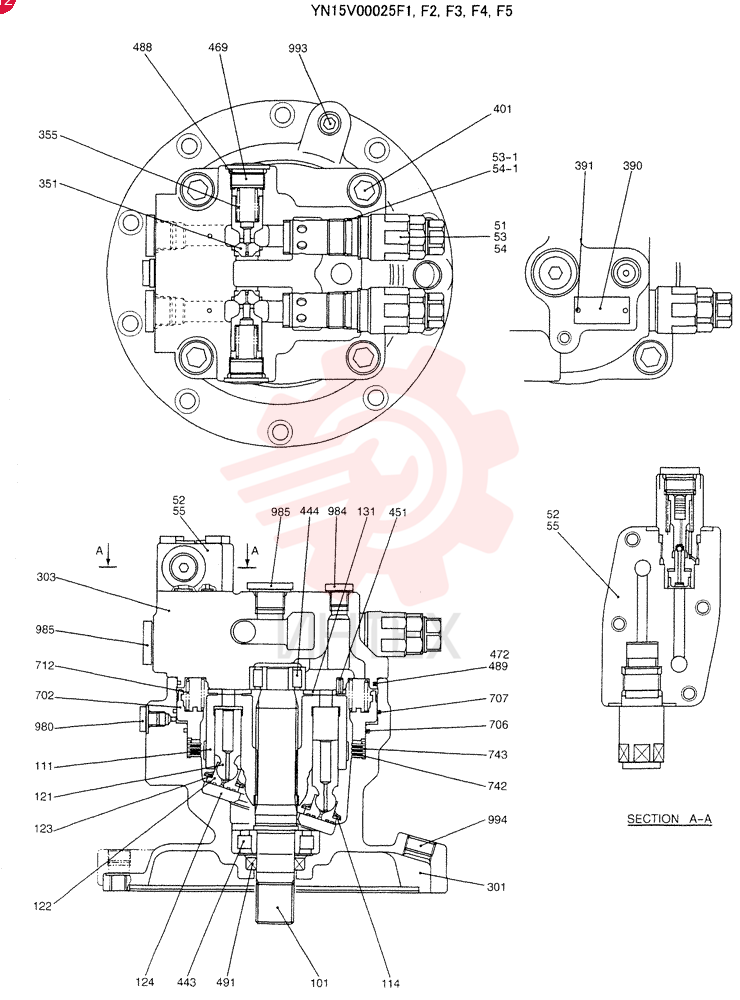

HYDRAULIC MOTOR YN15V00025F1 (2)
1 YN15V00025F1
- YN15V00025F1 - HYDRAULIC MOTOR
2 YN15V00025F2
- YN15V00025F2 - ASSY (SWING)
3 YN15V00025F3
- YN15V00025F3 - MOTOR
4 YN15V00025F5R
- YN15V00025F5R - REMAN-HYD MOTOR
5 YN15V00025F5C
- YN15V00025F5C - CORE-MOTOR HYDRAULIC
6 YN15V00025F4
- YN15V00025F4 - HYDRAULIC MOTOR
- 121.6CC
7 YN15V00025F5
- YN15V00025F5 - MOTOR
8 YN15V00025F5R
- YN15V00025F5R - REMAN-HYD MOTOR
9 YN15V00025F5C
- YN15V00025F5C - CORE-MOTOR HYDRAULIC
10 YN22V00014F1
- YN22V00014F1 - VALVE
11 YN20V00004F1
- YN20V00004F1 - VALVE
12 YN22V00028F1
- YN22V00028F1 - VALVE ASSY
- RELIEF
- (FOR F2 ONLY)
13 ZD12G03000
- ZD12G03000 - O-RING
- 29.40mm ID x 35.60mm OD x 3.10mm
14 YN22V00030F1
- YN22V00030F1 - VALVE
15 ZD12G03000
- ZD12G03000 - O-RING
- 29.40mm ID x 35.60mm OD x 3.10mm
16 YN20V00004F4
- YN20V00004F4 - CONTROL VALVE
17 YN15V00025S101
- YN15V00025S101 - SHAFT
18 YN15V00025S111
- YN15V00025S111 - CYLINDER
19 YN15V00025S114
- YN15V00025S114 - SPRING
20 NSS
- NSS - NOT SOLD SEPARAT
21 NSS
- NSS - NOT SOLD SEPARAT
22 YN15V00025S123
- YN15V00025S123 - PLATE
23 YN15V00025S124
- YN15V00025S124 - PLATE
24 YN15V00025S131
- YN15V00025S131 - PLATE
25 YN15V00025S301
- YN15V00025S301 - CASE
26 NSS
- NSS - NOT SOLD SEPARAT
27 YN15V00002S351
- YN15V00002S351 - HYDRAULIC VALVE
28 YN15V00002S355
- YN15V00002S355 - SPRING
29 2437U407S981
- 2437U407S981 - LABEL
30 2437U407S983
- 2437U407S983 - RIVET
31 ZS23C20045
- ZS23C20045 - CAP
- Hex Socket Head
- M20 x 45mm
32 YN15V00002S011
- YN15V00002S011 - ROLLER BEARING
33 LQ15V00008S010
- LQ15V00008S010 - ROLLER BEARING
34 NSS
- NSS - NOT SOLD SEPARAT
35 YN15V00002S012
- YN15V00002S012 - PLUG
36 2441U564S735
- 2441U564S735 - O-RING
- 3.5mm Thk x 173mm ID
- 75 Duro
37 ZD12P02800
- ZD12P02800 - O-RING
38 YN15V00025S489
- YN15V00025S489 - O-RING
- 3.5mm Thk x 173mm ID
- 75 Duro
39 2441U509S491
- 2441U509S491 - OIL SEAL
40 YN15V00002S014
- YN15V00002S014 - PISTON
41 2441U736S706
- 2441U736S706 - O-RING
42 2415U188S707
- 2415U188S707 - O-RING
43 YN15V00025S712
- YN15V00025S712 - SPRING
- ID1.1mm : OD1.8mm : W=3.7mm (this is spring)
44 YN15V00025S742
- YN15V00025S742 - PLATE
- ID14mm : OD15.5mm : W=1.7mm
45 YN15V00025S743
- YN15V00025S743 - PLATE
- ID14mm : OD15.5mm : W=2mm
46 LQ15V00001S982
- LQ15V00001S982 - PLUG
47 YN15V00002S984
- YN15V00002S984 - PLUG
48 LQ15V00001S983
- LQ15V00001S983 - PLUG
49 ZE82T08000
- ZE82T08000 - PLUG
50 ZE82T12000
- ZE82T12000 - PLUG
51 YN15V00025R100
- YN15V00025R100 - REPAIR KIT
52 YN15V00025R200
- YN15V00025R200 - REPAIR KIT
53 YN15V00025R300
- YN15V00025R300 - SEAL ASSY.
54 YN15V00025R400
- YN15V00025R400 - REPAIR KIT
