(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

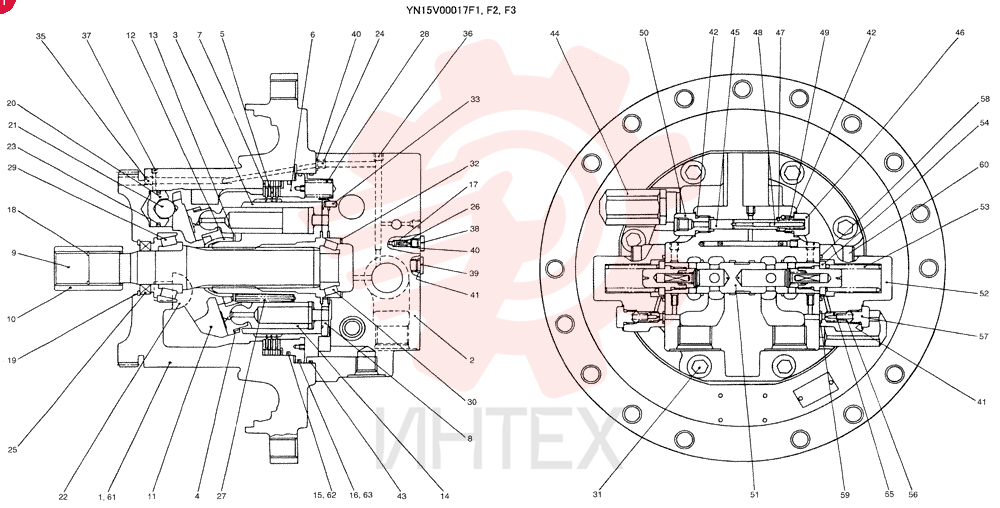

MOTOR YN15V00017F1 (3)

MOTOR YN15V00017F1 (3)

MOTOR YN15V00017F1 (3)

1 YN15V00017F1

  • YN15V00017F1 - MOTOR

2 YN15V00017F2

  • YN15V00017F2 - MOTOR ASSY (PROPELLING)

3 YN15V00017F3

  • YN15V00017F3 - MOTOR

4 YN15V00017S001

  • YN15V00017S001 - BODY

5 YN15V00017S002

  • YN15V00017S002 - COVER

6 YN15V00017S003

  • YN15V00017S003 - BLOCK

7 NSS

  • NSS - NOT SOLD SEPARAT

8 YN15V00009S005

  • YN15V00009S005 - PLATE

9 YN15V00009S006

  • YN15V00009S006 - PISTON

10 YN15V00009S007

  • YN15V00009S007 - PLATE

11 YN15V00017S008

  • YN15V00017S008 - PLATE

12 YN15V00017S009

  • YN15V00017S009 - SHAFT

13 YN15V00017S010

  • YN15V00017S010 - COUPLING

14 NSS

  • NSS - NOT SOLD SEPARAT

15 NSS

  • NSS - NOT SOLD SEPARAT

16 YN15V00017S013

  • YN15V00017S013 - SEAT

17 NSS

  • NSS - NOT SOLD SEPARAT

18 YN15V00009S015

  • YN15V00009S015 - RING

19 YN15V00003S015

  • YN15V00003S015 - O-RING

20 YN15V00017S017

  • YN15V00017S017 - CHECK VALVE

21 ZR26X03200

  • ZR26X03200 - SNAP RING

22 YN15V00009S019

  • YN15V00009S019 - RING

23 YN15V00017S020

  • YN15V00017S020 - PISTON

24 YN15V00017S021

  • YN15V00017S021 - BALL

25 NSS

  • NSS - NOT SOLD SEPARAT

26 YN15V00003S024

  • YN15V00003S024 - SEAL

27 PR30V00010S014

  • PR30V00010S014 - ORIFICE

28 YN15V00009S027

  • YN15V00009S027 - OIL SEAL

29 YN15V00017S026

  • YN15V00017S026 - SPRING

30 2441U820S31

  • 2441U820S31 - SPRING

31 YN15V00017S028

  • YN15V00017S028 - SPRING

32 YN15V00017S029

  • YN15V00017S029 - BEARING

33 YN15V00017S030

  • YN15V00017S030 - BEARING

34 ZS23C16045

  • ZS23C16045 - CAP
  • Hex Socket Head
  • M16 x 45mm

35 YN15V00017S032

  • YN15V00017S032 - SHIM

36 YN15V00017S033

  • YN15V00017S033 - PIN

37 2436U279S3

  • 2436U279S3 - PLUG

38 2436U1427S25

  • 2436U1427S25 - PLUG

39 2436U1749S17

  • 2436U1749S17 - PLUG

40 YN15V00017S038

  • YN15V00017S038 - PLUG

41 2436U1317S13

  • 2436U1317S13 - PLUG

42 ZD12P00800

  • ZD12P00800 - O-RING
  • 1.9mm Thk x 7.8mm ID
  • 90 Duro

43 ZD12P01100

  • ZD12P01100 - O-RING

44 ZD12P01400

  • ZD12P01400 - O-RING

45 YN15V00009S039

  • YN15V00009S039 - O-RING

46 YN22V00013F1

  • YN22V00013F1 - VALVE

47 YN15V00017S045

  • YN15V00017S045 - SPOOL

48 YN15V00017S046

  • YN15V00017S046 - PLUG

49 2436R874S5

  • 2436R874S5 - SPRING SEAT

50 2436R874S6

  • 2436R874S6 - PIN

51 2436R874S7

  • 2436R874S7 - SPRING

52 2436R874S3

  • 2436R874S3 - FLEXIBLE JOINT

53 YN15V00017S051

  • YN15V00017S051 - SPOOL

54 YN15V00017S052

  • YN15V00017S052 - COVER

55 YN15V00017S053

  • YN15V00017S053 - SPRING

56 YN15V00017S054

  • YN15V00017S054 - SEAT

57 2436U1384S8

  • 2436U1384S8 - VALVE

58 2483U223S4

  • 2483U223S4 - SPRING

59 2436U1139S10

  • 2436U1139S10 - PLUG

60 YN15V00017S058

  • YN15V00017S058 - O-RING

61 ZD12P00900

  • ZD12P00900 - O-RING

62 ZS23C12035

  • ZS23C12035 - SCREW
  • Hex Socket Head
  • M12 x 35mm

63 YN15V00017S061

  • YN15V00017S061 - BODY (FOR F2 ONLY)

64 YN15V00017S062

  • YN15V00017S062 - RING

65 YN15V00017S063

  • YN15V00017S063 - RING

66 YN15V00017R100

  • YN15V00017R100 - REPAIR KIT

67 YN15V00017R200

  • YN15V00017R200 - REPAIR KIT

68 YN15V00017R300

  • YN15V00017R300 - REPAIR KIT

69 YN15V00017R400

  • YN15V00017R400 - KIT
