(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

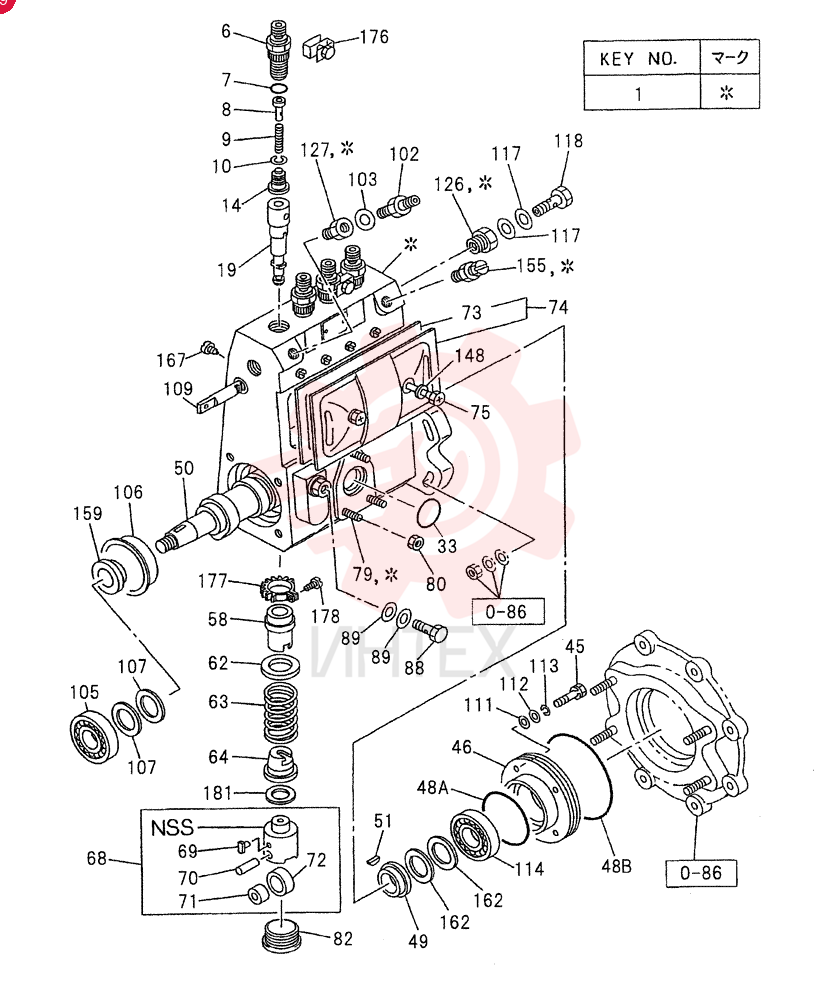

INJECTION PUMP 0-80B (3)

INJECTION PUMP 0-80B (3)

INJECTION PUMP 0-80B (3)

1 0-80B

  • 0-80B - INJECTION PUMP

2 VI8972410323

  • VI8972410323 - PUMP

3 VI8971468110

  • VI8971468110 - HOUSING
  • PUMP
  • FUEL INJ

4 VI1156440090

  • VI1156440090 - HOLDER
  • DELIVERY VLV
  • INJ PUMP

5 VI9812350460

  • VI9812350460 - GASKET
  • HOLDER
  • DELIVERY VLV

6 VI1156490050

  • VI1156490050 - STOPPER
  • DELIVERY VLV
  • INJ PUMP

7 VI1156430140

  • VI1156430140 - SPRING
  • DELIVERY VLV

8 VI1156191030

  • VI1156191030 - GASKET
  • DELIVERY VLV
  • INJ PUMP

9 VI1156410310

  • VI1156410310 - VALVE
  • DELIVERY
  • INJ PUMP

10 VI1156320580

  • VI1156320580 - PLUNGER

11 VI1096230130

  • VI1096230130 - O-RING

12 VI8970850000

  • VI8970850000 - BOLT
  • FRT COVER TO HSG

13 VI8970849990

  • VI8970849990 - COVER
  • FRT
  • PUMP HSG

14 VI1156290760

  • VI1156290760 - GASKET
  • FRT COVER TO HSG

15 VI8970851130

  • VI8970851130 - O-RING

16 VI8970849900

  • VI8970849900 - RING
  • FRT BRG
  • CM/SHF

17 VI8972519070

  • VI8972519070 - CAMSHAFT
  • INJ PUMP

18 VI1156290090

  • VI1156290090 - KEY
  • DRIVE GEAR
  • INJ PUMP

19 VI9812315230

  • VI9812315230 - SLEEVE
  • CONT
  • INJ PUMP

20 VI1156390220

  • VI1156390220 - SEAT
  • PLUNGER SPRING
  • INJ PUMP

21 VI1156340070

  • VI1156340070 - SPRING
  • PLUNGER
  • INJ PUMP

22 VI1156390230

  • VI1156390230 - SEAT
  • PLUNGER SPRING LWR
  • INJ PUMP

23 VI1156220060

  • VI1156220060 - TAPPET
  • CM/SHF
  • INJ PUMP

24 VI1156290180

  • VI1156290180 - GUIDE
  • TAPPET ROLLER
  • INJ PUMP

25 VI9812151850

  • VI9812151850 - PIN
  • TAPPET ROLLER
  • INJ PUMP

26 VI1156191620

  • VI1156191620 - BUSHING
  • TAPPET ROLLER
  • INJ PUMP

27 VI1156290100

  • VI1156290100 - ROLLER
  • TAPPET
  • INJ PUMP

28 VI8943865960

  • VI8943865960 - GASKET

29 VI8941711090

  • VI8941711090 - COVER

30 VI1156190030

  • VI1156190030 - SCREW

31 VI9812151150

  • VI9812151150 - STUD

32 VI8941711100

  • VI8941711100 - NUT

33 VI1156191600

  • VI1156191600 - PLUG
  • HSG
  • INJ PUMP

34 VI9097060370

  • VI9097060370 - BOLT
  • EYE
  • OIL FEED
  • INJ PUMP

35 VI9095720100

  • VI9095720100 - SEAL

36 VI1156194880

  • VI1156194880 - VALVE
  • OVERFLOW
  • INJ PUMP

37 VI1157590010

  • VI1157590010 - O-RING

38 VI1156290030

  • VI1156290030 - BEARING

39 VI1156290020

  • VI1156290020 - BEARING

40 VI1156191590

  • VI1156191590 - RING
  • HSG
  • INJ PUMP

41 VI1156290070

  • VI1156290070 - SHIM

42 VI1156290080

  • VI1156290080 - SHIM

43 VI1156291050

  • VI1156291050 - SHIM

44 VI9812250490

  • VI9812250490 - SHIM

45 VI9812250500

  • VI9812250500 - SHIM

46 VI9812250510

  • VI9812250510 - SHIM

47 VI9812250520

  • VI9812250520 - SHIM

48 VI9812250530

  • VI9812250530 - SHIM

49 VI9812250540

  • VI9812250540 - SHIM

50 VI5156370020

  • VI5156370020 - RACK

51 VI1156290240

  • VI1156290240 - GASKET
  • FRT COVER FIX

52 VI8970850010

  • VI8970850010 - SHIM
  • FRT COVER FIX

53 VI8941289280

  • VI8941289280 - WASHER
  • LK
  • FRT COVER TO HSG

54 VI8970849890

  • VI8970849890 - BEARING
  • CM/SHF FRT
  • INJ PUMP

55 VI1157590010

  • VI1157590010 - O-RING

56 VI1156190820

  • VI1156190820 - BOLT

57 VI9812350170

  • VI9812350170 - ADAPTER

58 VI8970416620

  • VI8970416620 - ADAPTER
  • FUEL PIPE

59 VI9812151440

  • VI9812151440 - GASKET

60 VI1156191910

  • VI1156191910 - BOLT
  • AIR BLEED
  • INJ PUMP

61 VI1156290040

  • VI1156290040 - RING

62 VI8970849910

  • VI8970849910 - SHIM
  • FRT BRG
  • CM/SHF (T=0.10)

63 VI8970849920

  • VI8970849920 - SHIM
  • FRT BRG
  • CM/SHF (T=0.12)

64 VI8970849930

  • VI8970849930 - SHIM
  • FRT BRG
  • CM/SHF (T=0.14)

65 VI8970849940

  • VI8970849940 - SHIM
  • FRT BRG
  • CM/SHF (T=0.16)

66 VI8970849950

  • VI8970849950 - SHIM
  • FRT BRG
  • CM/SHF (T=0.18)

67 VI8970849960

  • VI8970849960 - SHIM
  • FRT BRG
  • CM/SHF (T=0.30)

68 VI8970849970

  • VI8970849970 - SHIM
  • FRT BRG
  • CM/SHF (T=0.50)

69 VI8970849980

  • VI8970849980 - SHIM
  • FRT BRG
  • CM/SHF (T=1.00)

70 VI8971216200

  • VI8971216200 - SHIM
  • FRT BRG
  • CM/SHF (T=0.70)

71 VI1156390030

  • VI1156390030 - SCREW

72 VI5156250010

  • VI5156250010 - SPRING

73 VI9812250570

  • VI9812250570 - PINION

74 VI9812350030

  • VI9812350030 - SCREW

75 VI5156190340

  • VI5156190340 - SHIM

76 VI5156190350

  • VI5156190350 - SHIM

77 VI5156190360

  • VI5156190360 - SHIM

78 VI5156190010

  • VI5156190010 - SHIM

79 VI5156190020

  • VI5156190020 - SHIM

80 VI5156190030

  • VI5156190030 - SHIM

81 VI5156190040

  • VI5156190040 - SHIM

82 VI5156190050

  • VI5156190050 - SHIM

83 VI5156190070

  • VI5156190070 - SHIM

84 VI5156190080

  • VI5156190080 - SHIM

85 VI5156190090

  • VI5156190090 - SHIM

86 VI5156190100

  • VI5156190100 - SHIM

87 VI5156190110

  • VI5156190110 - SHIM

88 VI5156190120

  • VI5156190120 - SHIM

89 VI5156190130

  • VI5156190130 - SHIM

90 VI5156190150

  • VI5156190150 - SHIM

91 VI9812350420

  • VI9812350420 - SHIM

92 VI9812350430

  • VI9812350430 - SHIM

93 VI9812350440

  • VI9812350440 - SHIM

94 VI9812350450

  • VI9812350450 - SHIM

95 VI5156190250

  • VI5156190250 - SHIM

96 VI5156190260

  • VI5156190260 - SHIM

97 VI5156190270

  • VI5156190270 - SHIM

98 VI5156190370

  • VI5156190370 - SHIM

99 VI5156191060

  • VI5156191060 - SHIM

100 VI5156191070

  • VI5156191070 - SHIM

101 VI5156191080

  • VI5156191080 - SHIM

102 VI5156191090

  • VI5156191090 - SHIM

103 VI5156191100

  • VI5156191100 - SHIM
