(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

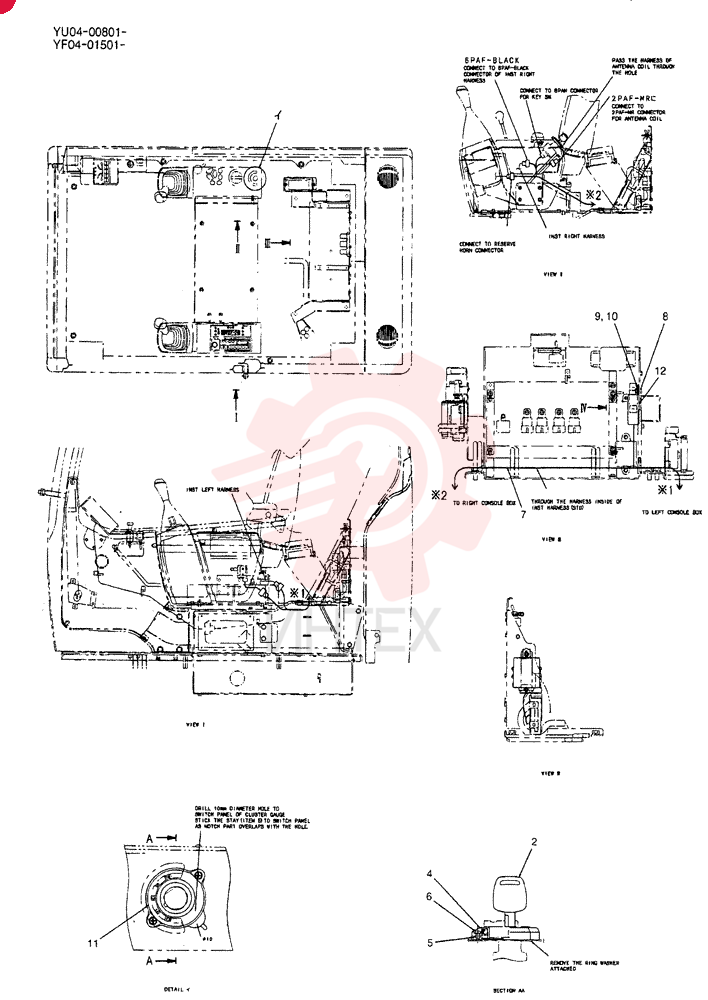

WRENCH YN01E00004F2 (1)

WRENCH YN01E00004F2 (1)

WRENCH YN01E00004F2 (1)

1 YN01E00004F2

  • YN01E00004F2 - WRENCH

2 YN01E01005P1

  • YN01E01005P1 - IGNITION KEY

3 YN54S00009P1

  • YN54S00009P1 - ANTENNA

4 YN54S01001P1

  • YN54S01001P1 - STAY

5 ZS31C03005

  • ZS31C03005 - SCREW

6 YT13E01040P2

  • YT13E01040P2 - WIRE HARNESS

7 ZM61C06030

  • ZM61C06030 - BOLT

8 ZW16X06000

  • ZW16X06000 - WASHER

9 ZN16C06005

  • ZN16C06005 - NUT

10 YN01E01007P1

  • YN01E01007P1 - LABEL

11 YN54S00025P2

  • YN54S00025P2 - CLUTCH
