(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

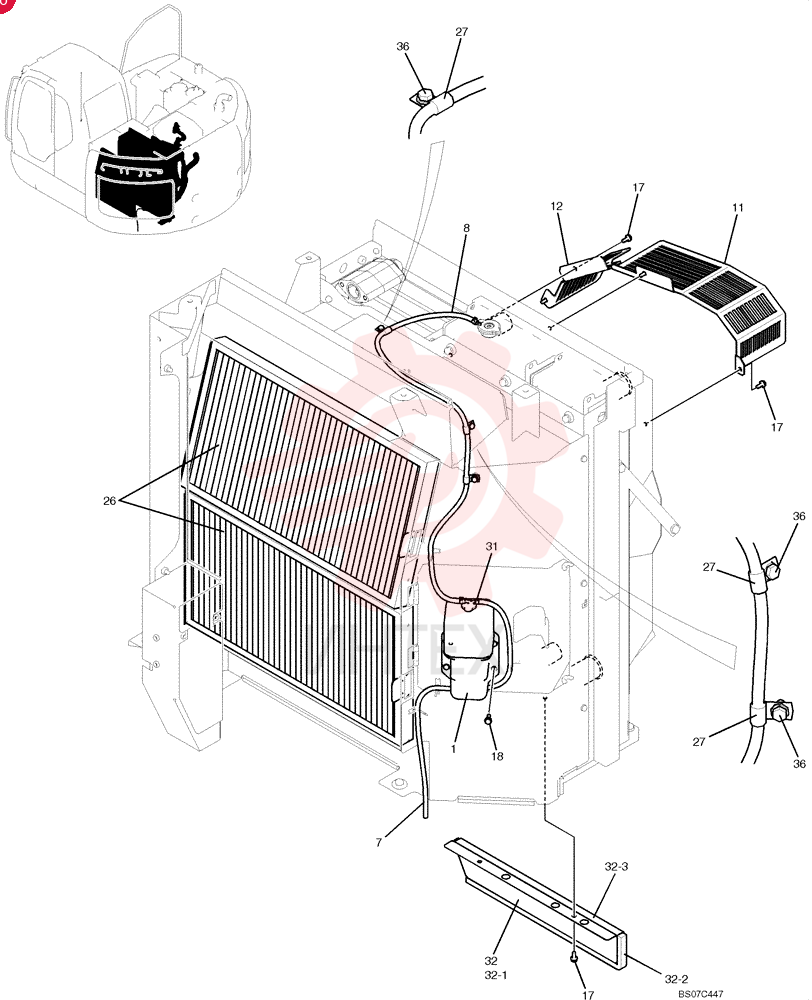

TANK YN05P01496F1

TANK YN05P01496F1

TANK YN05P01496F1

1 YN05P01496F1

  • YN05P01496F1 - TANK

2 HX11Y05100DX

  • HX11Y05100DX - FLEXIBLE HOSE

3 NSS

  • NSS - NOT SOLD SEPARAT

4 YN05P01513P1

  • YN05P01513P1 - GUARD

5 YN05P01512P1

  • YN05P01512P1 - GUARD

6 ZM73C08020

  • ZM73C08020 - BOLT
  • M8x20mm - Course Thread

7 ZM73C08020

  • ZM73C08020 - BOLT
  • M8x20mm - Course Thread

8 ZM73C08025

  • ZM73C08025 - BOLT
  • M8x25mm - Course Thread

9 YB50V01006P1

  • YB50V01006P1 - FILTER

10 ZC46X11009

  • ZC46X11009 - CLIP

11 PH05P01088D6

  • PH05P01088D6 - CLIP

12 YB05P01143F1

  • YB05P01143F1 - PLATE

13 YB05P01133P1

  • YB05P01133P1 - PLATE

14 YB05P01134P1

  • YB05P01134P1 - RUBBER BAND

15 YB05P01146P1

  • YB05P01146P1 - FOAM INSULATION

16 ZM73C08016

  • ZM73C08016 - BOLT
  • M8x16mm - Course Thread
