(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

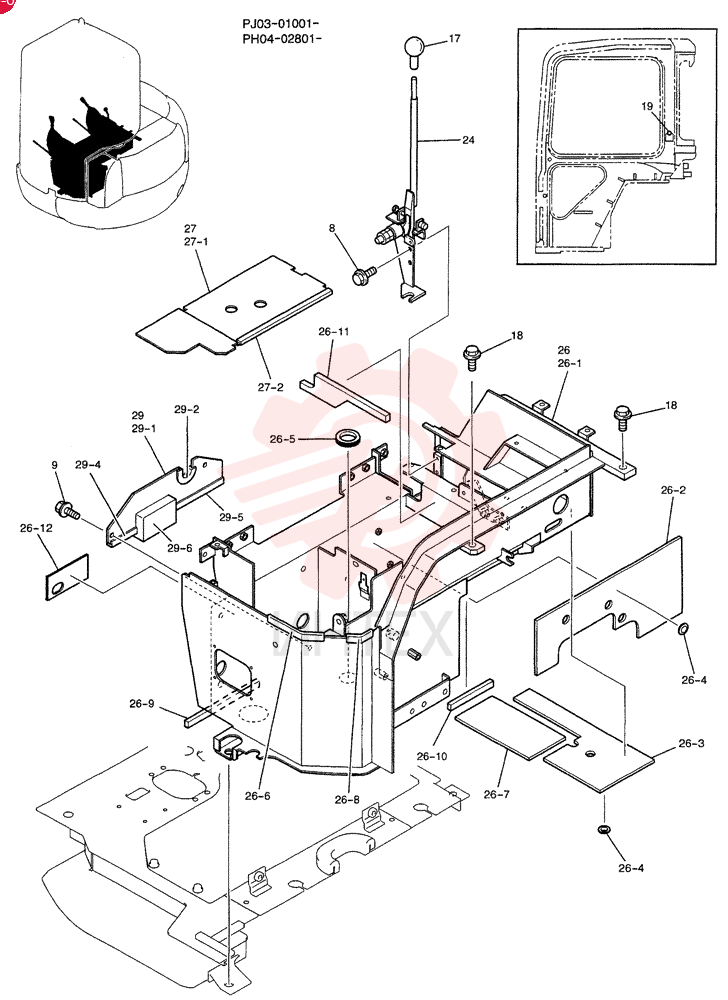

STAND ASSY,CONTROL(STD) PM10M00001F6 (2)

STAND ASSY,CONTROL(STD) PM10M00001F6 (2)

STAND ASSY,CONTROL(STD) PM10M00001F6 (2)

1 PM10M00001F6

  • PM10M00001F6 - STAND ASSY
  • CONTROL(STD)

2 ZM22C08020

  • ZM22C08020 - BOLT

3 ZM22C12040

  • ZM22C12040 - BOLT

4 PA03M01093D2

  • PA03M01093D2 - BOLT

5 PH03M01397F2

  • PH03M01397F2 - STAND

6 PH03M01396P1

  • PH03M01396P1 - STAND

7 PW03M01252P2

  • PW03M01252P2 - FOAM INSULATION

8 PW03M01253P1

  • PW03M01253P1 - FOAM INSULATION

9 2418T8864

  • 2418T8864 - WASHER

10 YN25M01045P1

  • YN25M01045P1 - GROMMET

11 PN02C01004D6

  • PN02C01004D6 - SEAL PROTECTION

12 PM03M01470P1

  • PM03M01470P1 - FOAM INSULATION

13 PN02C01004DA

  • PN02C01004DA - CAP

14 PM03M01435D4

  • PM03M01435D4 - RUBBER

15 PM03M01364D2

  • PM03M01364D2 - RUBBER INSULATOR

16 PM03M01459P1

  • PM03M01459P1 - RUBBER

17 PM03M01365P1

  • PM03M01365P1 - RUBBER SLEEVE

18 PH03M01400F1

  • PH03M01400F1 - COVER ASSY

19 PH03M01399P1

  • PH03M01399P1 - COVER

20 PE21C01070D4

  • PE21C01070D4 - CAP

21 PH03M01422F2

  • PH03M01422F2 - COVER ASSY

22 PH03M01421P1

  • PH03M01421P1 - COVER

23 PM22C01020D5

  • PM22C01020D5 - TRIM PANEL

24 PM03M01364D3

  • PM03M01364D3 - RUBBER SLEEVE

25 PM03M01364D4

  • PM03M01364D4 - RUBBER SLEEVE

26 PW03M01241P1

  • PW03M01241P1 - RUBBER

27 PM10M00001F8

  • PM10M00001F8 - STAND ASSY
  • CONTROL(LEVER)

28 ZM22C08016

  • ZM22C08016 - BOLT

29 PV03M01043P1

  • PV03M01043P1 - HANDLE GRIP

30 YJ03M01046F2

  • YJ03M01046F2 - LEVER
