(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

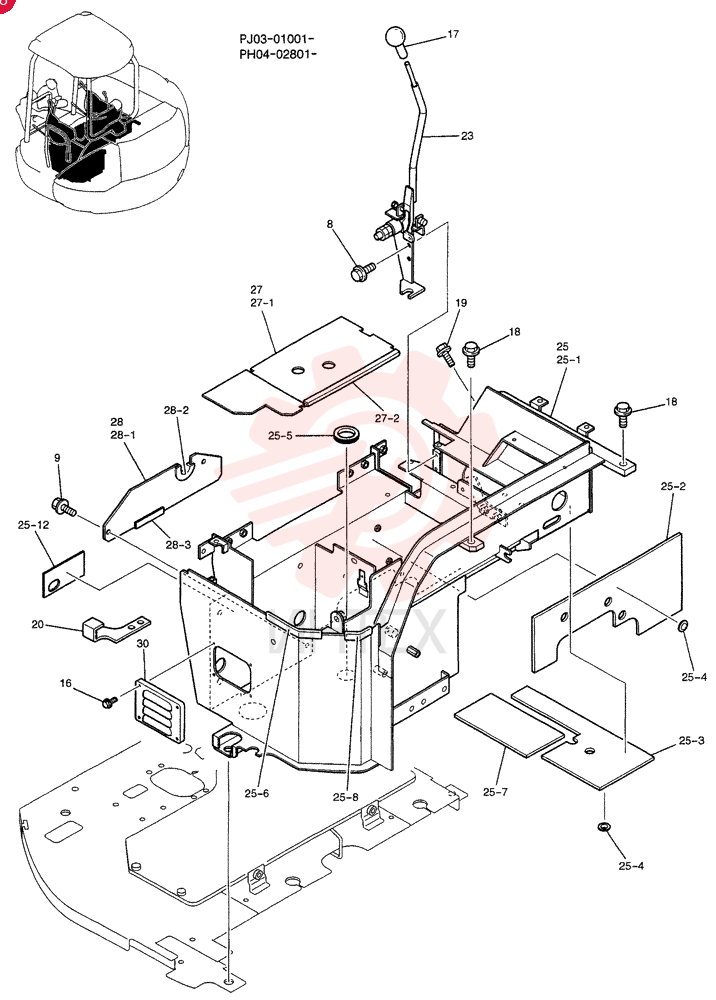

STAND ASSY, CONTROL (STD) PM10M00001F5 (2)

STAND ASSY, CONTROL (STD) PM10M00001F5 (2)

STAND ASSY, CONTROL (STD) PM10M00001F5 (2)

1 PM10M00001F5

  • PM10M00001F5 - STAND ASSY
  • CONTROL (STD)

2 ZM22C08020

  • ZM22C08020 - BOLT

3 PA03M01165D2

  • PA03M01165D2 - BOLT

4 ZM22C12040

  • ZM22C12040 - BOLT

5 PA03M01093D2

  • PA03M01093D2 - BOLT

6 PM03M01475P1

  • PM03M01475P1 - PLATE

7 PH03M01397F1

  • PH03M01397F1 - STAND

8 PH03M01396P1

  • PH03M01396P1 - STAND

9 PW03M01252P2

  • PW03M01252P2 - FOAM INSULATION

10 PW03M01253P1

  • PW03M01253P1 - FOAM INSULATION

11 2418T8864

  • 2418T8864 - WASHER

12 YN25M01045P1

  • YN25M01045P1 - GROMMET

13 PN02C01004D6

  • PN02C01004D6 - SEAL PROTECTION

14 PM03M01470P1

  • PM03M01470P1 - FOAM INSULATION

15 PN02C01004DA

  • PN02C01004DA - CAP

16 PM03M01365P1

  • PM03M01365P1 - RUBBER SLEEVE

17 PH03M01400F1

  • PH03M01400F1 - COVER ASSY

18 PH03M01399P1

  • PH03M01399P1 - COVER

19 PE21C01070D4

  • PE21C01070D4 - CAP

20 PH03M01422F1

  • PH03M01422F1 - COVER ASSY

21 PH03M01421P1

  • PH03M01421P1 - COVER

22 PM22C01020D5

  • PM22C01020D5 - TRIM PANEL

23 YA21C01019D2

  • YA21C01019D2 - CAP

24 PH03M01384P1

  • PH03M01384P1 - COVER

25 PM10M00001F7

  • PM10M00001F7 - STAND ASSY
  • CONTROL

26 ZM22C08016

  • ZM22C08016 - BOLT

27 PV03M01043P1

  • PV03M01043P1 - HANDLE GRIP

28 YJ03M01046F3

  • YJ03M01046F3 - LEVER ASSY.
