New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

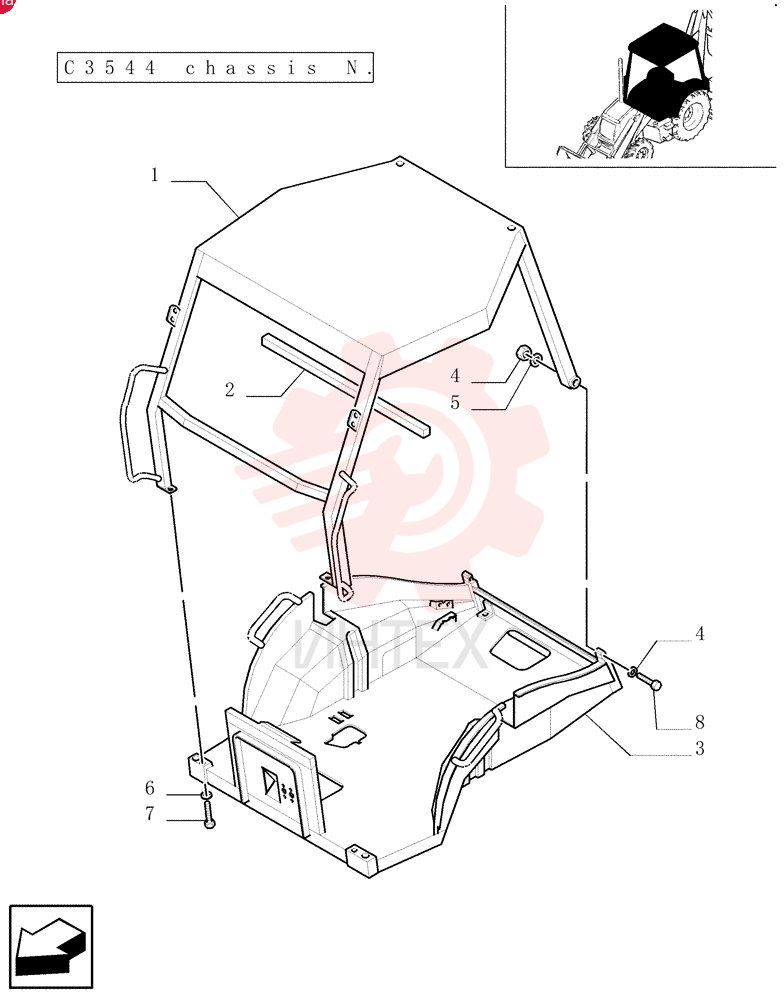

ROPS 85802012

ROPS 85802012

ROPS 85802012

1 85802012

  • 85802012 - ROPS

2 85801970

  • 85801970 - GASKET
  • 800mm L x 20mm W x 4mm Thk

3 85802013

  • 85802013 - PLATFORM

4 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

5 12577721

  • 12577721 - NUT
  • M20 x 2.5
  • Cl 10

6 10520321

  • 10520321 - WASHER
  • 18.4mm ID x 32mm OD x 4mm Thk

7 15202934

  • 15202934 - BOLT
  • Hex
  • M18 x 2.5 x 55mm
  • Cl 10.9

8 15203134

  • 15203134 - BOLT
  • Hex
  • M18 x 2.5 x 130mm
  • Cl 10.9

9 11125631

  • 11125631 - BOLT
  • Hex
  • M20 x 95
  • 10.9
