(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

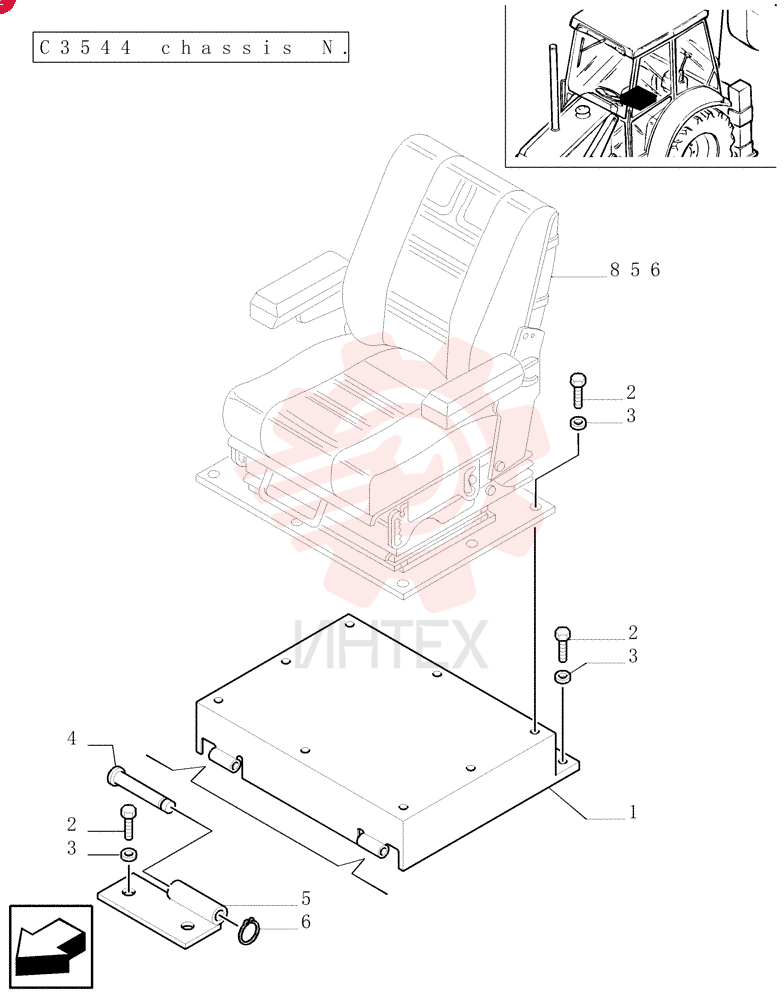

SUPPORT 85802085

SUPPORT 85802085

SUPPORT 85802085

1 85802085

  • 85802085 - SUPPORT

2 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

3 10519624

  • 10519624 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

4 85802090

  • 85802090 - PIN
  • 10mm OD x 107mm L

5 85802087

  • 85802087 - HINGE

6 85802127

  • 85802127 - HINGE

7 11088076

  • 11088076 - CIRCLIP
  • M10
