New Holland Construction
/
(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

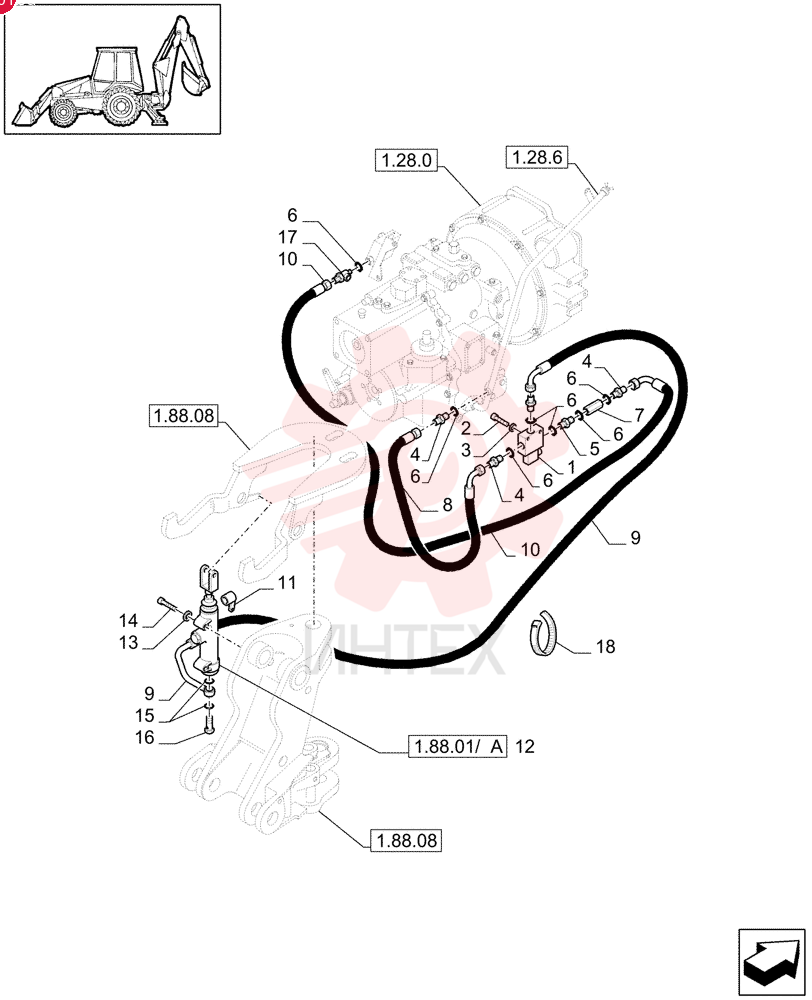

SOLENOID VALVE 85809298 (3)

SOLENOID VALVE 85809298 (3)

SOLENOID VALVE 85809298 (3)

1 85809298

  • 85809298 - SOLENOID VALVE

2 10903221

  • 10903221 - SCREW
  • Hex
  • M6 x 40mm
  • Cl 8.8

3 11197774

  • 11197774 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

4 85803312

  • 85803312 - HYD CONNECTOR
  • 7/16"-20 JIC x 9/16"-18 ORB

5 85803313

  • 85803313 - HYD CONNECTOR
  • 9/16" - 18 ORB x 9/16" - 18 ORB

6 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

7 85803307

  • 85803307 - CHECK VALVE

8 85803309

  • 85803309 - HYDRAULIC HOSE
  • 450mm lg

9 85819601

  • 85819601 - HYDRAULIC HOSE
  • 6.4mm ID x 4000mm L

10 85803308

  • 85803308 - FLEXIBLE HOSE
  • 1000mm lg

11 85802890

  • 85802890 - CLAMP
  • 28mm
  • Coat
  • 12.5mm Bolt Hole
  • P Type

12 85812226

  • 85812226 - HYDRAULIC CYLINDER

13 87362349R

  • 87362349R - REMAN-HYD CYLINDER

14 87362349C

  • 87362349C - CORE-HYD CYLINDER

15 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

16 16044424

  • 16044424 - BOLT
  • Hex
  • M8 x 1.25 x 60mm
  • Cl 8.8

17 2854292

  • 2854292 - SEALING WASHER
  • 12mm ID x 17mm OD x 1.5mm Thk

18 5155703

  • 5155703 - BANJO BOLT
  • M12 x 1.25 x 22mm

19 85806170

  • 85806170 - TEE

20 79072960

  • 79072960 - CABLE TIE
  • 200mm L

21 85803332

  • 85803332 - CABLE TIE
  • M4.8 x 180
