(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

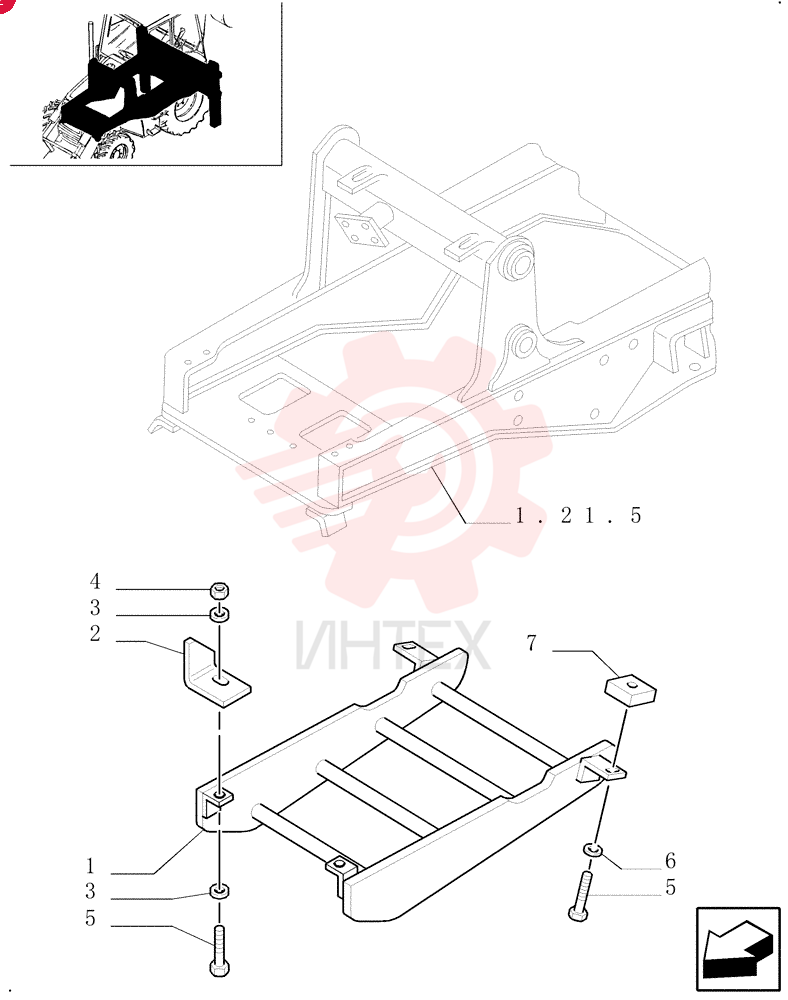

SHIELD 85807888

SHIELD 85807888

SHIELD 85807888

1 85807888

  • 85807888 - SHIELD

2 85807812

  • 85807812 - FRAME

3 85806068

  • 85806068 - SUPPORT

4 85806069

  • 85806069 - SUPPORT

5 14496921

  • 14496921 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

6 15504021

  • 15504021 - NUT
  • M16 x 1.5

7 11391534

  • 11391534 - BOLT
  • Hex
  • M16 x 1.5 x 45
  • 10.9
  • Full Thd

8 10517274

  • 10517274 - LOCK WASHER
  • 16.2mm ID x 27.7mm OD x 4mm Thk

9 85806070

  • 85806070 - PLATE
