(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

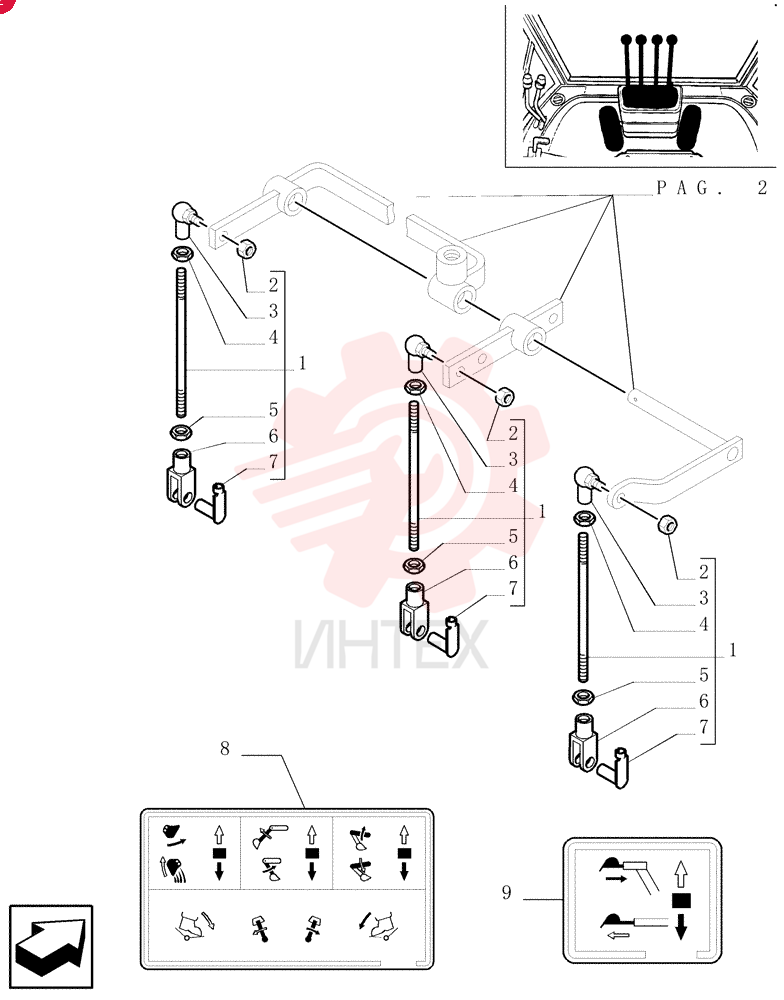

TIE-ROD 85804803 (2)

TIE-ROD 85804803 (2)

TIE-ROD 85804803 (2)

1 85804803

  • 85804803 - TIE-ROD

2 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

3 85804375

  • 85804375 - BALL JOINT
  • M8

4 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

5 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

6 11991971

  • 11991971 - CLEVIS
  • M8

7 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

8 85803916

  • 85803916 - DECAL

9 85803787

  • 85803787 - DECAL
