(555E) - TRACTOR LOADER BACKHOE (1/96-)
/

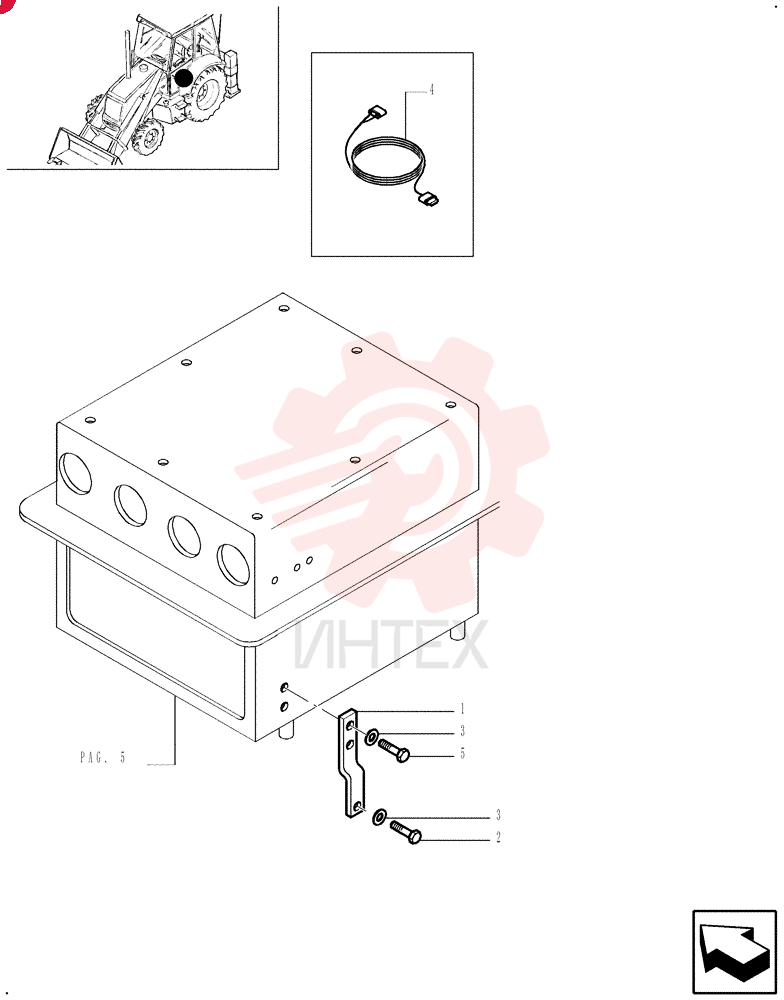

SUPPORT 85804989

SUPPORT 85804989

SUPPORT 85804989

1 85804989

  • 85804989 - SUPPORT

2 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

3 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

4 85804058

  • 85804058 - WIRE HARNESS

5 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd
