New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

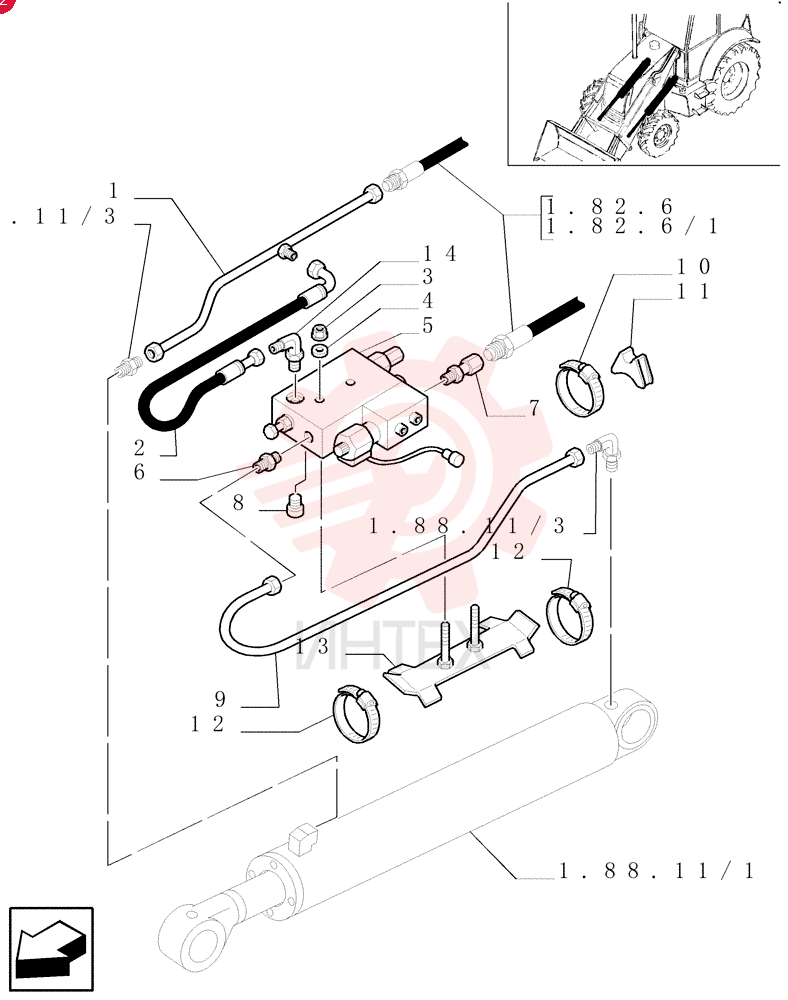

TUBE,12 mm OD x 440, 70 mm L

TUBE,12 mm OD x 440, 70 mm L

TUBE,12 mm OD x 440, 70 mm L

1 85805266

  • 85805266 - TUBE
  • 12 mm OD x 440
  • 70 mm L

2 85815506

  • 85815506 - FLEXIBLE HOSE
  • 6.35mm ID x 300mm L

3 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

4 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

5 85805223

  • 85805223 - HYDRAULIC VALVE

6 390953S36

  • 390953S36 - HYD CONNECTOR

7 85805217

  • 85805217 - FITTING
  • 13/16"-16 ORFS Fem x 3/4"-16 ORB

8 85802805

  • 85802805 - PLUG
  • 9/16" - 18

9 85805271

  • 85805271 - HYD TUBE
  • 12 mm OD x 534
  • 60 mm L

10 85805273

  • 85805273 - HYD TUBE

11 85803008

  • 85803008 - HOSE CLAMP
  • 110mm - 130mm

12 7708312

  • 7708312 - SPACER

13 13001290

  • 13001290 - HOSE CLAMP
  • 90mm - 110mm
  • Worm Gear

14 85805221

  • 85805221 - SUPPORT

15 85805220

  • 85805220 - ELBOW
  • 90 Degree
  • 9/16"-18 x 9/16"-18 Adj
  • ORFS
