New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

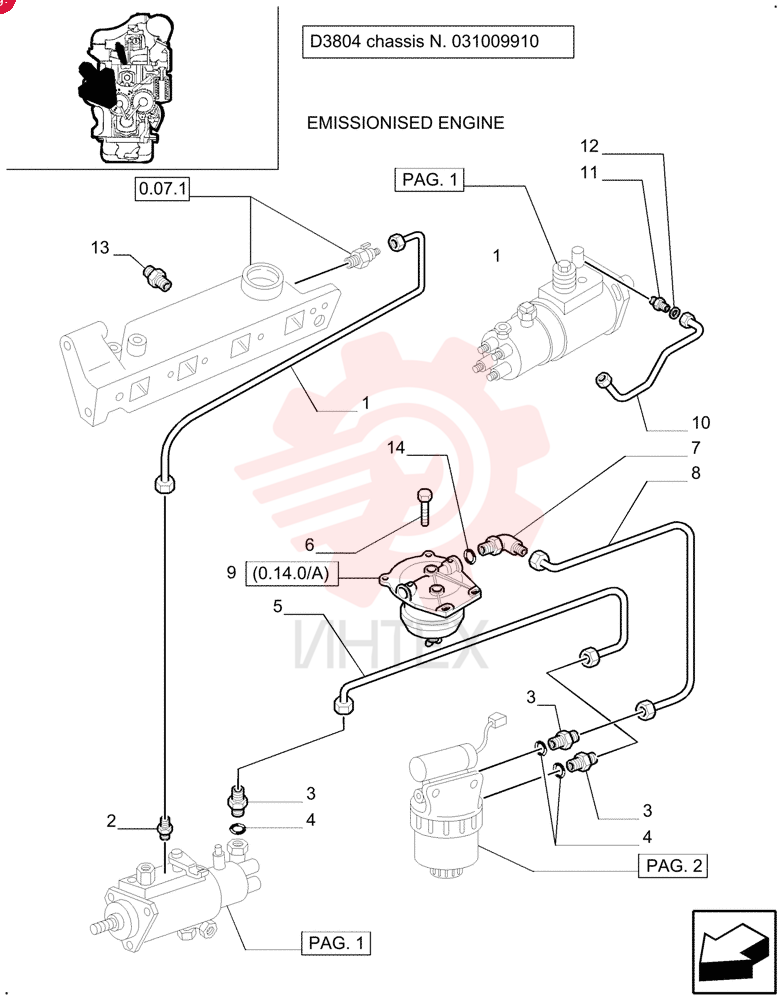

TUBE,4.75 mm OD

TUBE,4.75 mm OD

TUBE,4.75 mm OD

1 87801626

  • 87801626 - TUBE
  • 4.75 mm OD

2 87800970

  • 87800970 - FITTING

3 83947824

  • 83947824 - FITTING
  • 9/16"-24 x 1/2"-20 O-Ring

4 83904845

  • 83904845 - O-RING
  • 0.07" Thk x 0.426" ID
  • -13
  • Cl 7
  • 75 Duro

5 87801468

  • 87801468 - TUBE
  • 9 mm DIA x 149.5
  • 88 mm L

6 81868740

  • 81868740 - BOLT

7 83958605

  • 83958605 - BOLT

8 83951858

  • 83951858 - ELBOW
  • 9/16" - 24 x 1/2" - 20 ORB

9 87801467

  • 87801467 - TUBE
  • 8.05 mm OD x 206.5
  • 105 mm L

10 81871476

  • 81871476 - FILTER

11 87800909

  • 87800909 - TUBE
  • 4.8 mm OD x 155
  • 49 mm L

12 87801322

  • 87801322 - FITTING

13 11270060

  • 11270060 - SEALING WASHER
  • M10.2 x 13.4 x 1
  • Copper

14 390275S

  • 390275S - FITTING

15 50458

  • 50458 - O-RING
  • 0.426" ID x 0.566" OD x 0.07"
